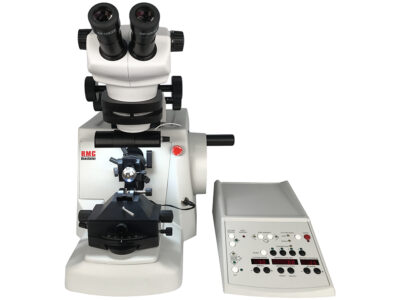

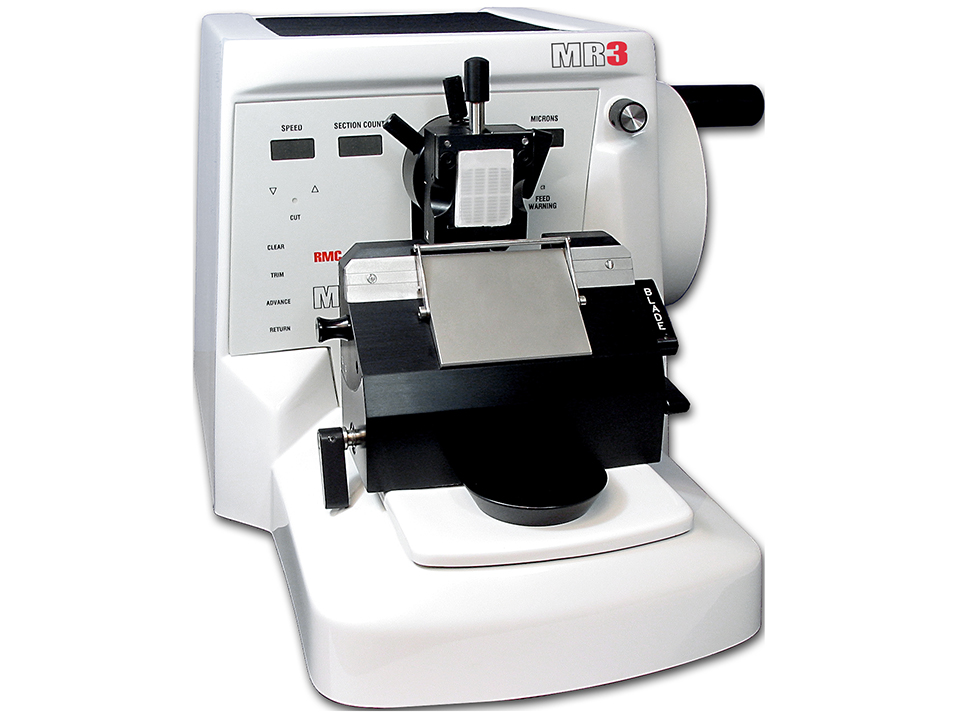

MR3 motorised rotary microtome

The RMC MR3 is a robust easy-to-use motorised rotary microtome with a section range of 0.5 to 60 microns ideal for a wide range of applications including: histology, material research and forensics.

    • Heavy base casting to reduce vibration
    • Vertical cutting stroke with solid cross roller bearing specimen carriage
    • Digital section counter display
    • Touch screen control panel with easy to clean membrane switches
    • Electronic feed with fast return
    • Separate trim control function with footswitch
    • Motorized cutting speed range 0-400mm/sec
    • Pre-set trim setting for fast block trimming
    • Removable waste tray

    Technical specifications:

    • Rapid trim function
    • Positive mechanical lock on handwheel
    • Specimen orientation
    • Specimen rotation
    • Digital section counter display on front panel
    • Section waste tray
    • Maximum specimen size: 55 x 50mm
    • Cutting stroke: 64mm
    • Retraction: 70 microns
    • Motorised feed: 28mm
    • Handwheel lock: positive lock at 12:00 o’clock or 6:00 o’clock position
    • knob on left side of microtome
    • Specimen Orientation: x and y axis with 8 × tilt plus rotation
    • Section thickness range: 0.5 to 60microns
    • Section thickness increments: 0.5 to 2 microns in 0.5 micron steps
    • 2 to 10 microns in 1-micron steps
    • 10 to 20 microns in 2-micron steps
    • 20 to 60 microns in 5-micron steps
    • Dimensions: H-279mm x W-273mm x L-457mm Weight: 24.3kg
