RMC ATUMtome for Array Tomography

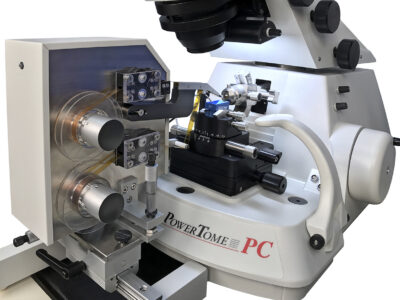

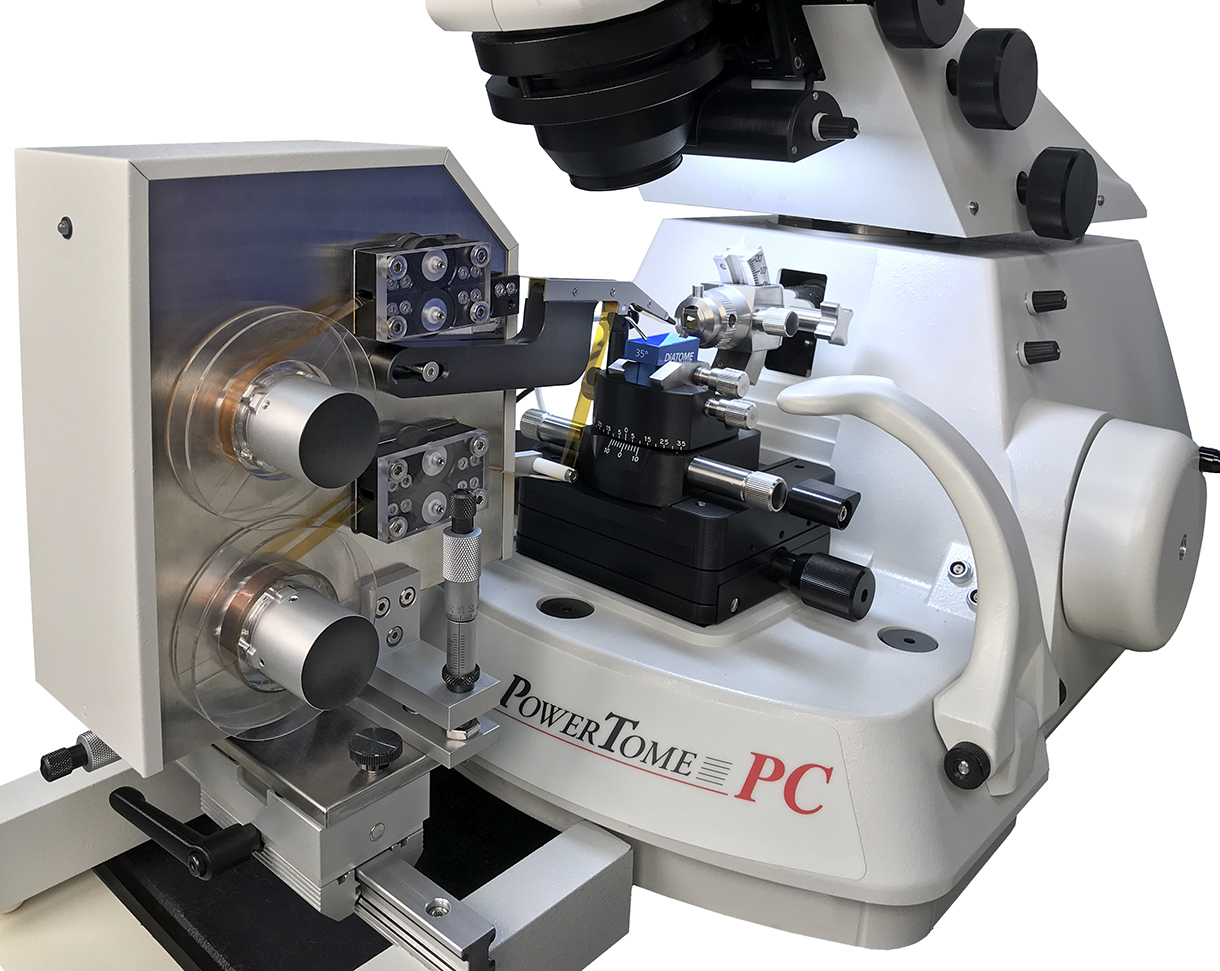

RMC ATUMtome is a unique ultramicrotome for fully automated collection of sections directly onto tape rolls and is a valuable tool for many other areas of research in biology, pathology and material sciences where three-dimensional image data of specimens is required. Originally developed at Harvard University in the lab of Jeff Lichtman for the collection of thousands of sections to reconstruct neuronal networks and pathways by array tomography.

The normally tedious process of collecting many serial sections is fully automated enabling ultra-thin sections with a thickness down to 30nm to be collected on 8mm wide Kapton tape for array tomography using SEM imaging and subsequent 3-D reconstruction.

Read about the advantages of ATUMtome in the Microscopy and Analysis article (Webster, P. et al 2015) M&A ATUMtome

  • Fully automated high vacuum carbon coater
  • PowerTome PTPCZ ultramicrotome with live video and computer control
  • ATUM continuous tape feed mechanism with PC control software
  • Air-activated anti-vibration table including
  • ATUM attachment interface with x-y-z fine control positioning of tape/section pick-up head
  • Silent air compressor for anti-vibration table
    Environmental chamber for prevent turbulent air movement
  • Anti-static device for charge elimination on diamond knife edge
  • Ergonomic laboratory chair
  • 4mm DiATOME diamond knife, 35 degree for room temperature ultra-thin sectioning (order separately)
  • Diamond knife boat water level control system
  • Wafer workstation for cutting and organising tape strips with sections
  • Start-up supply of Kapton tape
  • Easy upgrade to add high resolution sputter coating

ATUMtome

Working with ATUMtome

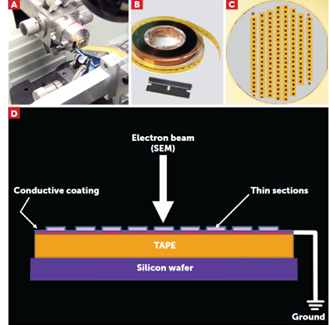

Section collection is carried out automatically using the ATUMtome (A). The tape with sections attached is taken from the spool and cut into small strips (B) and attached to a 4” silicon wafer (C). This shows how the strips of tape are mounted onto the silicon wafer, with metal TEM specimen grids positioned at the corners of the wafer. The grids act as markers for automated image collection (Hayworth, et al., 2014). The sections on the silicon wafer can be imaged using epifluorescent illumination (not shown), or with by SEM (D). Carbon coating lay below allows SE imaging, whilst for  BSE imaging carbon is deposited over the sections.

Hayworth, K.J., Morgan, J.L., Schalek, R., Berger, D.R., Hildebrand, D.G. & Lichtman, J.W. (2014). ImagingATUM ultrathin section libraries with WaferMapper: a multi-scale approach to EM reconstruction of neural circuits. Front Neural Circuits 8, 68.

RMCATUM308-15. Uncoated Kapton tape for use on RMC ATUM, 8mm wide by 15 metres (each)
RMCATUM308-30. Uncoated Kapton tape for use on RMC ATUM, 8mm wide by 30 metres (each)
10-008140. Micro-Tec silicon wafer, Ø4 inch/100mm, 525µm thickness (each)

ATUM continuous tape feed mechanism with PC control software
PowerTome PCZ ultramicrotome
Air-activated anti-vibration table including ATUM attachment interface with x-y-z fine control positioning of tape/section pick-up head
Silent compressor for anti-vibration table
Environmental chamber
Anti-static device
Ergonomic lab chair
4mm diamond knife, 35 degree for room temperature ultra-thin sectioning, mounted in large-cavity blue anodized holder
Water level control system
Wafer workstation
Start-up supply of Kapton tape
Four 4” diameter silicon wafers

Many current users are working with the ATUMtome for neuroscience research, but this is far from the only application. Research
into biological systems and cell organelles as well as new materials research are being imaged using this array tomography technique. The ATUMtome’s unique ability to collect hundreds to thousands of sections on a continuous tape opens the door for
use in many serial section applications, some of which are yet to be explored.

The system can be used in correlative microscopy applications involving, for example, light and scanning electron microscopy to identify regions of interest and map nanoparticles inside organs and tumors. It can also benefit users who want to image whole cells and correlate the 3D distribution of specific proteins within these cells. Stored sections can be immunolabled multiple times for examination under epifluorescence illumination.

As research continues to transition from 2D to 3D imaging, there is a growing requirement to increase efficiency in imaging thousands of sample sections. By addressing this need, as well as the need to retain samples for future analysis, the ATUMtome is an exciting tool to consider. This is especially so among scientists who have wanted to carry out 3D reconstruction but were held back because of the impractical effort it would take to handle the many sections required.

Electrical input

110 – 240 VAC 50/60 Hz, output: 255 watts

Shipping Specifications

PowerTome crate: 865mm x 560mm x 660mm , 54.5kg
ATUM/Accessories: 660mm x 660mm x 660mm, 45.5kg
 Computer: 660mm x 660mm x 305mm, 11.5kg
 Workstation: 355mm x 355mm x 355mm , 9.0kg
Environmental chamber: 1550mm x 205mm x 205mm, 15.5kg
Slide Rail: 1220mm x 100mm x 100mm, 1.8kg
Compressor: 430mm x 380mm x 380mm , 19.5kg
 Lab chair: 685mm x 685mm x 405mm, 18kg
Anti-vibration table: 1295mm x 1015mm x 940mm, 257.5kg
Total weight: 432kg
