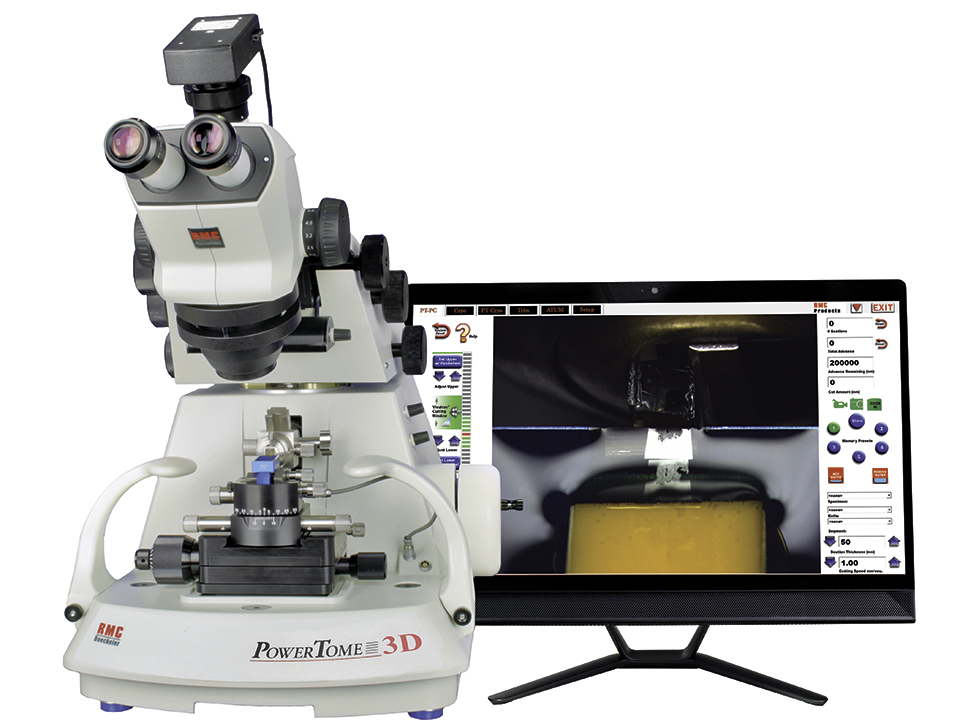

PowerTome 3D ultramicrotome

SKU: UMY-1004 Category:

PowerTome 3D features a full 1 mm of advance- permitting uninterrupted ultrathin sectioning to a depth of one millimeter. This is especially useful for 3D reconstruction work- array tomography and any situation where high amounts of trimming are involved – such as cryosectioning- using theultrathin feed. PT 3D has a high definition video package where the sectioning process is displayed in real-time at the centre of the computer monitor. The ultramicrotome is controlled by a hybrid system with a touch screen monitor plus a digital tactile controller.PowerTome 3D includes:• Computer with Windows operating system• Touch screen monitor/controller• Digital tactile controller• Specimen orientation mount- 12mm N-S advance• Knife Options:- Glass knives up to 12mm wide- Triangular tungsten carbide knives- Any commercial brand of diamond knives• Stereo microscope trinocular Zeiss Stemi 508 doc:- 8:1 zoom- 6.3x to 50x magnification- 10x WF (23mm) eyepieces- 35° viewing anglePower Supply (specify upon order):• 100/120/220/240V 50/60HZShipping:• PowerTome crate 840mm x 560mm x 635mm• Two accessory cartons:- 610mm x 610mm x 610mm- 610mm x 508mm x 305mm• Net weight: 89 kg• Gross weight: 110 kg• Universal transilluminating specimen holder & wrench• 7mm flat specimen block transilluminating holder• Round block specimen holder• Handrests• Wrenches• Wooden accessory box• Trimming block and post• Stage mounted air draft shield• Footswitch• Power cord• Interconnect cables• Dust cover• Fuses• Instruction manualSpecifications:• Specimen auto feed: 1 mm (1-000 μm; 1-000-000 nm)• Section thickness: 5nm to 15μm• Cutting speed: 0.1 to 100mm/sec in 0.1mm/sec increments• variable return speed over entire cutting speed range• Knife stage movement:- 50mm gross advance- 25mm E-W travel

£0.00
