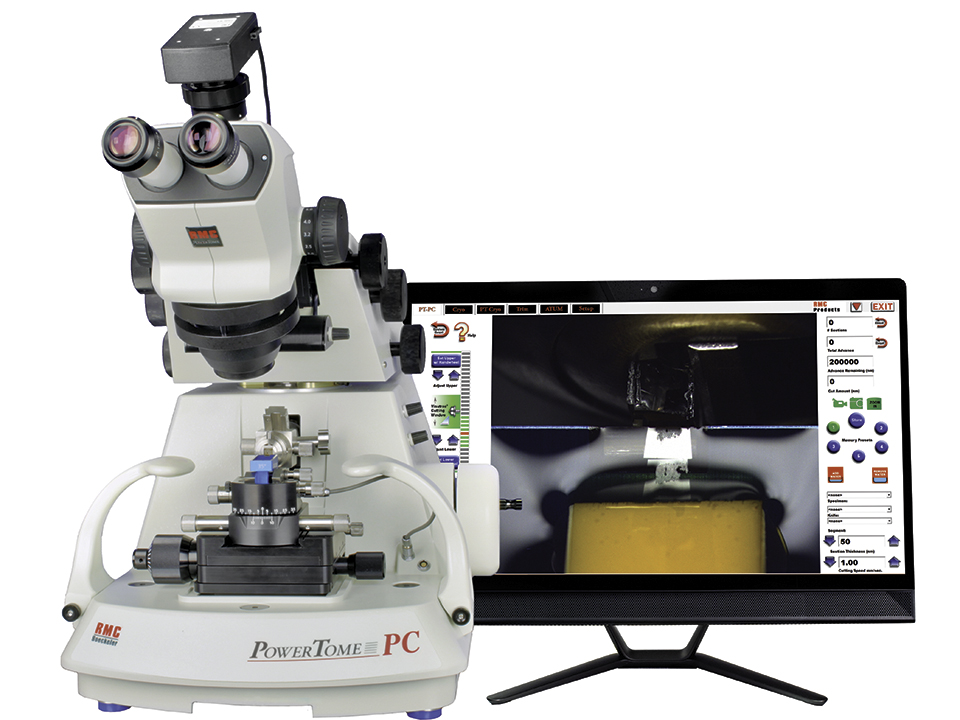

PowerTome PTPCZ ultramicrotome

SKU: UMY-1003

PowerTome PTPCZ features a high definition video package where thesectioning process is displayed in real-time at the center of the computermonitor. The ultramicrotome is controlled by a hybrid system with acomputer and touch screen monitor- plus a digital tactile controller.PowerTome PC includes:• Computer with Windows operating system• Touch screen monitor/controller• Digital tactile controller• Specimen orientation mount• Universal transilluminating specimen holder & wrench• 7mm flat specimen block transilluminating holder• Round block specimen holder• Handrests• Wrenches• Wooden accessory box• Trimming block and post• Stage mounted air draft shield• Footswitch• Power cord• Interconnect cables• Dust cover• Fuses• Instruction manualSpecifications:• Section thickness: 5nm to 15μm• Cutting speed: 0.1 to 100mm/sec in 0.1mm/sec increments• variable return speed over entire cutting speed range• Specimen auto feed: 200μm• Knife stage movement:- 50mm gross advance- 25mm E-W travel- 12mm N-S advance• Knife Options:- Glass knives up to 12mm wide- Triangular tungsten carbide knives• Stereo microscope trinocular Zeiss Stemi 508 doc:- 8:1 zoom- 6.3x to 50x magnification- 10x WF (23mm) eyepieces- 35° viewing anglePower Supply (specify upon order):• 100/120/220/240V 50/60HZShipping:• PowerTome crate 840mm x 560mm x 635mm• Two accessory cartons:- 610mm x 610mm x 610mm- 610mm x 508mm x 305mm• Net weight: 89 kg• Gross weight: 110 kg.
