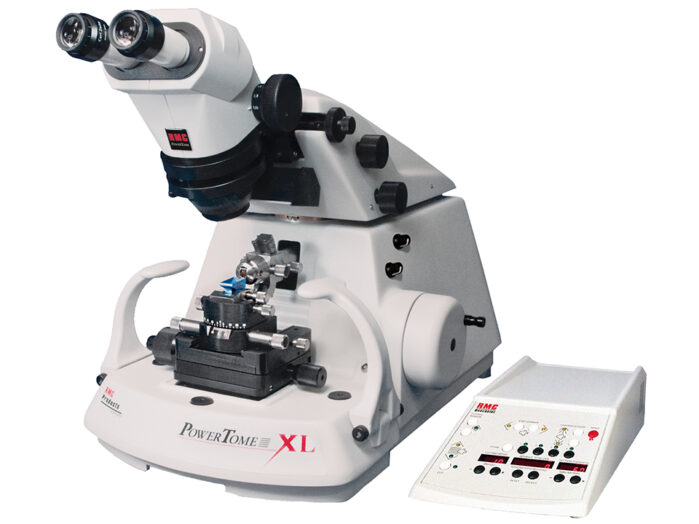

PowerTome XL ultramicrotome

SKU: UMY-1001 Category:

PowerTome XL includes:• PowerTome ultramicrotome• Round block specimen holder• 7mm flat specimen block transilluminating holder• Universal transilluminating specimen holder & wrench• Specimen orientation mount• Digital tactile controller• Handrests• Wrenches• Wooden accessory box• Trimming block and post• Stage mounted air draft shield• Footswitch• Power cord• Dust cover• Fuses• Interconnect cables• Instruction manualSpecifications:• Section thickness: 5nm to 10μm• Cutting speed: 0.1 to 100mm/sec in 0.1mm/sec increments• variable return speed over entire cutting speed range• Specimen auto feed: 200μm• Knife stage movement:- 50mm gross advance- 25mm E-W travel- 12mm N-S advance• Knives:- Glass knives up to 12mm wide- Triangular tungsten carbide knives- Any commercial brand of diamond knives• Stereo microscope binocular Zeiss Stemi 508:- 8:1 zoom- 6.3x to 50x magnification- 10x WF (23mm) eyepieces- 35° viewing anglePower Supply (specify upon order):• 100/120/220/240V 50/60HZShipping:• PowerTome crate 840mm x 560mm x 635mm• One accessory carton- 610mm x 610mm x 610mm• Net weight: 33 kg• Gross weight: 74 kgNote: Image shows UMY-1001 attached to ultramicrotome (order separately)
