Byonoy Absorbance Microplate Reader

SKU: ABSMHA01 Category: Tag:

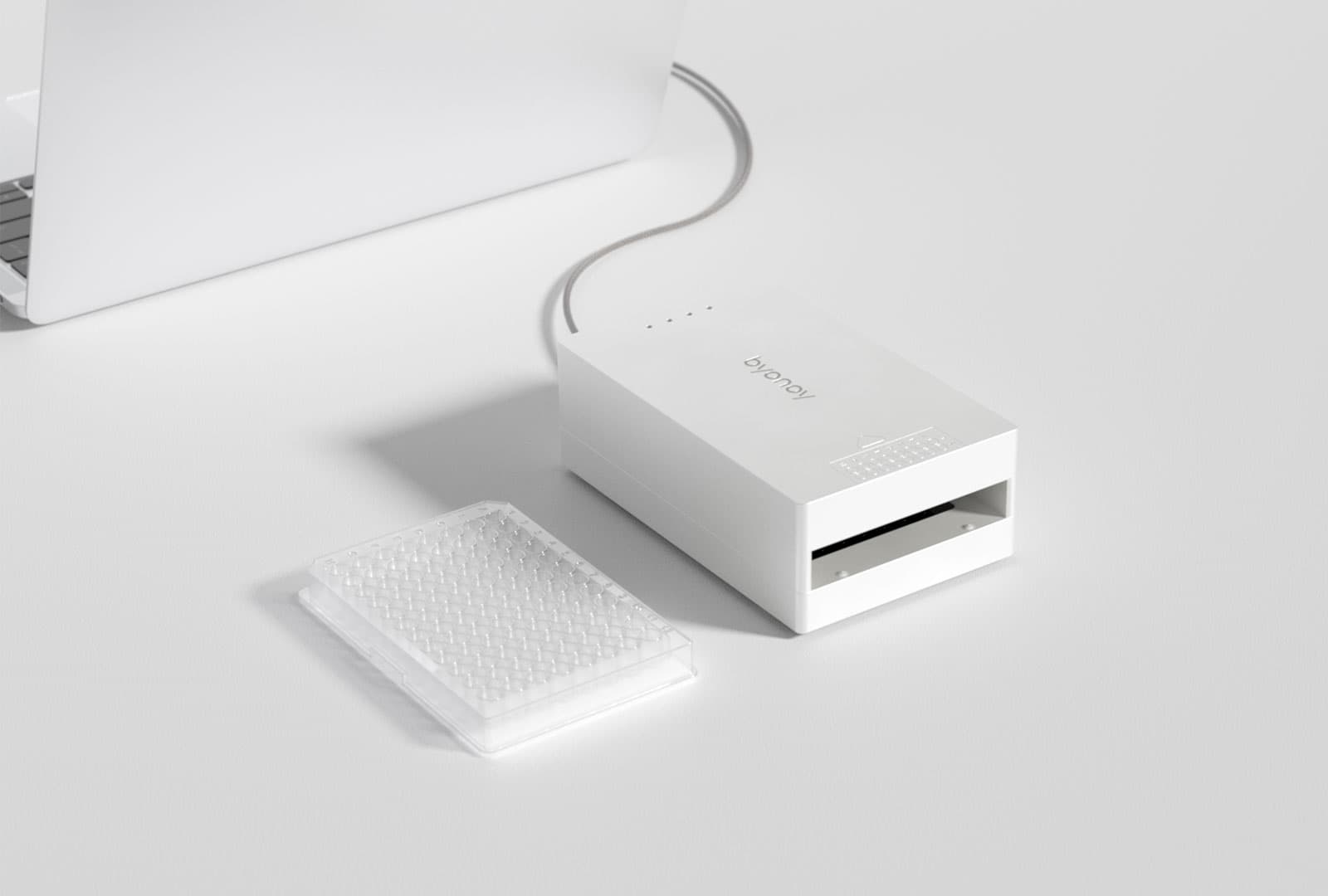

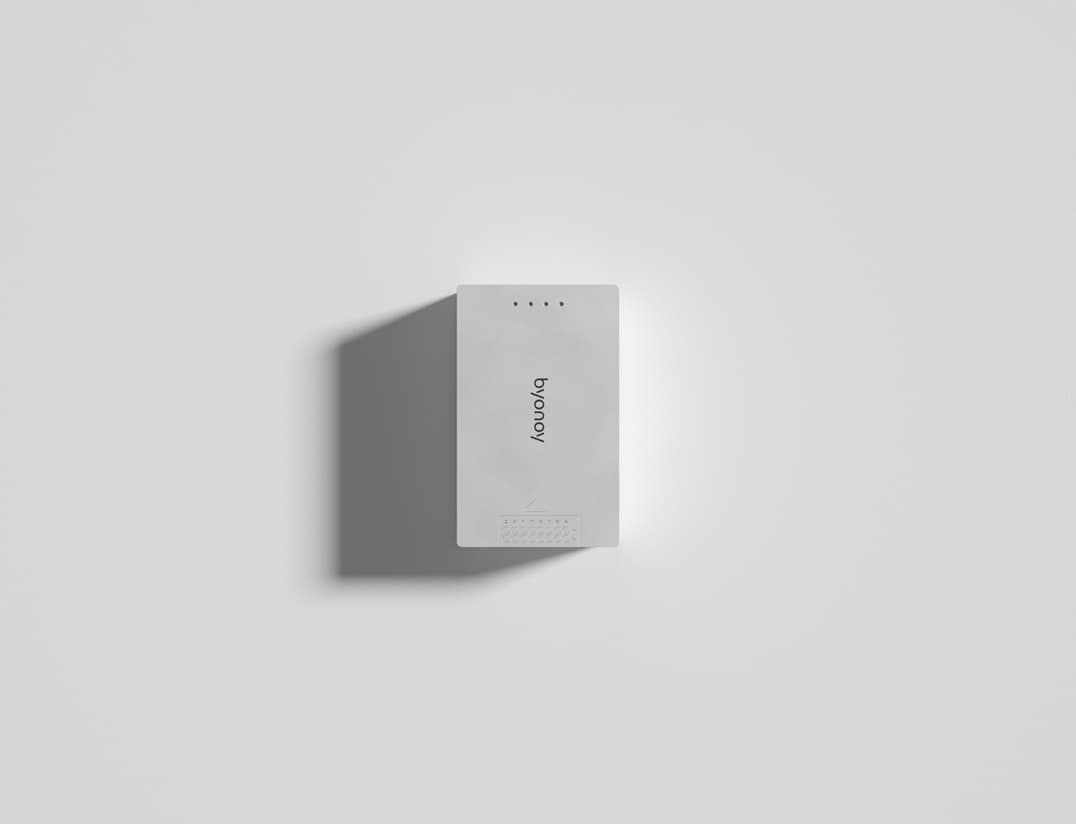

Byonoy Absorbance 96

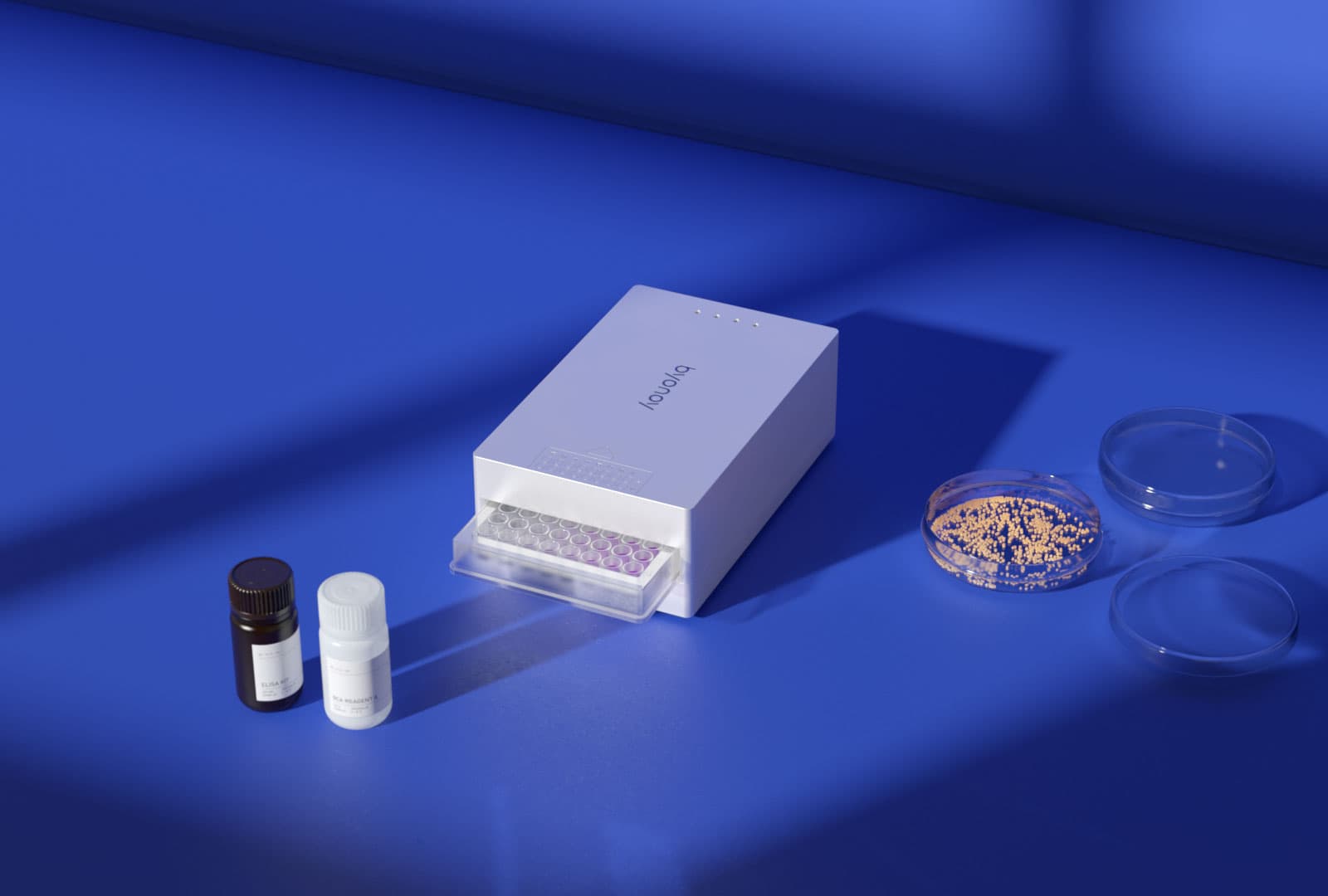

The world’s most compact microplate reader, providing high quality data at an affordable price

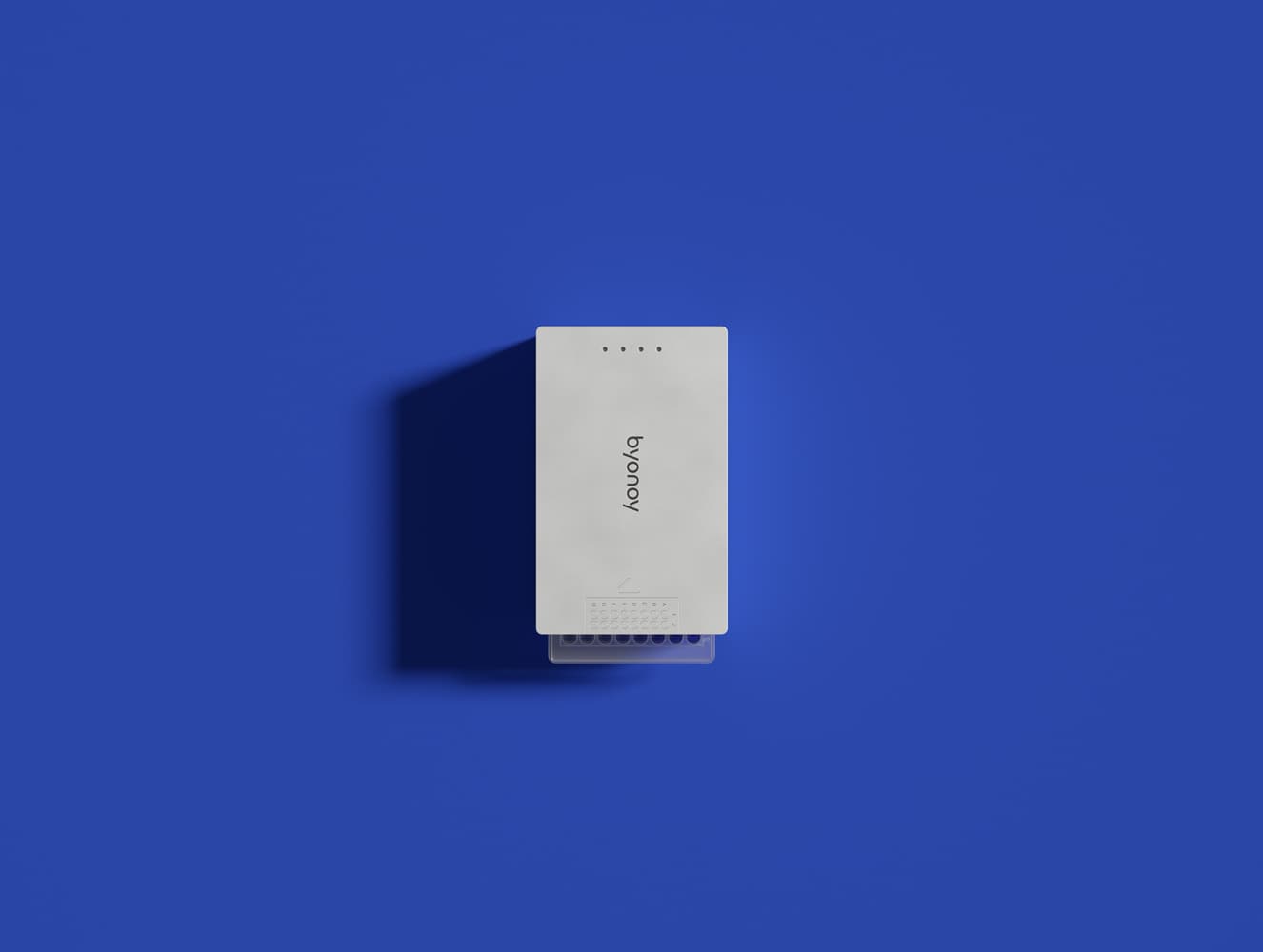

Portable design

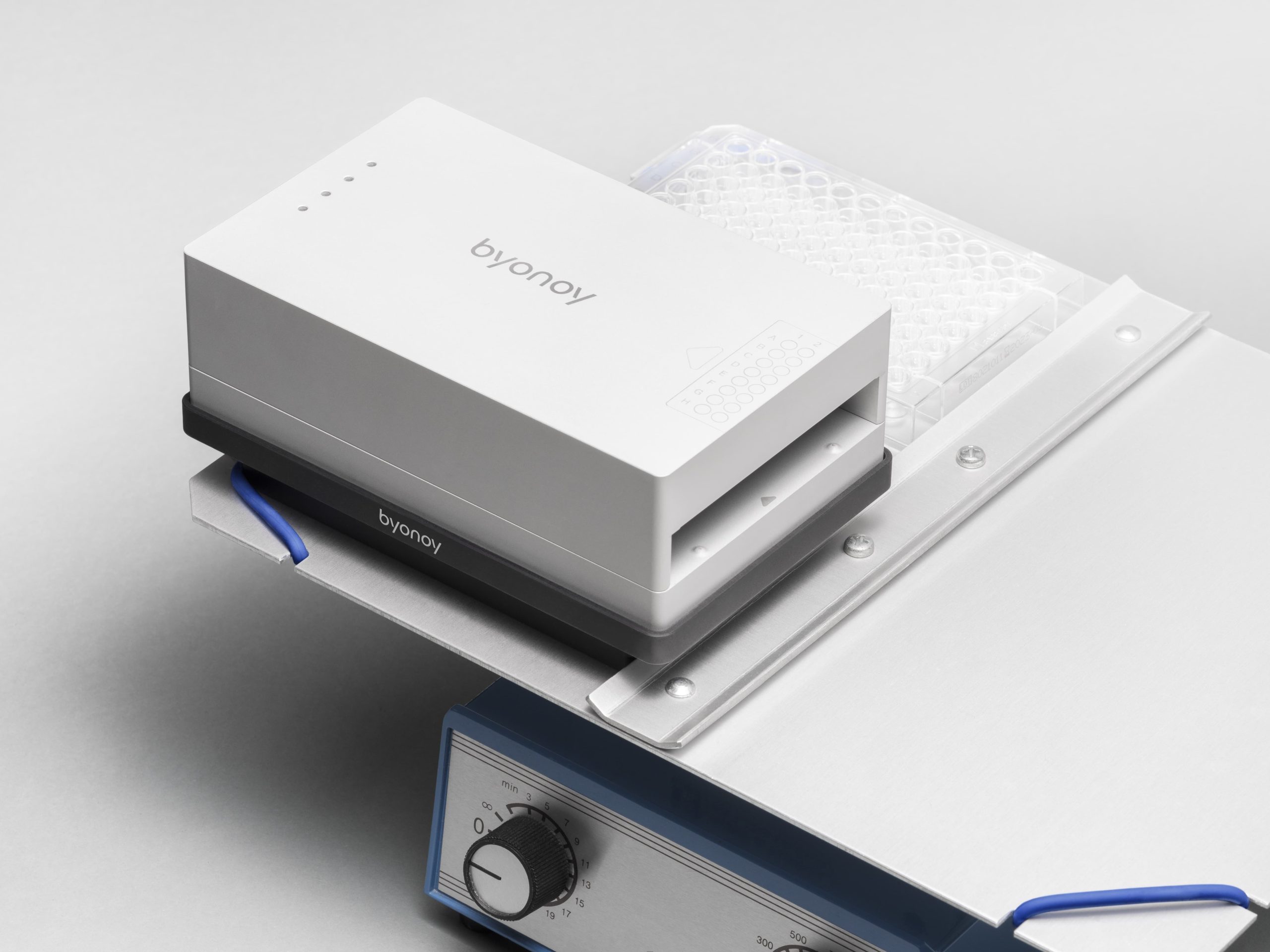

15.4 x 9.6 cm footprint (the same as an A6 postcard) and only 900g weight, allows the Absorbance 96 to be easily moved around the lab, stored or even used inside a workstation where space is at a premium

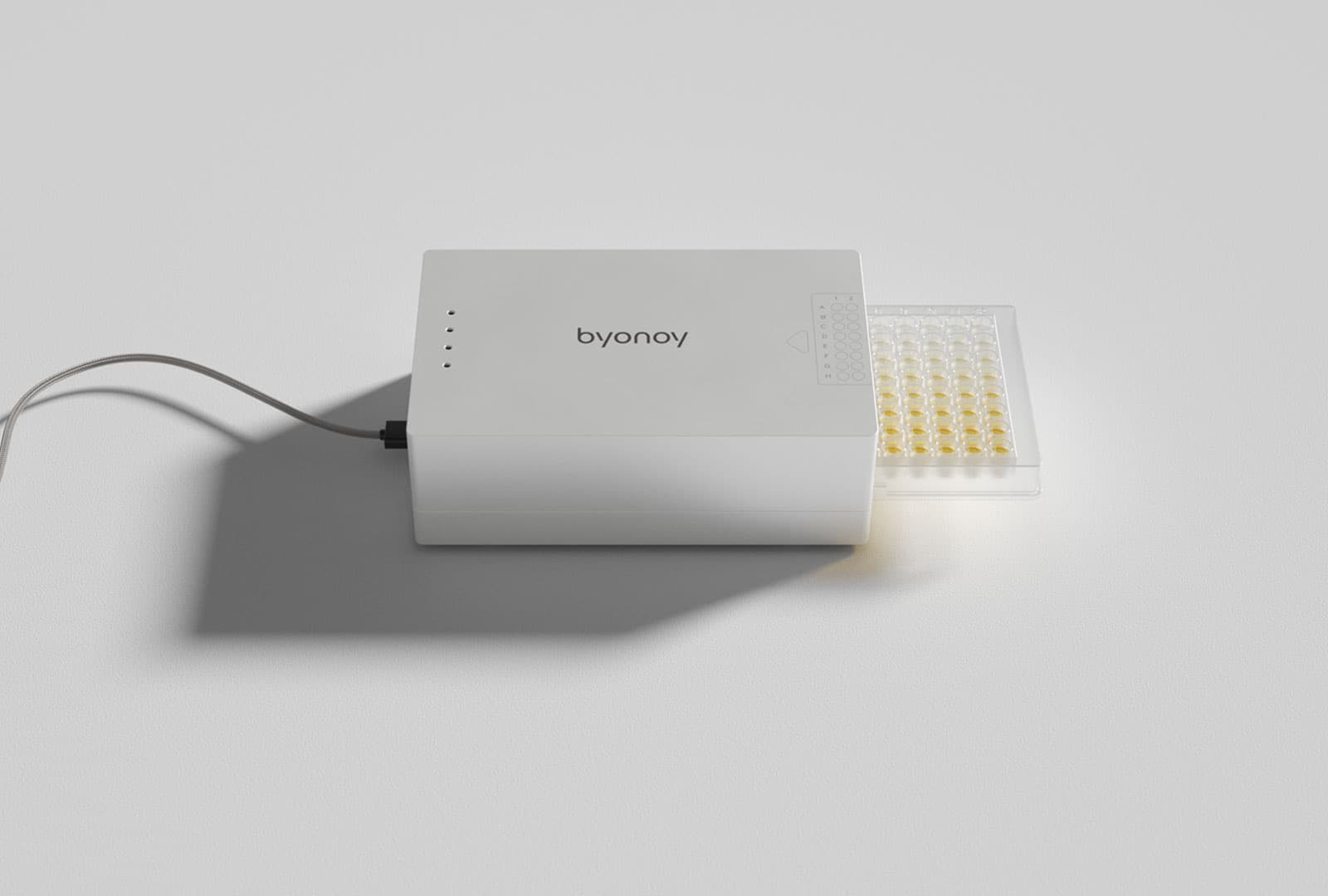

Fast measurements
96 individual detectors allow a whole 96 well plate to be read in as little as 3 seconds

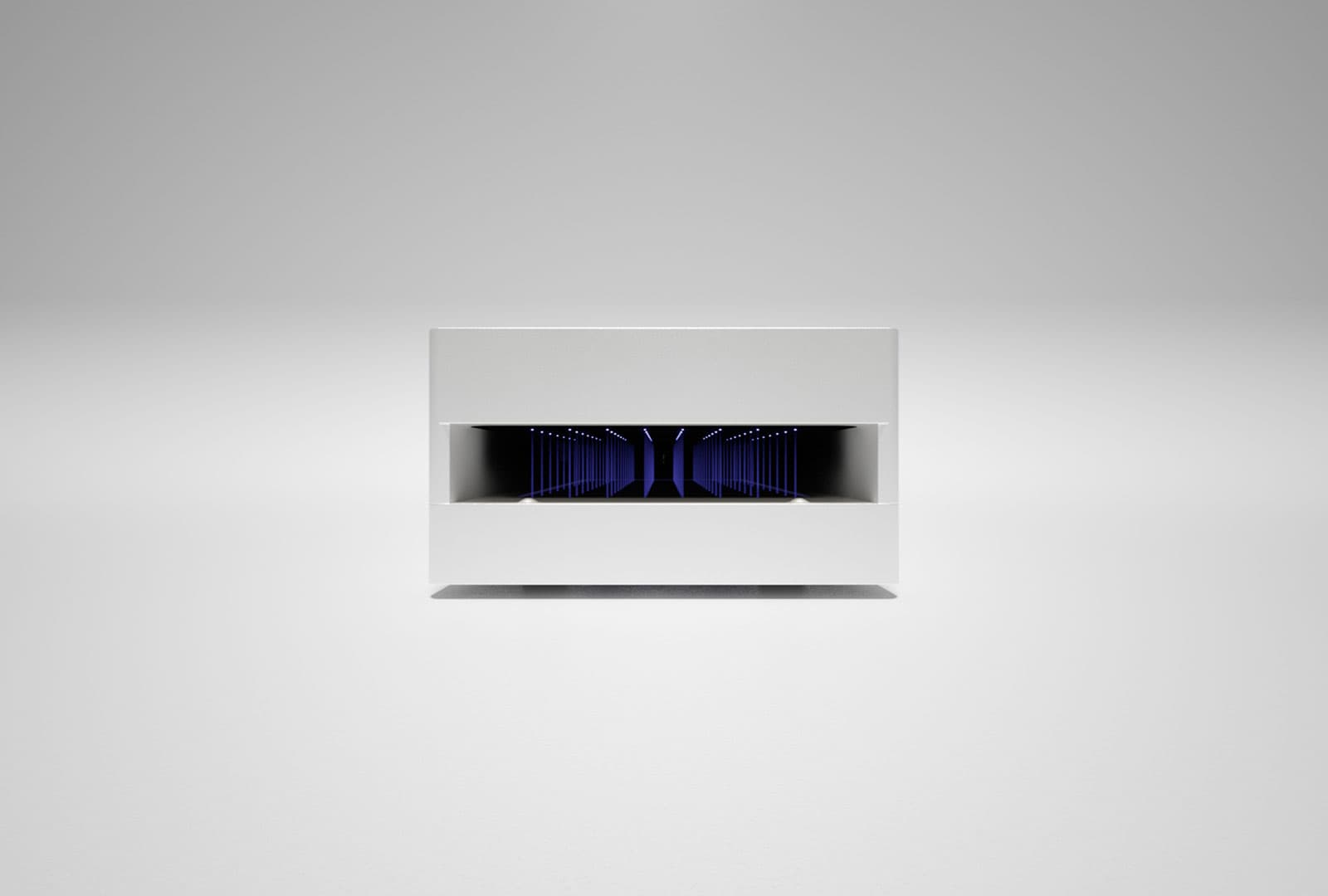

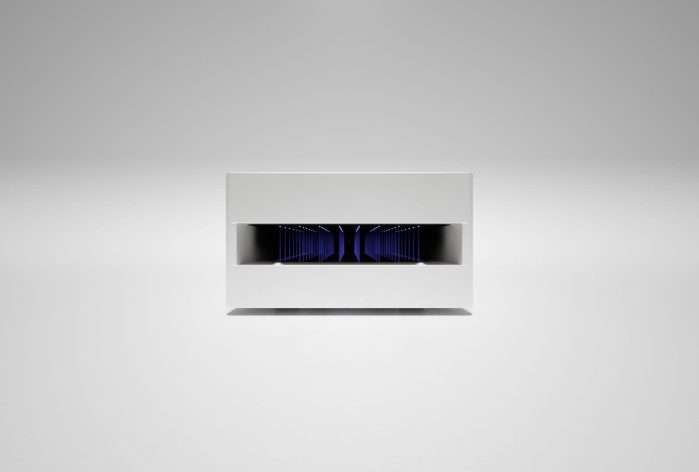

Solid state design

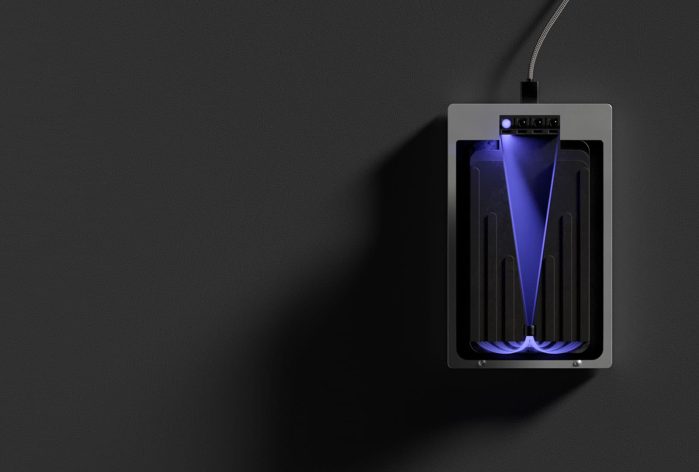

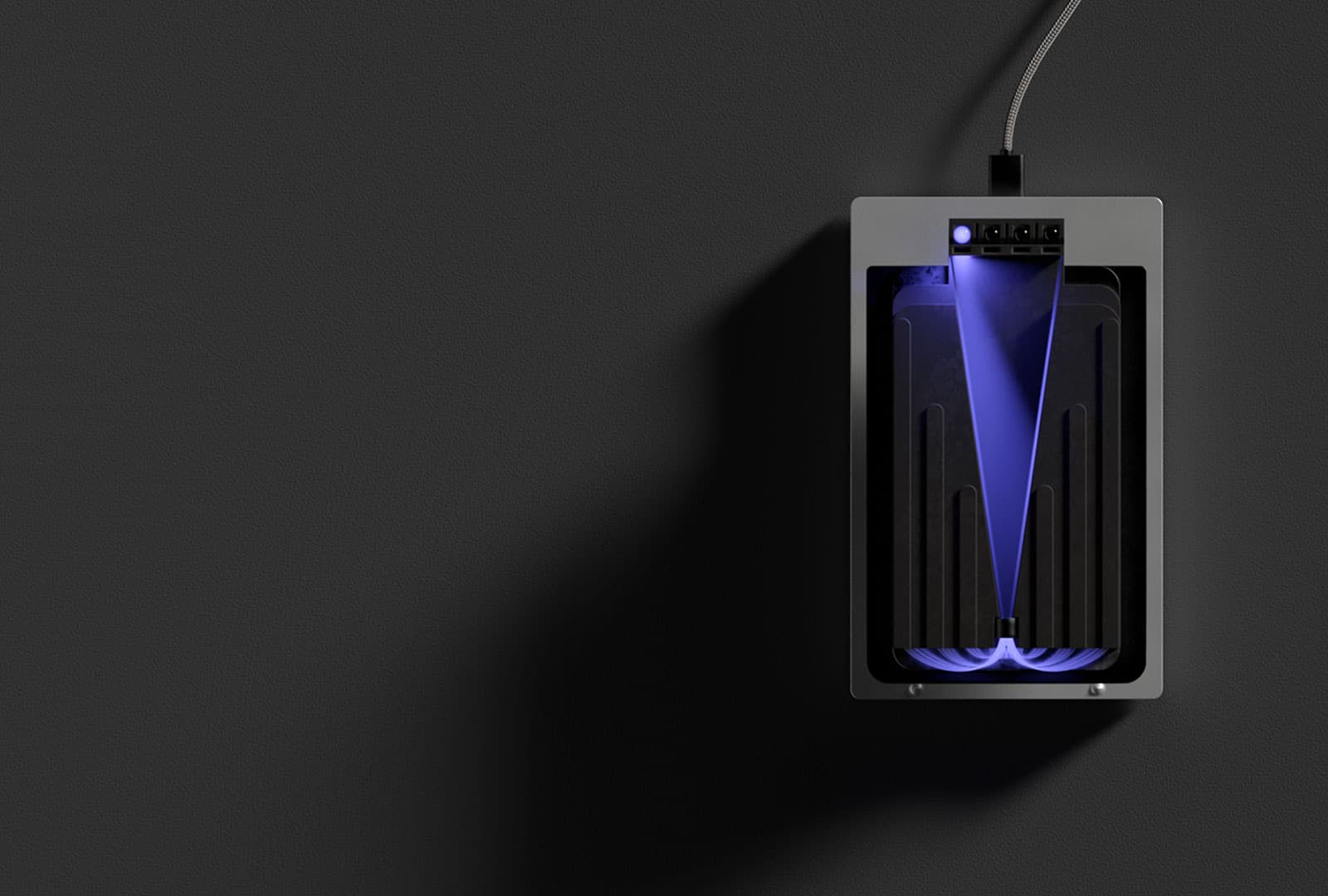

The first microplate reader to include 96 individual detection units together with long lasting LED light sources. Innovative solid-state design with no moving parts, removes the need for routine maintenance and ensures consistent data quality

USB powered
The Absorbance 96 has no motors and uses low energy LEDs, so is powered by the same USB cable that connects it to your computer

Intuitive software
Running on either PC or Mac, the included software provides both qualitative and quantitative analysis capabilities. Choose between endpoint or kinetic measurements. Easily export data in PDF or .CSV formats

Flexible
Choose 4 wavelengths between 400 – 1000nm to cover your assay needs, including ELISA, MTT, 0D600 or colorimetric protein assays

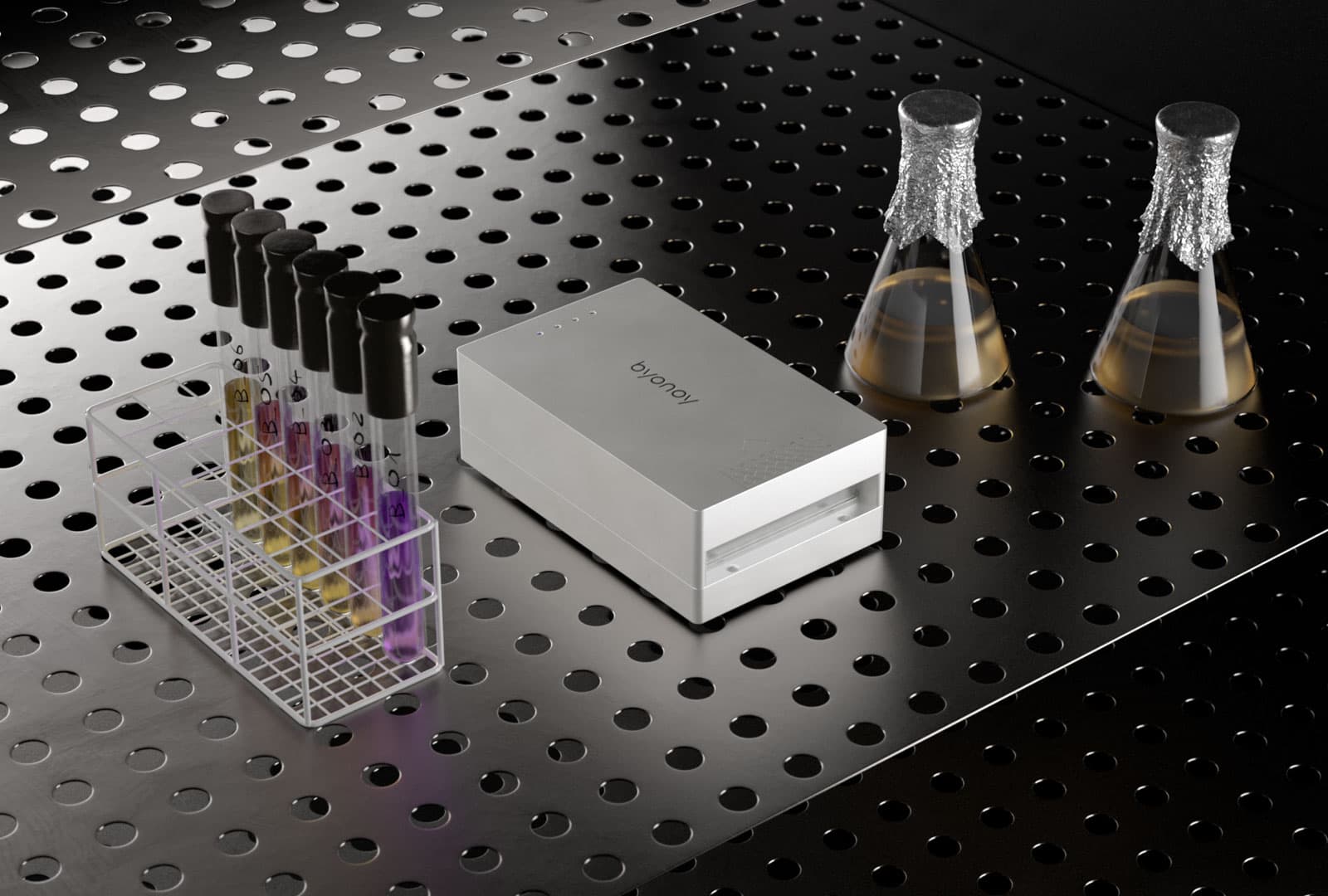

Built to last
Durable aluminium case, high quality components, engineered and produced in Germany

Add to quote
Measurement Method Absorbance
Light Source 4 LEDs
Wavelength Selection 450,492, 562 and 620 nm / 405, 450, 540 and 630 nm / 492, 562, 605 and 650 nm. Other filter combinations between 400 – 650 nm available
Detection 96 Photodiodes
Measurement Range 0 – 4.0 OD
Resolution 0.001 OD
Accuracy 405 nm: ≤1.5% + 0.010 OD (0 – 2.0 OD) / 450 nm: ≤1.0% + 0.010 OD (0 – 2.0 OD), ≤1.5% + 0.010 OD (2.0 – 3.0 OD)
Reproducibility 405 nm: ≤0.1% + 0.005 OD (0 – 2.0 OD) / 450 nm: ≤0.1% + 0.005 OD (0 – 3.0 OD)
Linearity 405 nm: ≤1.5% (0 – 2.0 OD) / 450 nm: ≤1.0% (0 – 2.0 OD), ≤1.5% (2.0 – 3.0 OD)
Connection to Computer USB 2 with 5VDC and max 0.5A
Dimensions 55 x 96 x 154 mm (H x W x D)
Weight < 1kg

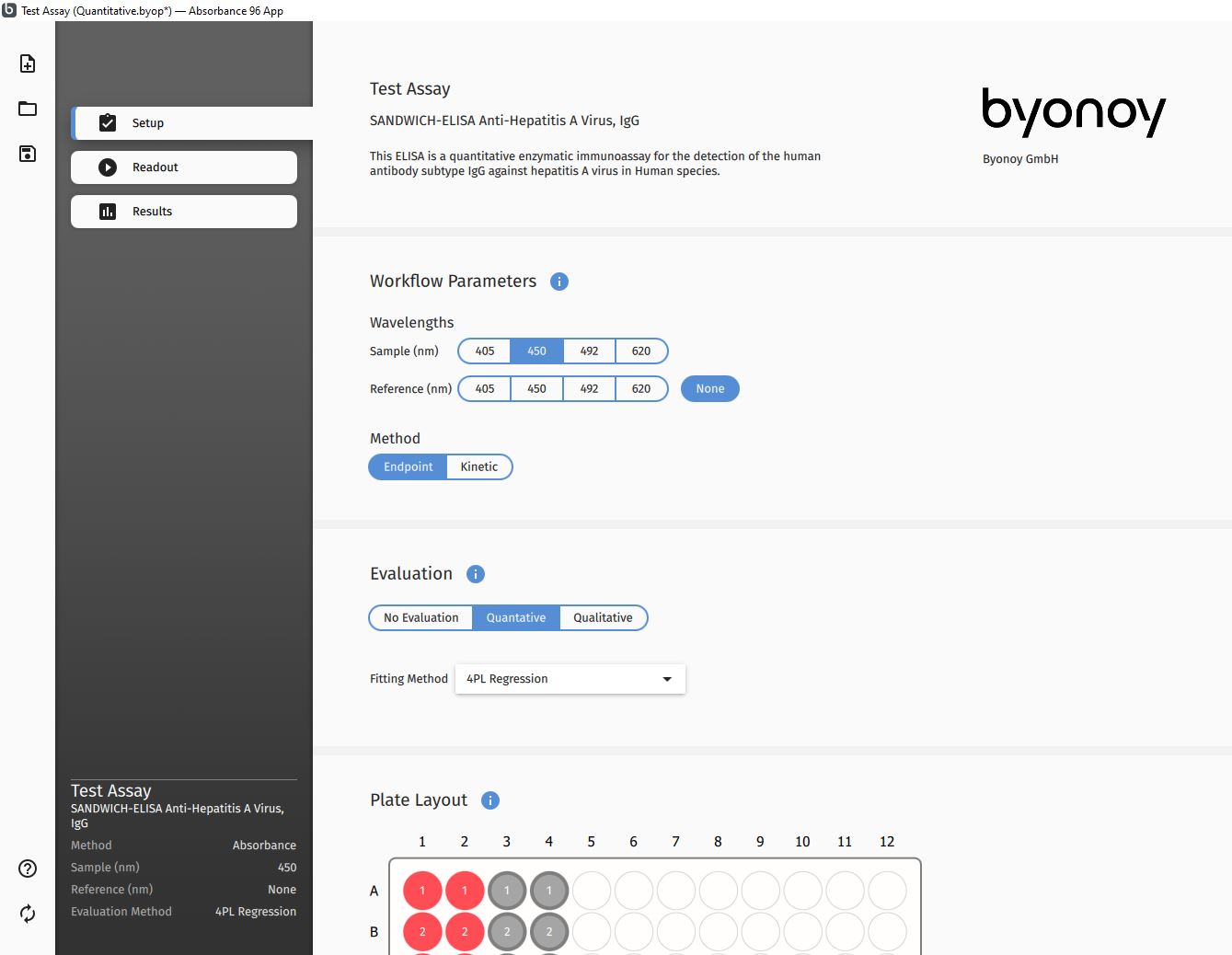

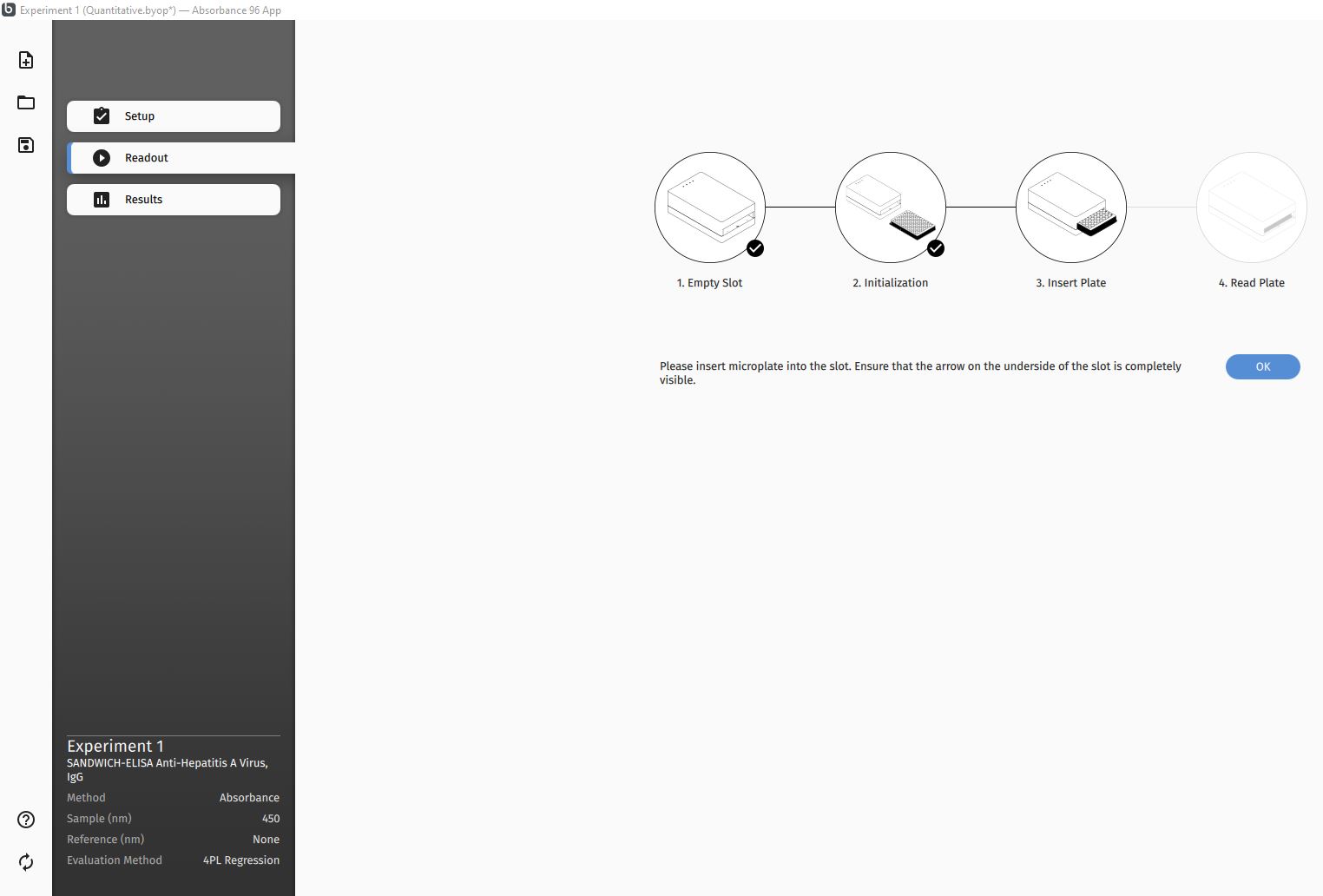

The Absorbance 96 App is as flexible as the reader itself. It can be used on multiple devices and supports Microsoft Windows as well as macOS. With plug-and-play technology, simply connect the reader and start your assay.

The Absorbance 96 App can be used on a desktop PC in your lab or on your notebook or even on windows tablets. Regular updates bring new features and enhancements, so the user is always up to speed. There are no license limitations and updates are free of charge.

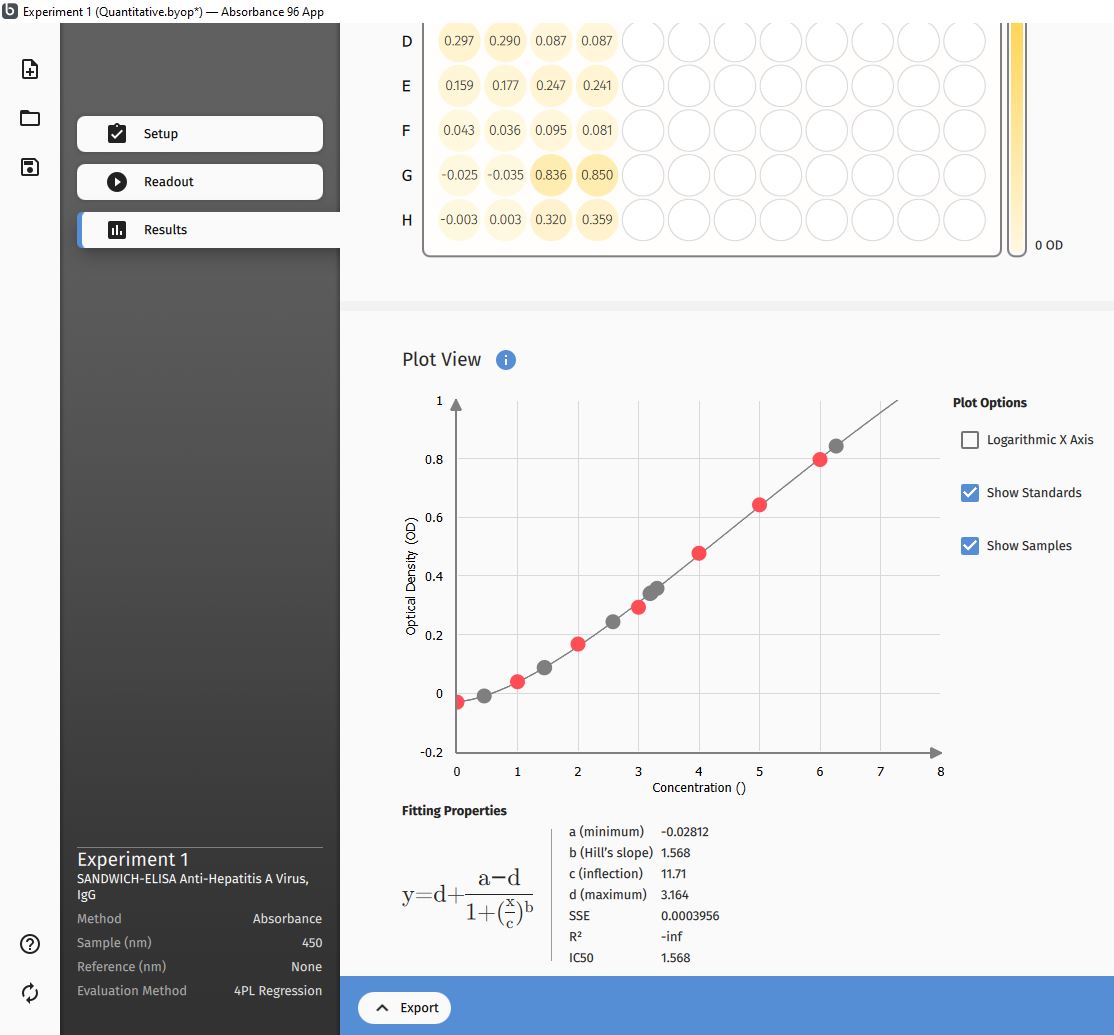

The App enables to intuitively conduct advanced endpoint and kinetic assays. Moving forward from parameter and plate definition to the readout process follows a logical workflow.

Different kinds of quantitative and qualitative evaluation methods are available as well as advanced data analysis. You can easily save and load protocol files and export the results in PDF or CSV.

ELISA Demo
