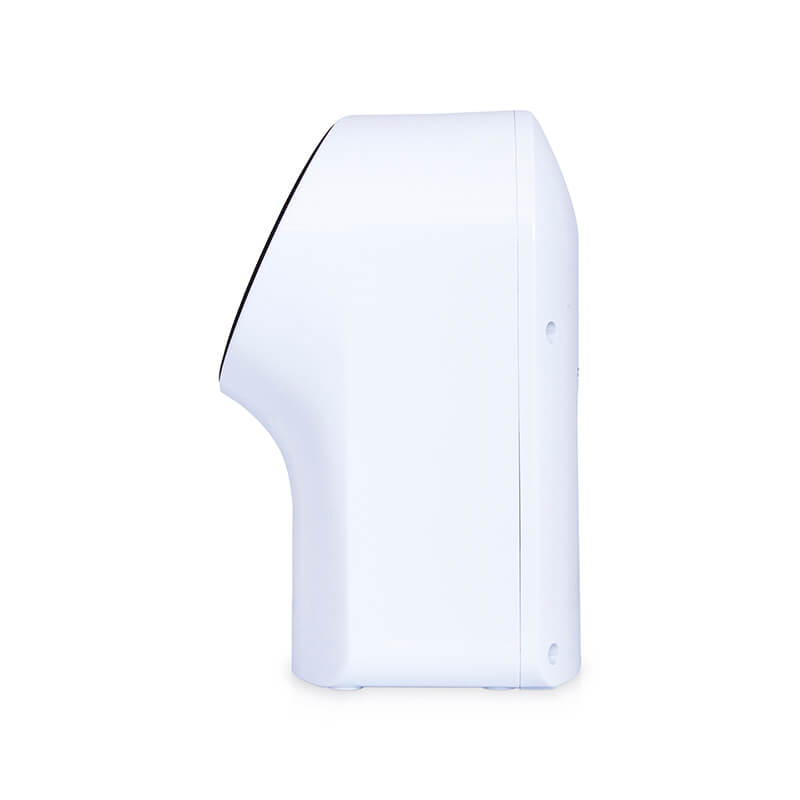

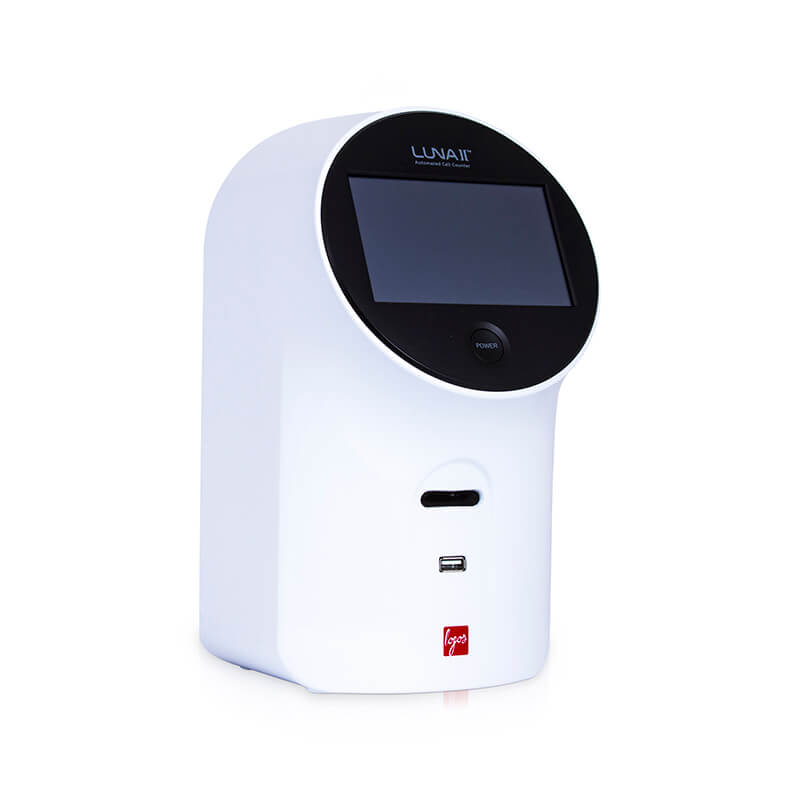

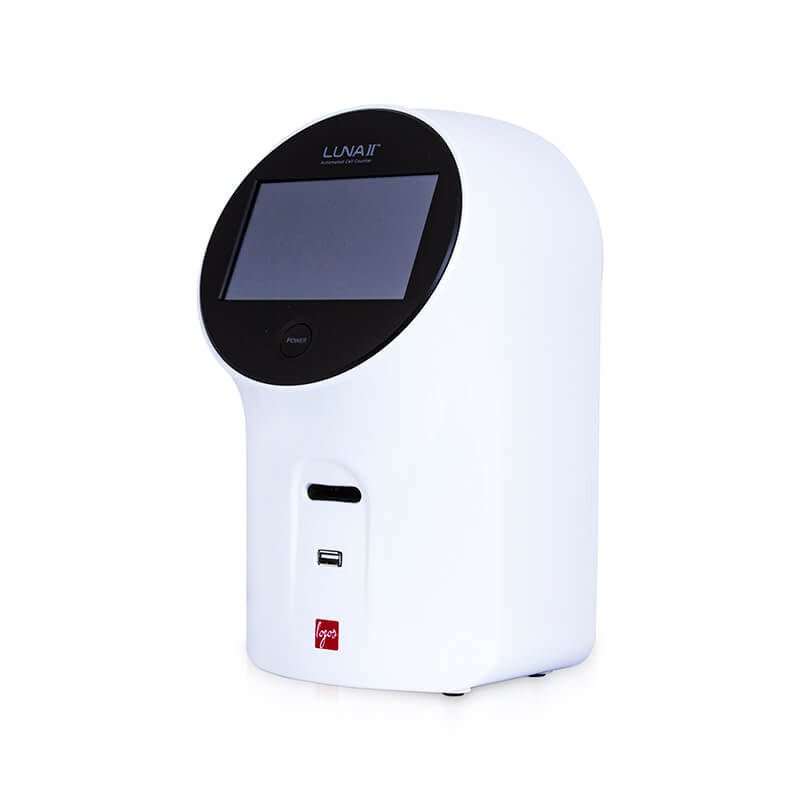

Luna- II Automated Cell Counter

The Logos Biosystems Luna II is a compact automated cell counter with reusable slide option

Features & Benefits

Affordable Running Costs
Low cost disposable slides or use the optional Luna reusable slide to further reduce ongoing costs as well as save on plastic waste

Accurate and Reliable Data
Large counting volume of 0.5 microlitres (equivalent to 5 large haemocytometer squares) provides count and viability data you can rely upon

Extensive Cell Information
Histogram with cell size gating and cluster map, provide a clearer picture of your cell population

Advanced Declustering
Sophisticated declustering algorithms provide accurate counts for even clumpy cell types

Easy To Use
Intuitive colour touchscreen interface with no need for special training

Flexible Data Handling
Export count, image or report data for offline viewing or sharing

£0.00

Clear

Instrument Control – Built-in colour touchscreen

Cell Size Range – 3-60 µM, (8-30 µM Optimal)

Cell Concentration Range – 5 x 10^4 – 1 x 10^7 cells per ml

Counting Time – < 10 seconds (manual focus) or < 15 seconds (autofocus)

Dimensions (W × D × H) – 16 × 18 × 28 cm (6.3 × 7 × 11 in.)

Weight – 1.6 kg (3.5 lbs.) without power cord and AC adaptor

Connectivity – Three USB-A ports

Data Export Formats – CSV, TIFF and PDF

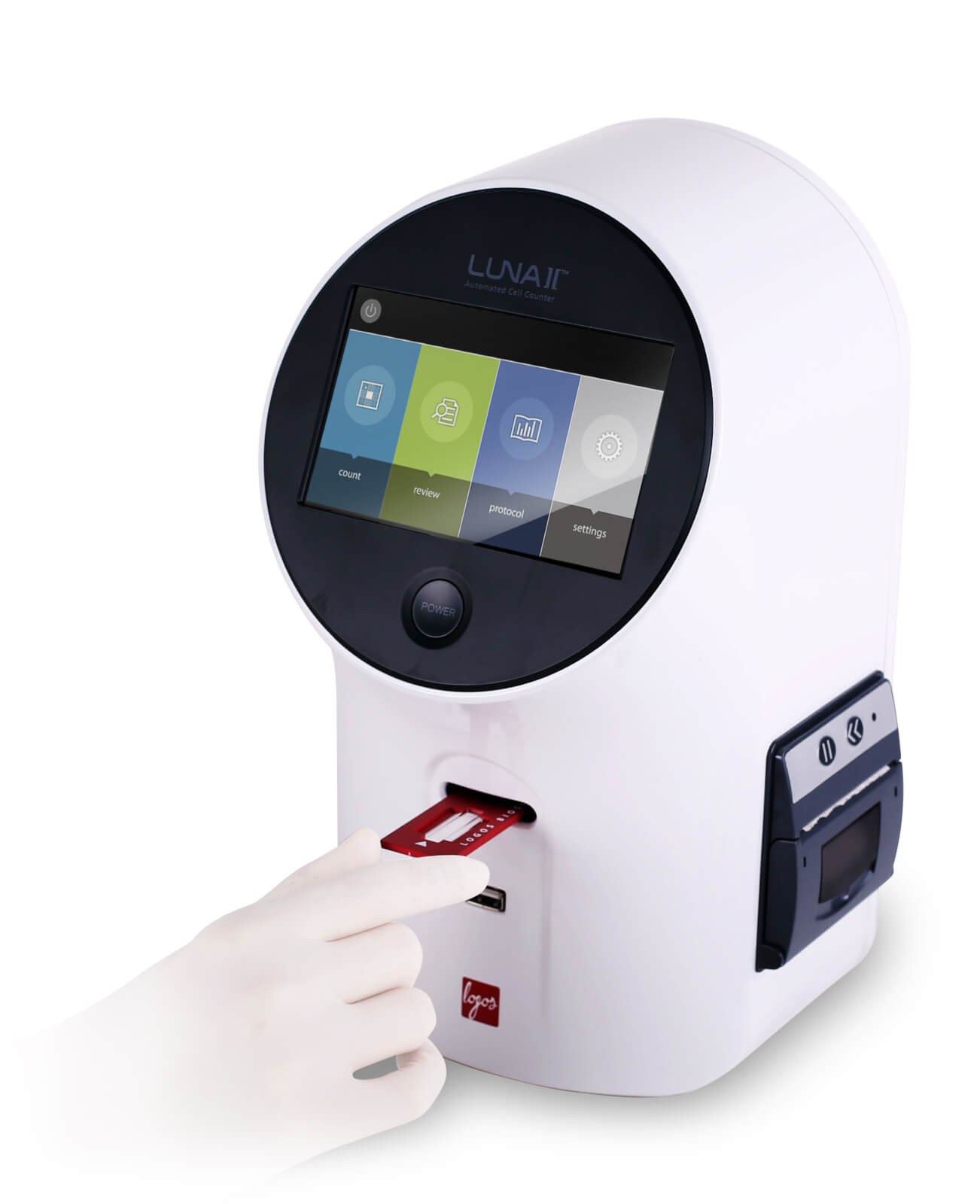

  • Optional reusable slide
  • Save money and the environment
  • Proven technology
  • Data you can rely upon
  • Autofocus
  • Remove user to user variation
  • Compact standalone design
  • Fits into crowded cell culture labs

Hardware Features

  • Liquid lens autofocus with no mechanically moving parts or servicing required
  • High resolution 5MP camera and optimised LED illumination
  • 3 x USB ports for data export
  • L40001 model includes an integrated thermal printer for hard copies of data

Software Features

  • Optimise and save protocols for different cell types
  • Digital zoom for a clearer view of your cells
  • Tag function highlights live and dead cells allowing you to assess count accuracy and optimise settings
  • Histogram with cell size gating provides cell size information and allows you to exclude populations of cells based on their size
  • Cluster map shows the proportion of cells in different clump sizes
  • Review and reanalyse data on-board

Data Handling

  • On-board storage of the last 1,000 counts with export via USB drive in CSV format for ExcelSave images and reports to USB drive if required
  • Raw and Tagged TIFF images
  • Comprehensive PDF reports with count and viability data, histograms, cluster maps and images
  • Printed data for your lab-notebook via integrated thermal printer in L40001 model

Applications

  • Count mammalian cells stained with trypan blue or erythrosin b for viability data
  • Count unstained cells for total cell count data
  • Count beads, insect cells and micro-algae
