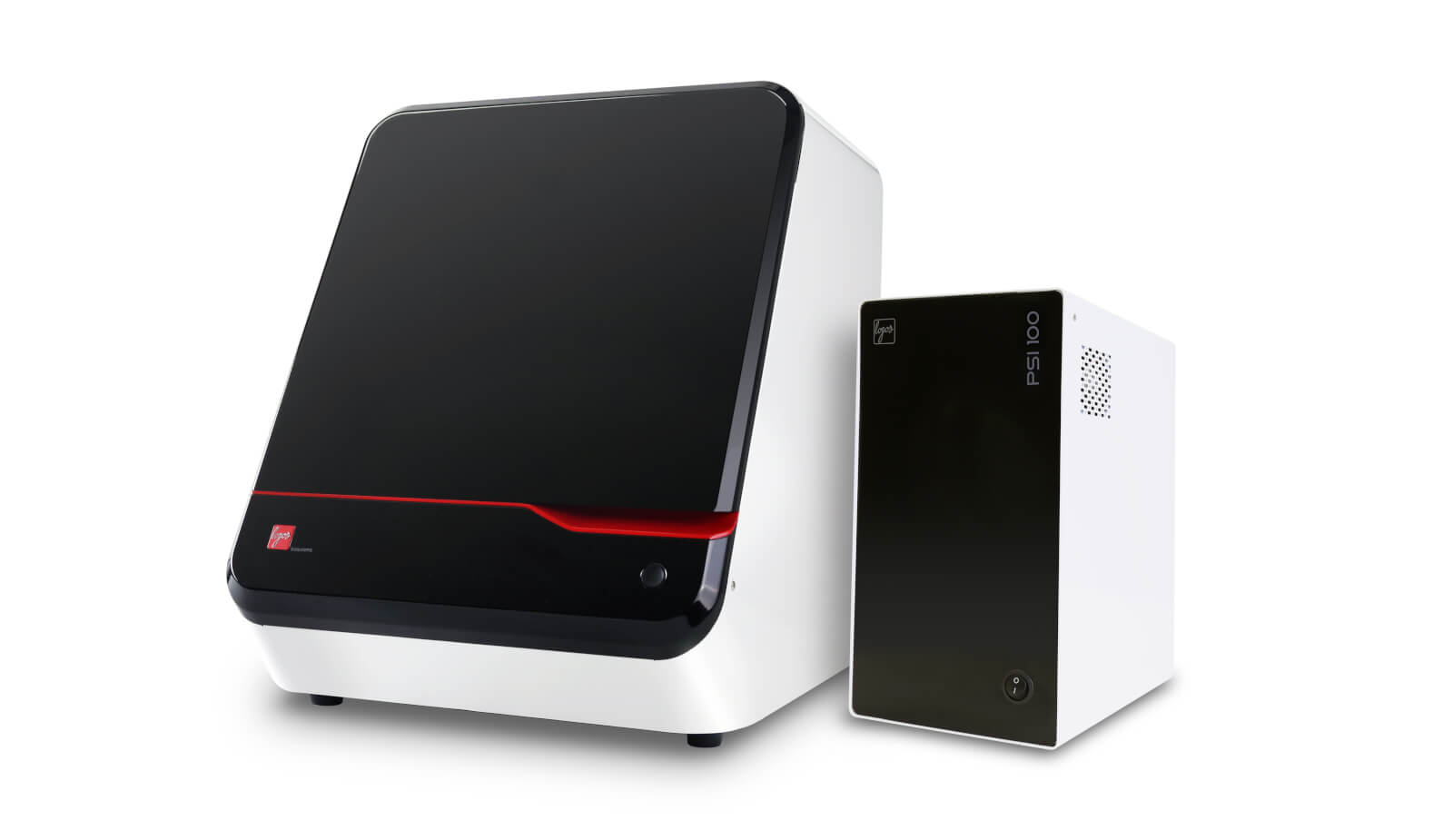

CELENA® X High Content Imaging System

High content digital imaging system

The Logos Biosystems Celena X provides a flexible and powerful solution to high-content imaging and subsequent analysis

Automation

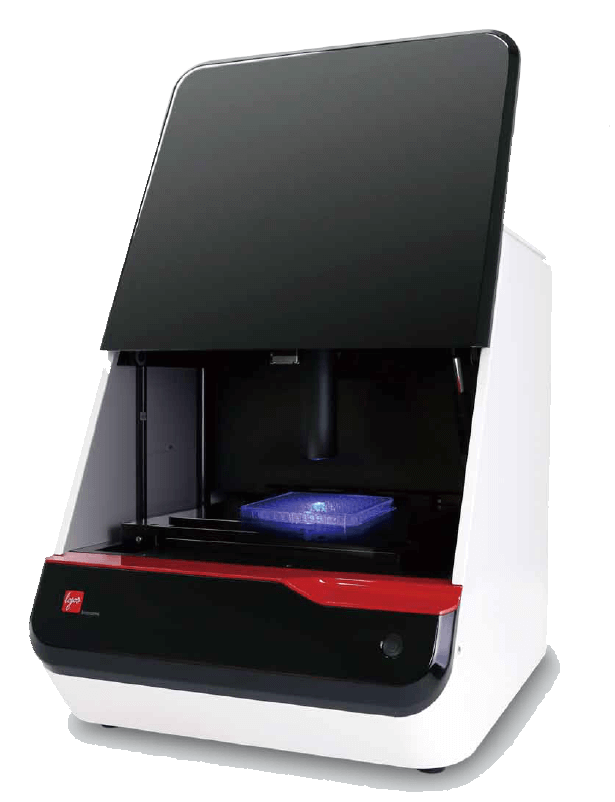

A fully automated imaging platform provides walk away convenience and assay flexibility. Motorised X,Y,Z stage, filter cube stage and objective turret

Autofocus
Standard image-based autofocus provides convenience and maintains focus during time lapse. Optional laser-based autofocus provides rapid and reproducible focus whilst minimising photobleaching and phototoxicity

Powerful Yet Intuitive Software

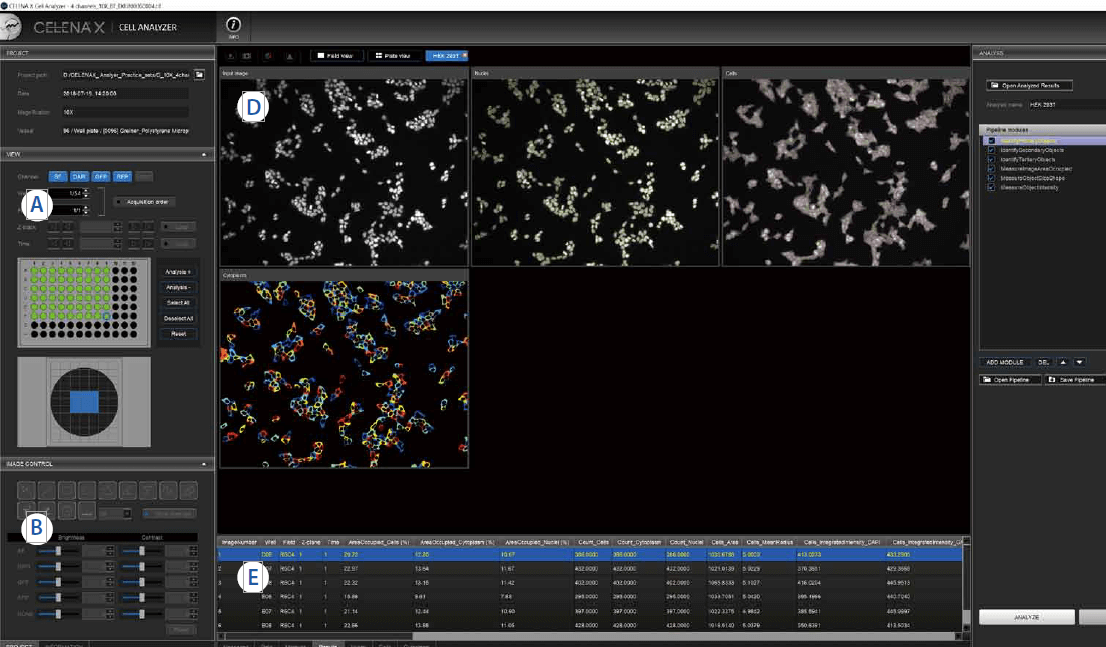

Explorer software allows you to setup high content assays with ease. Analyser software provides statistically robust data from your images

Assay Flexibility

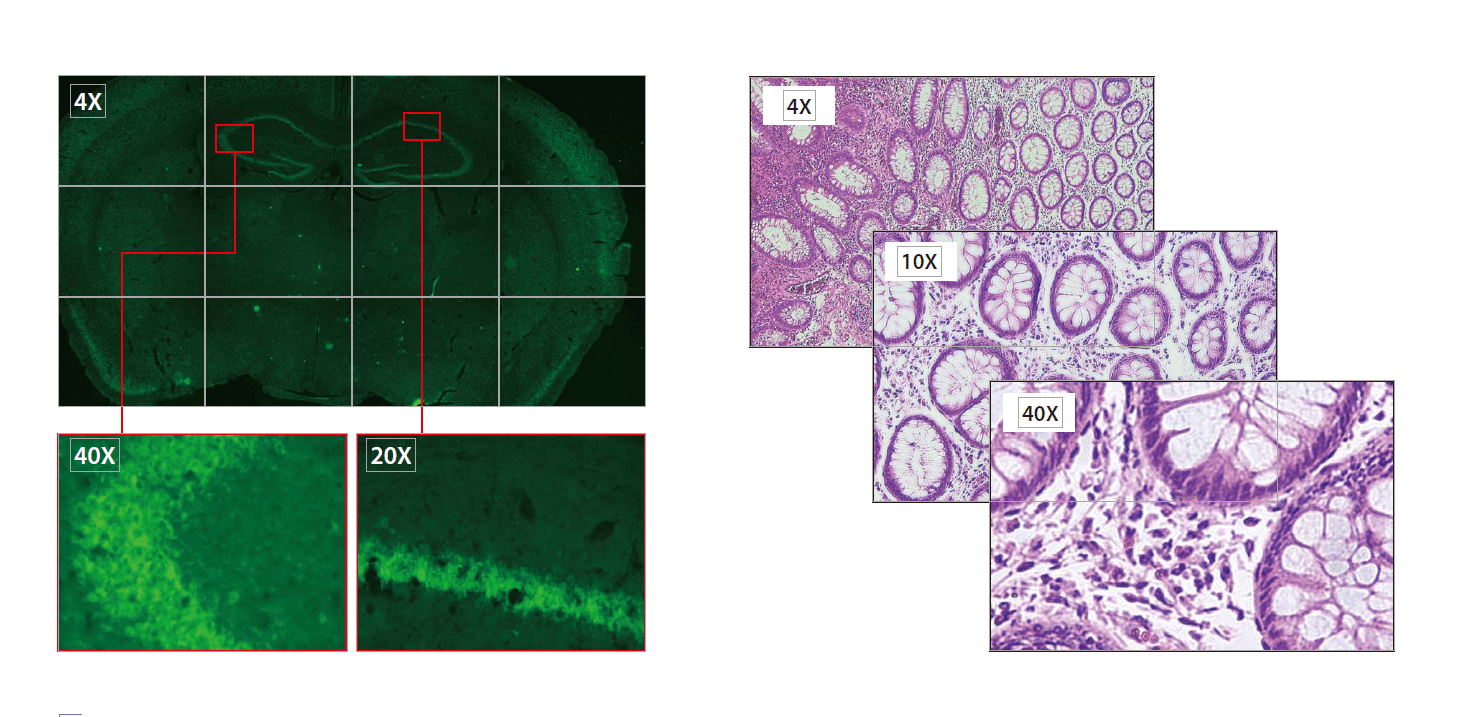

Four channel fluorescence, brightfield, colour brightfield and phase contrast imaging. Z-stack and time lapse options. Live cell and kinetic imaging

£0.00

[ti_wishlists_addtowishlist product_id="16907"]

Imaging Modes – 4-channel fluorescence, brightfield, phase contrast (colour brightfield)

Light Source – High-power LED filter cubes with adjustable intensity (> 50,000 hours life per cube)

Filter Cube Stage – Motorised with 4 interchangeable fluorescence filter cubes and 1 brightfield filter cube

Objective Turret – Motorised 5 position compatible with Olympus, Zeiss and Logos Biosystems objectives

Condensor – Motorised with choice of basic or phase-contrast versions. Basic: 60mm LWD with 4 positions. Phase-Contrast: 60mm LWD with 4 positions and 3 phase annuli

Camera – Monochrome CMOS 1.92 MP (Optional Colour CMOS 1.92 MP)

Autofocus – Image-Based (Optional Laser-Based)

Stage Control – Motorised X/Y Stage (120 x 80 mm). Motorised Z Stage (10 mm)

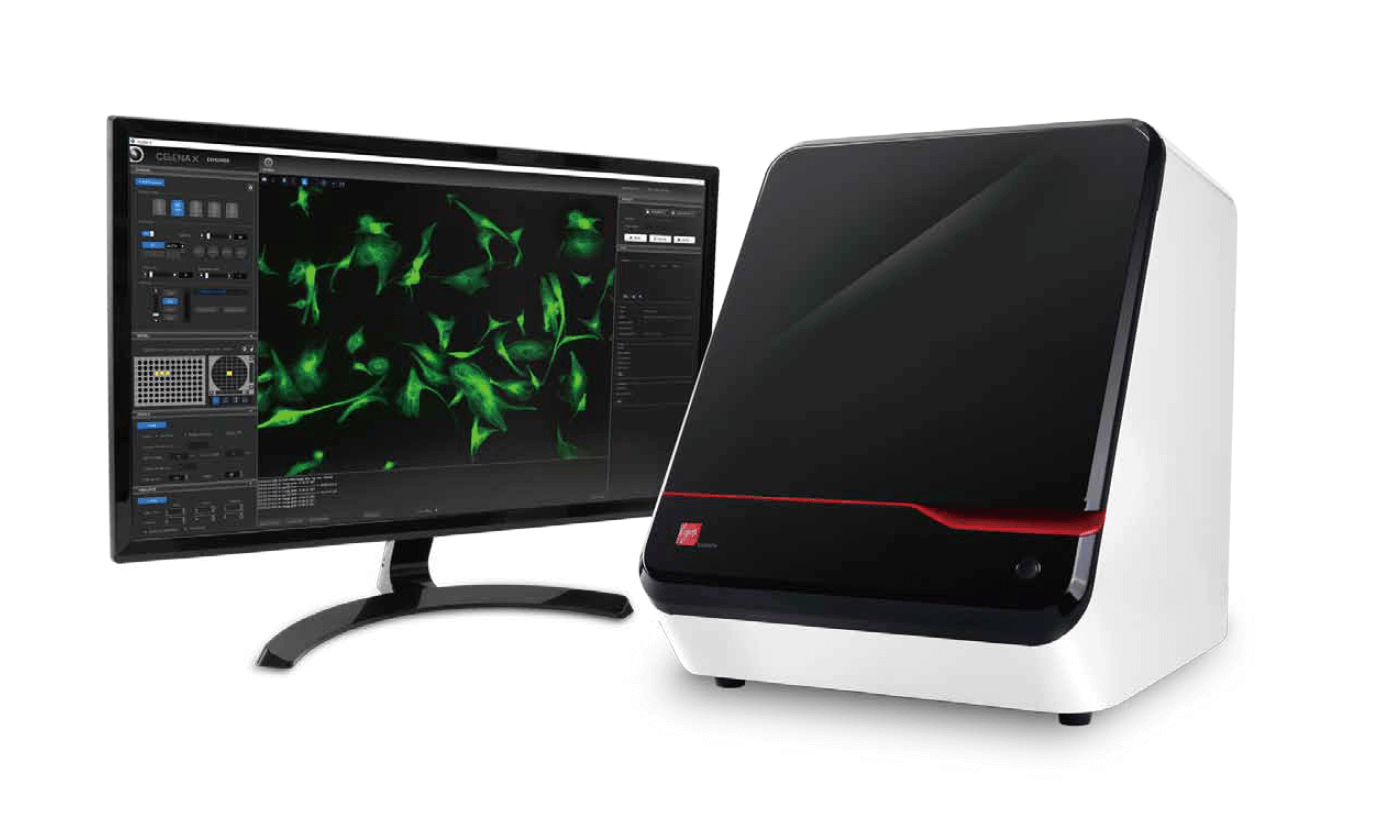

Computer – External PC with 27 inch 4K UHD monitor

Dimensions (W × D × H) – Main Body: 39 × 46 × 50 cm (15.4 × 18.1 × 19.7 in.) Controller: 17 x 30 x 23 cm (6.7 x 11.8 x 9.1 in.)

Weight – Main Body: 33 kg (72.8 lbs.) Controller: 7 kg (15.4 lbs.)



  • LED Light Sources
  • Powerful Excitation
  • Motorised Stage
  • Multi-Well Imaging
  • Precision Optics
  • Sensitive and Detailed Images
  • Comprehensive Software
  • Facilitates Your Workflow
  • Precision automated X, Y and Z stage
  • Up to 4 high-power LED based filter cubes
  • Standard image-based autofocus
  • Optional laser-based autofocus for increased speed and reduced photobleaching and phototoxicity
  • Standard high sensitivity monochrome camera
  • Optional dual camera configuration with additional colour camera
  • Five position motorised objective turret
  • Compatible with Logos Biosystems, Olympus and Zeiss objectives
  • Celena X Explorer software provides intuitive creation of assays
  • Optional Celena X Analyser software provides sophisticated data analysis tools
