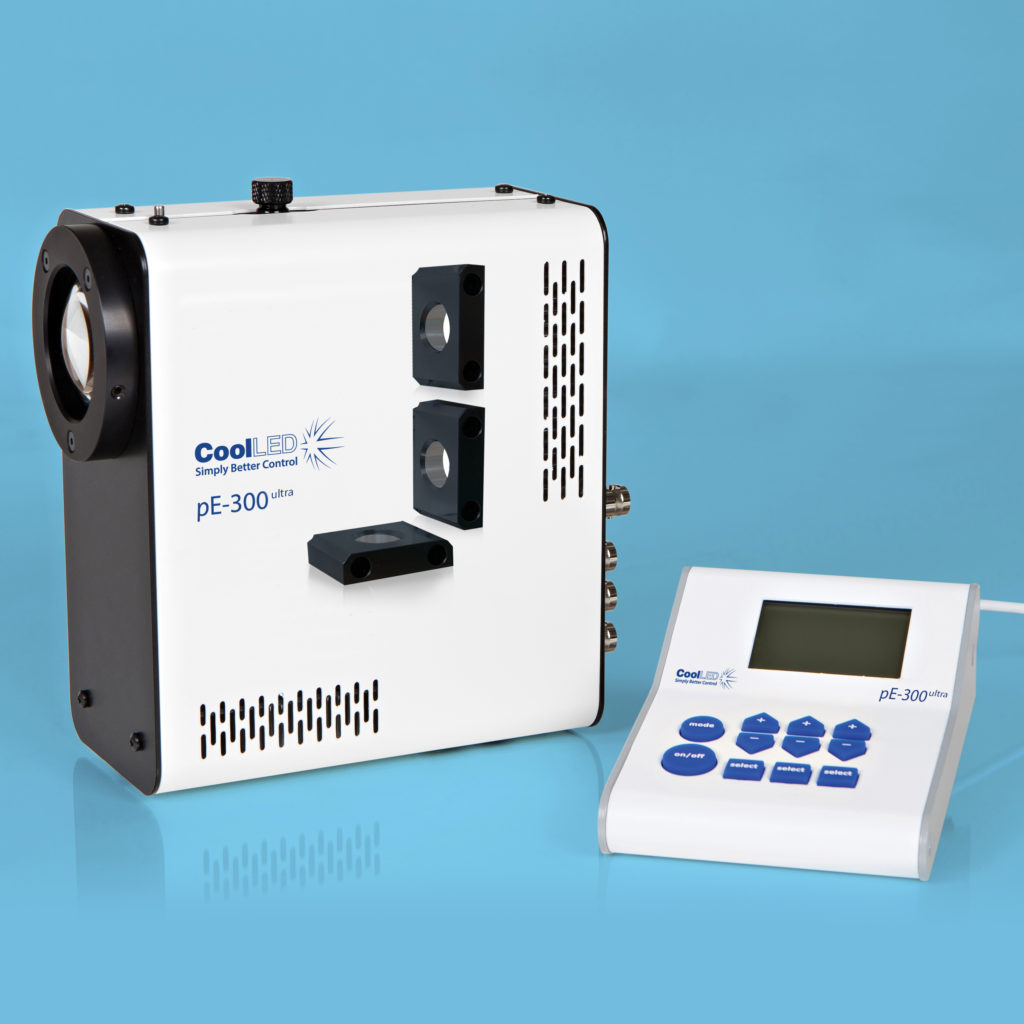

pE-300ultra LED Illumination System for Fluoresence Microscopy

365nm to 650nm LED excitation with individual channel control and Global Switching

The pE-300 Series is a range of LED Illumination Systems for fluorescence, optogenetics, electrophysiology and high-speed microscopy applications. It comprises three systems providing a solution that covers a range of everyday fluorescence microscopy; from the simple pE-300lite through the classic pE-300white to the highly controllable pE-300ultra. The systems are unique in also being available as a Direct Fit model, which increases irradiance and reduces the cost to buy and run thanks to fewer consumables. The pE-300white includes individual channel selection and intensity control, global remote triggering and integration with some imaging software packages.

£5,270.00

  • Broad Spectrum – UV to Red​
  • Compatible with existing single and multi-band filter sets​
  • Direct to microscopes​
  • Once-only alignment​
  • Instant on/off​
  • Stable and repeatable irradiance​
  • Fine irradiance control​
  • Excellent uniformity over the whole field of view​
  • Remote control via USB or TTL trigger​
  • Three LEDs​
  • Removable inline excitation filter holders – no moving parts​
  • Individual channel triggering via TTL in microseconds​
  • Sequence runner – sequenced excitation from a single TTL-out​
pE-300lite pE-300white pE-300ultra
Broad Spectrum √ √ √
Instant On/Off √ √ √
Direct Fit or Light Guide √ √ √
10-100% Intensity Control √ √ √
Filter set compatibility √ √ √
Individual channel selection & intensity control √ √
Integration with Imaging Software √ √
Global Remote Triggering √ √
Individual Channel Triggering √
Removable Inline Filter Holders √
Sequence Runner – sequenced excitation from a single TTL √
