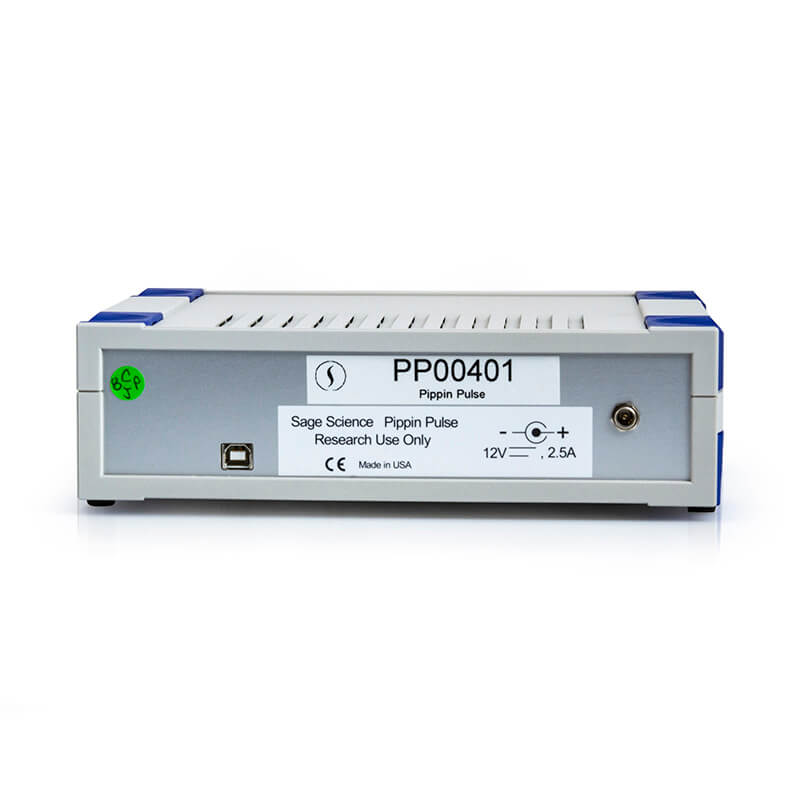

Pippin Pulse

SKU: PPI0000 Categories: , Tag:

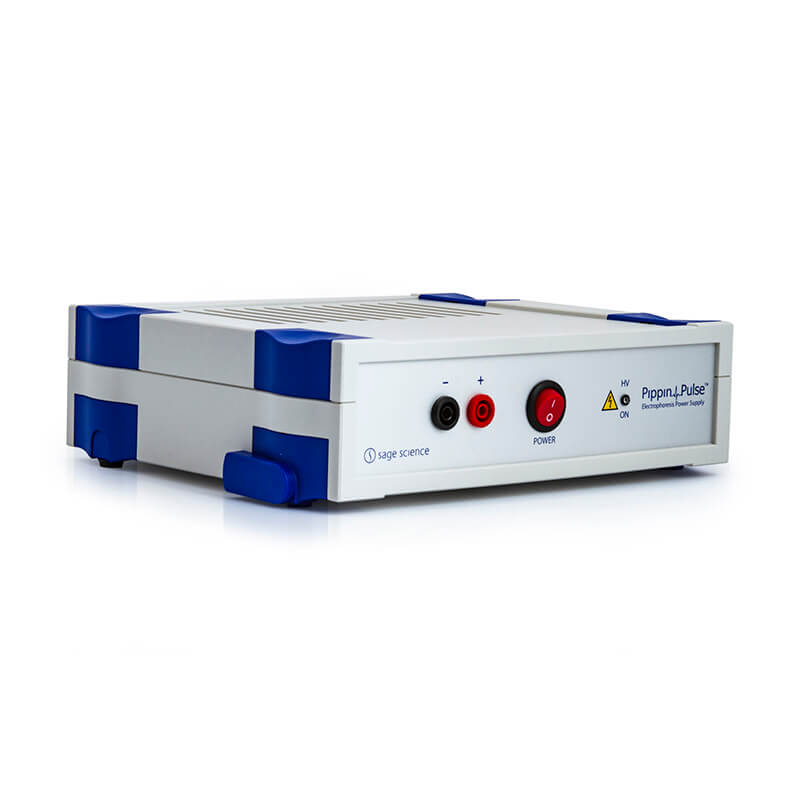

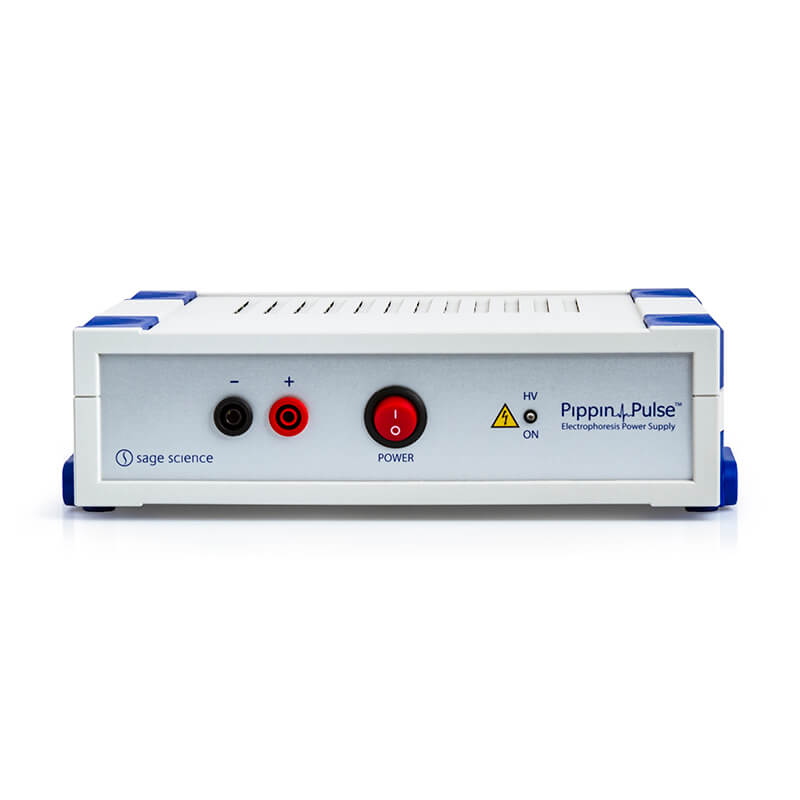

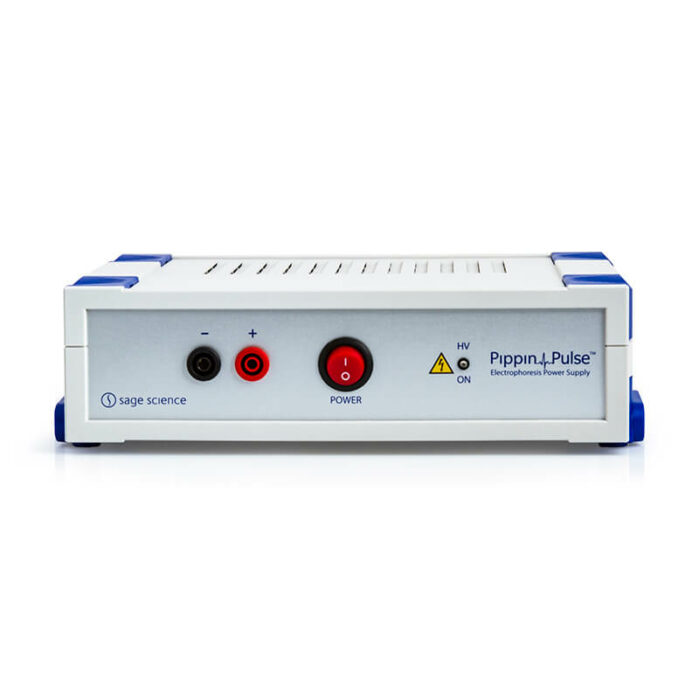

Pulsed-field elecrophoresis power supply

The Sage Science Pippin Pulse is an affordable tool allowing researchers to resolve DNA up to 430 kb

Pulsed-Field Technology
Utilises innovative pulsed field inversion electrophoresis that works by shuttling DNA back and forth in the gel, effectively slowing down large DNA fragments that would typically migrate at the same rate as smaller DNA fragments during conventional electrophoresis

Simple Plug-and-play Set-up

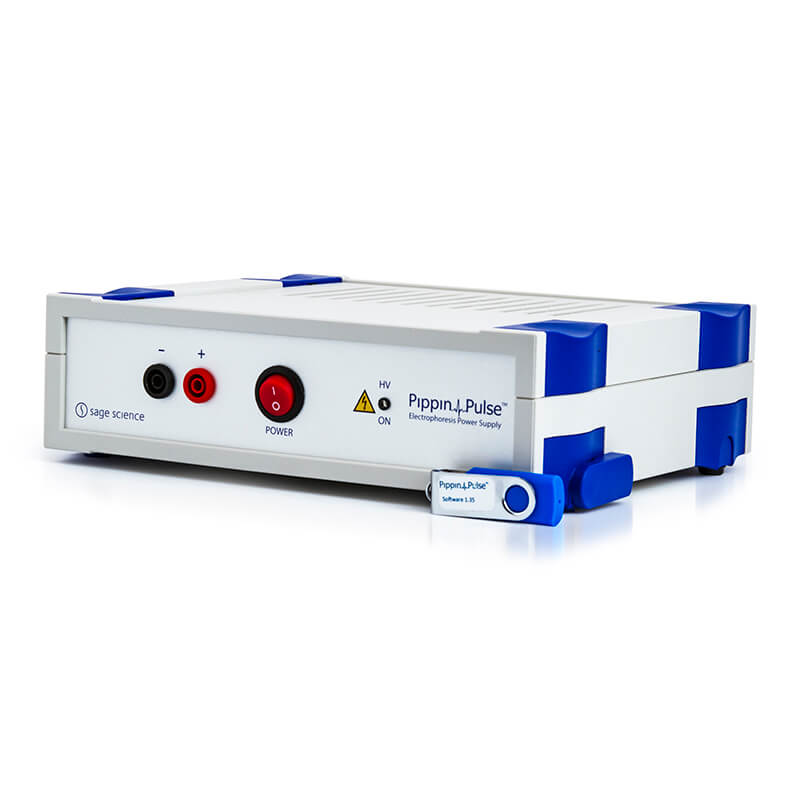

Simply load DNA samples, connect electrodes to Pippin Pulse, connect Pippin Pulse to computer via USB and select pre-configured programme

Flexible Programming
Customised protocols can be designed by simply editing parameters in the Pippin Pulse software (including run voltage, forward/reverse time steps and number of steps per cycle)

Rigorously Validated
Pre-set protocols have undergone extensive in-house validation by experienced Sage Science Application Scientists

Experience the benefits of pulsed-field electrophoresis at an affordable price compared to other systems currently on the market

No need to perform expensive long-read NGS runs to validate size selection efficiency. The Pippin Pulse can be used to QC DNA library quality before undertaking expensive NGS sequencing reactions, thus eliminating uncertainty

Robust Design

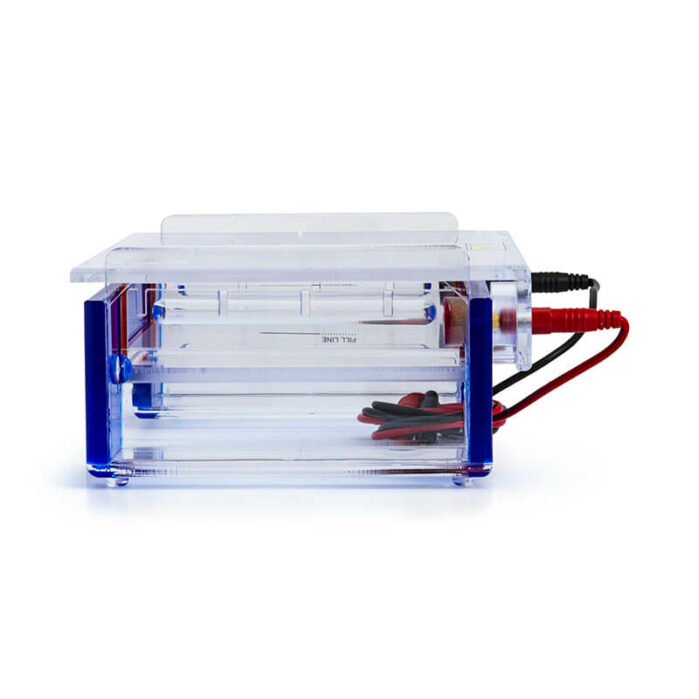

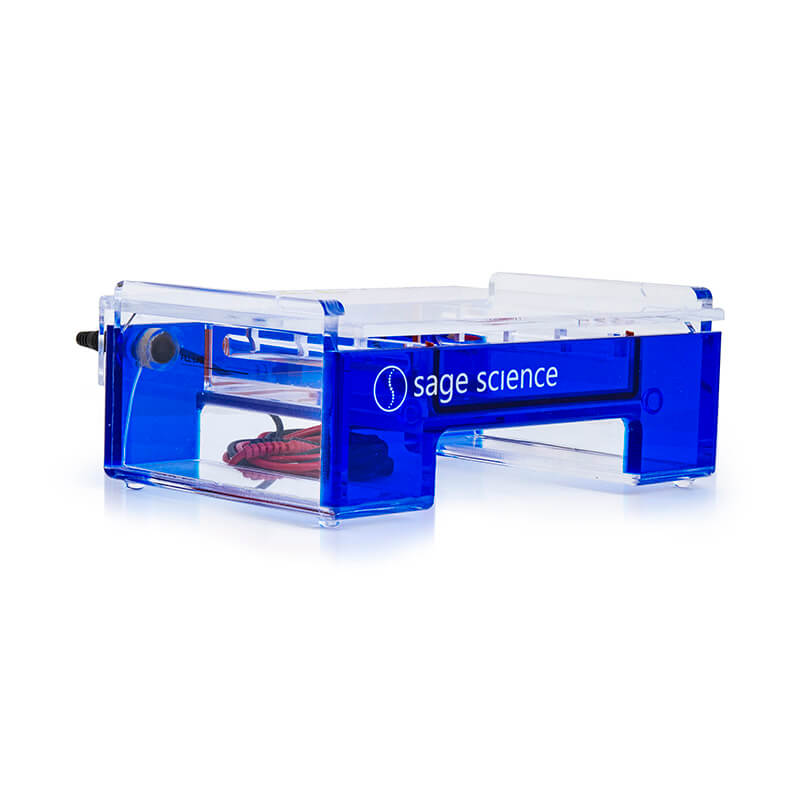

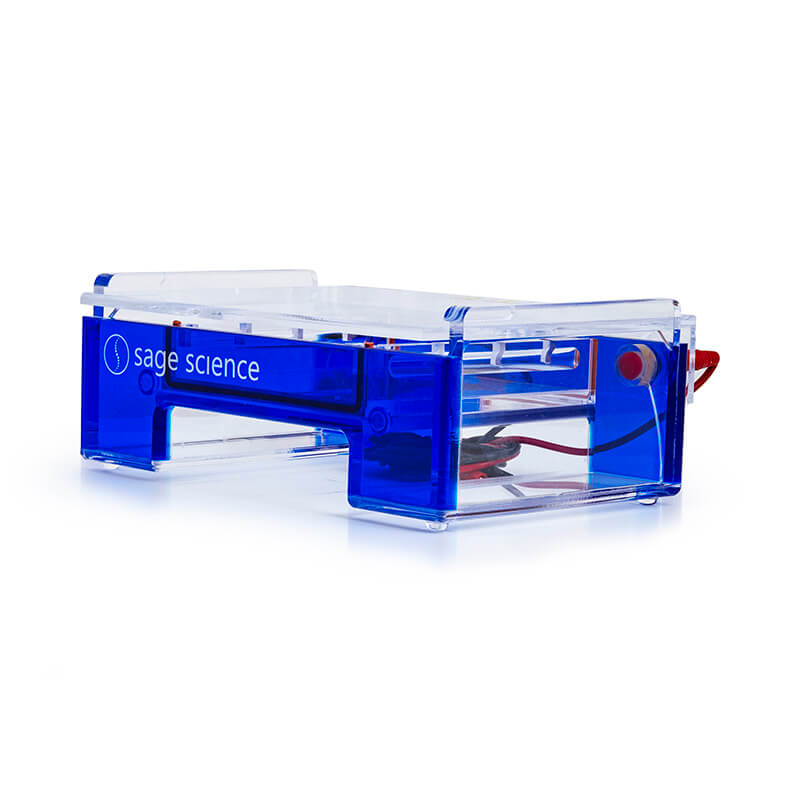

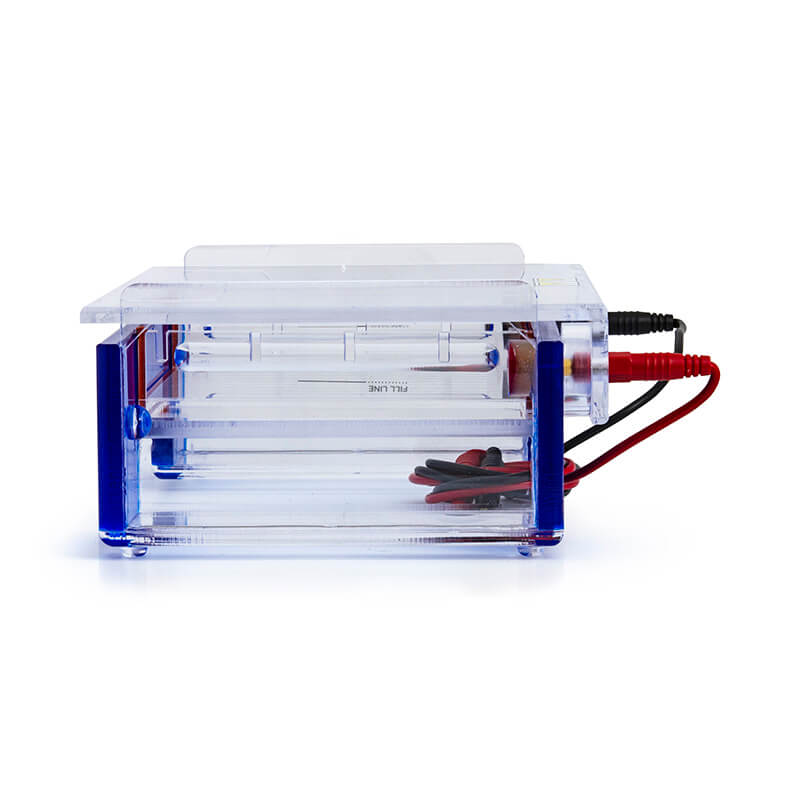

Midi gel box contains reinforced platinum electrodes for eliminating electrode corrosion during long runs.


Instrument Control – PC controlled

Electrophoresis Voltage – 25 – 175 V

Maximum Current – 200 mA

Dimensions (W × D × H) – 20 × 24 × 7 cm (8 × 10 ×3 in.)

Weight – 1.1 kg (2.5 lbs.)

  • Pulsed-Field Technology
  • Reproducibly resolves large DNA fragments (0.5 to 430kb)
  • Easy-to-Use
  • No unwieldy instruments or chillers required
  • Intuitive Software
  • Includes six pre-set, fixed pulsed field protocols
  • Compact Design
  • Minimal bench space required
