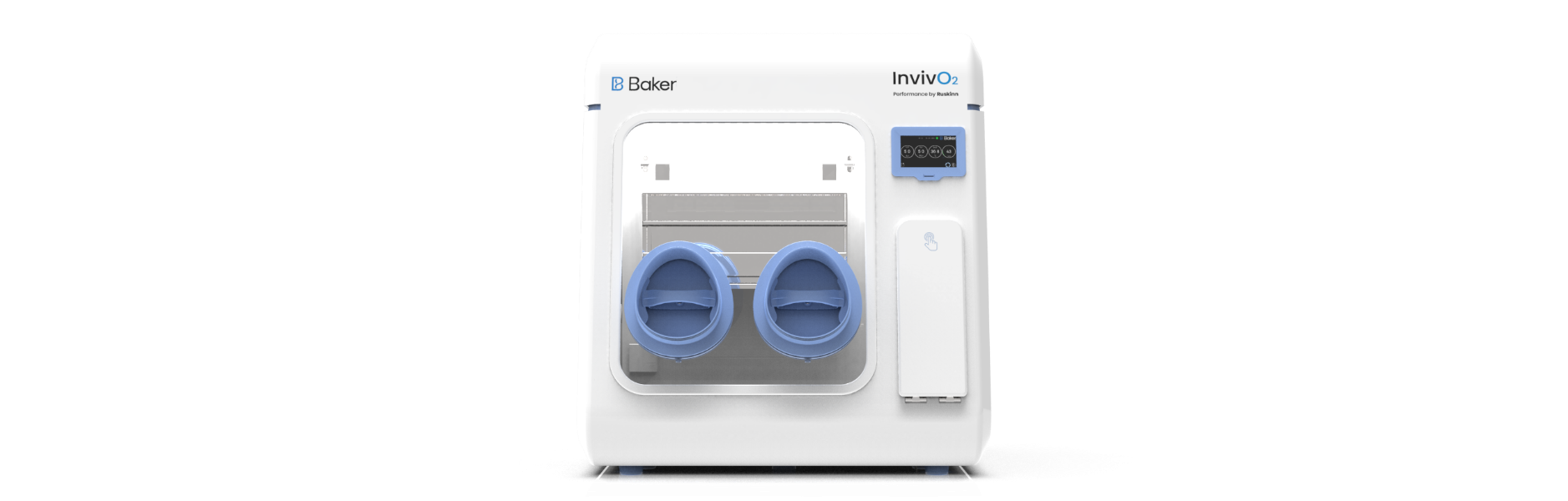

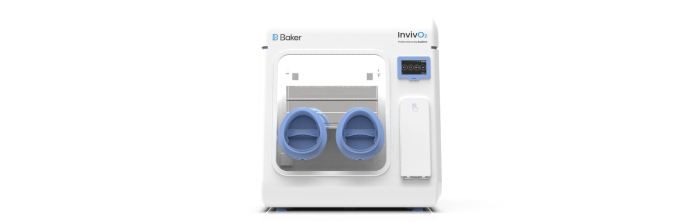

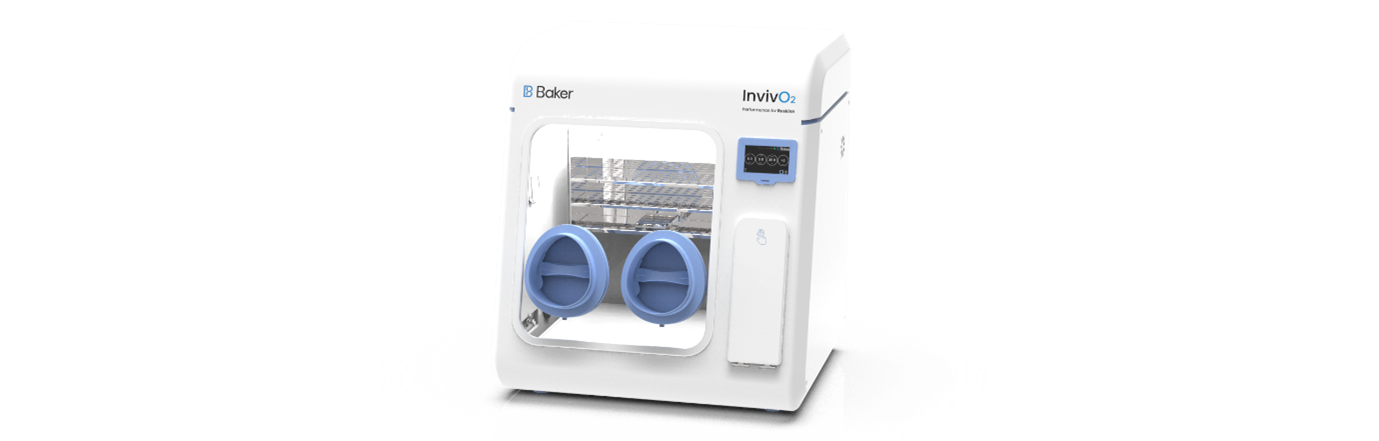

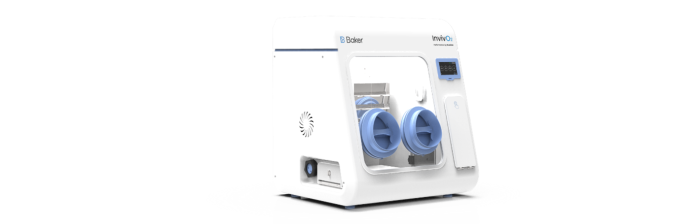

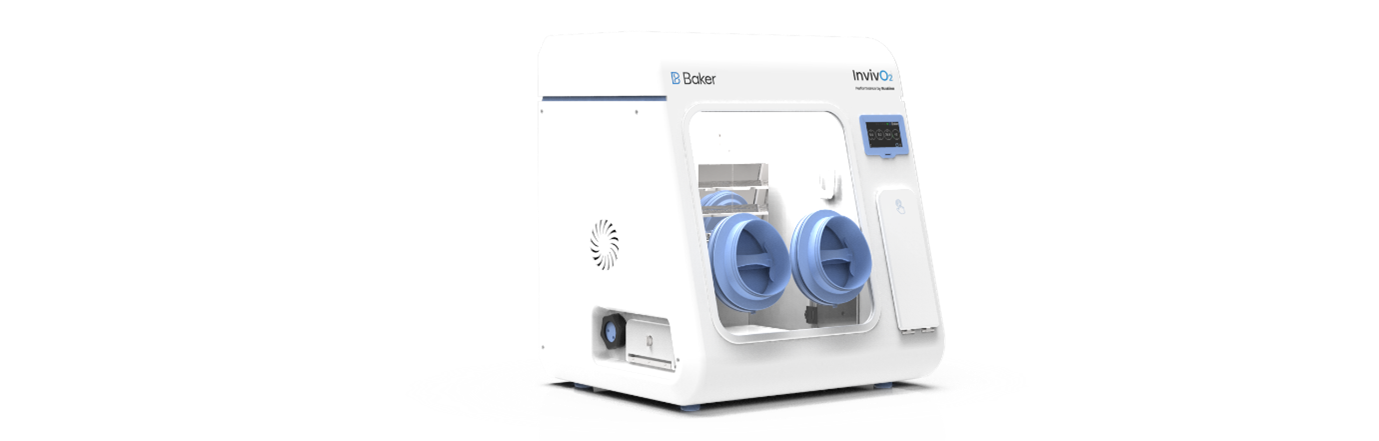

InvivO2 300 – Compact Hypoxia / Physoxia workstation
The New InvivO2 300 from Baker has the smallest lab bench area of any hypoxia / physoxia chamber with interlock, yet still offers all of the features required to allow the study of even the most complex cell interactions under physiologically relevant conditions. A user-friendly, powerful, but affordable platform to add low oxygen workflows to your research.
Compact Footprint
790 mm wide x 679 mm deep, saves valuable benchspace, with a modern, user-friendly design
Designed for Strict Hypoxic Conditions
An acrylic airtight chamber and Ezee Sleeves™ with N2 purge, ensure that a precisely controlled low oxygen environment is maintained.
Precision Environmental Control
Precision control of O2 (0.1-23%), CO2 (0.1-30%), temperature (RT+ 5 up to 45 ˚C) and humidity, with intuitive touchscreen control.
Quick and Easy Access
Gloveless cuffed Ezee Sleeve™ system takes less than 30 seconds for direct hand access.
Flexible Interlock
The large 10.7 l interlock can hold up to twenty six 96 well plates and has a fast 30 second purge time.
Standard Specification Includes
- Ezee Sleeve™ glove ports
- Humidity control via Aquasorb bead sachets (5 included)
- Side mounted SPES (single plate entry system)
- One internal power socket
- Internal lighting (touchscreen controlled)
- Optical O2 sensor with 4 year lifespan
- Removable front screen
- Hypoxic cycling
- Touchscreen with data logging capability via SD card
- Foot pedal for sleeve vacuum / gassing
- Cleaning kit
Optional Features Include:
- Internal HEPA filtration (ISO class 3)
- External HEPA (exhaust) containment
- Single cable gland
- Multi cable gland
- Additional internal power socket
- Vacuum connection port
- Anoxic mode
- Ezee Cuff™ system

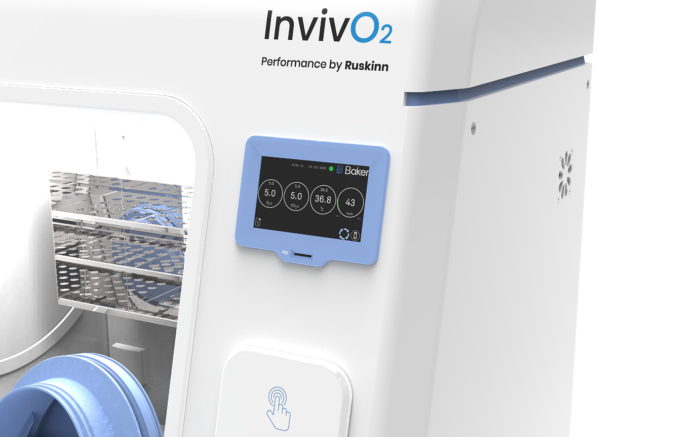

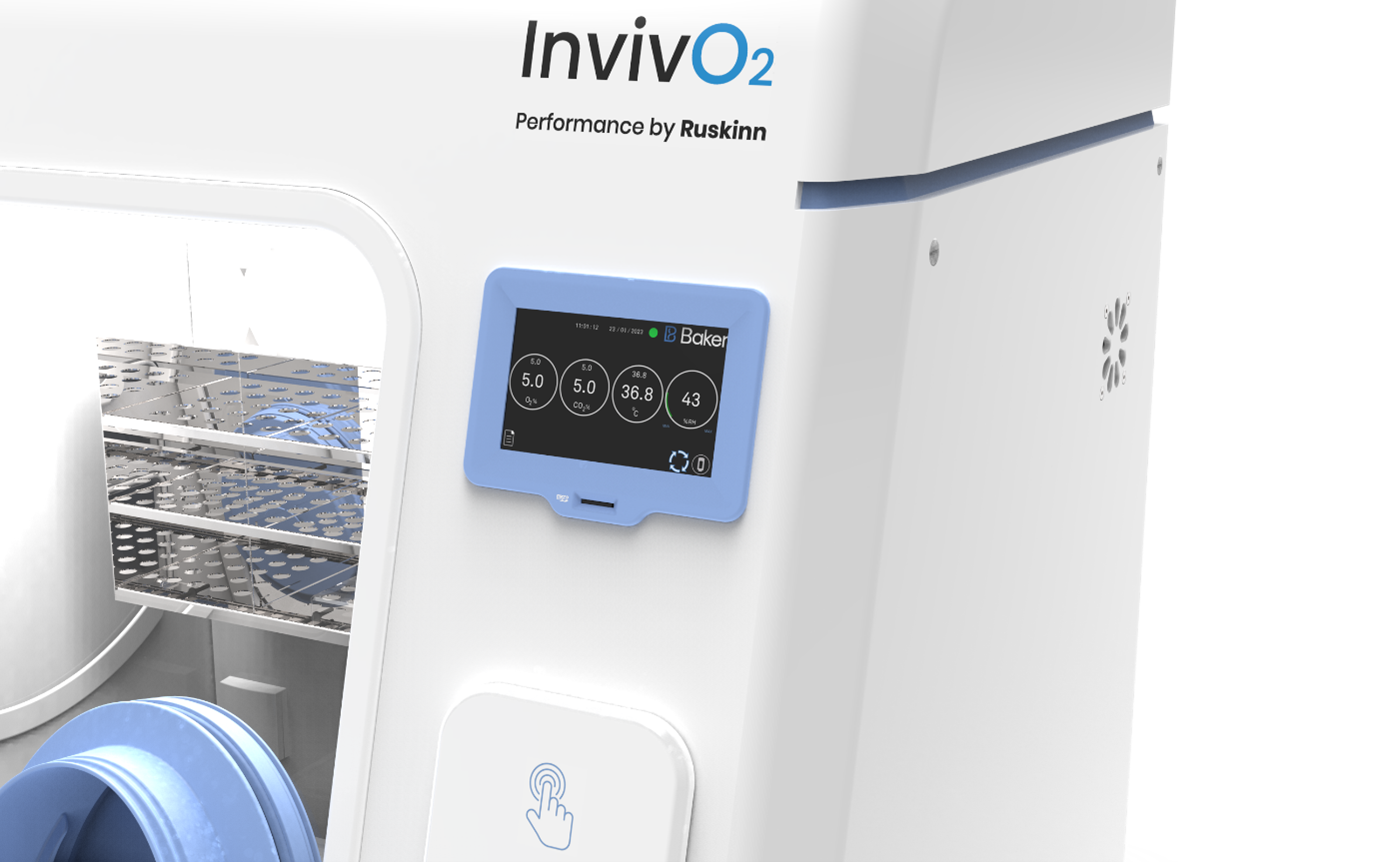

Instrument Control – Built-in colour touchscreen
External Dimensions – 790 x 679 x 872 mm (w x d x h)

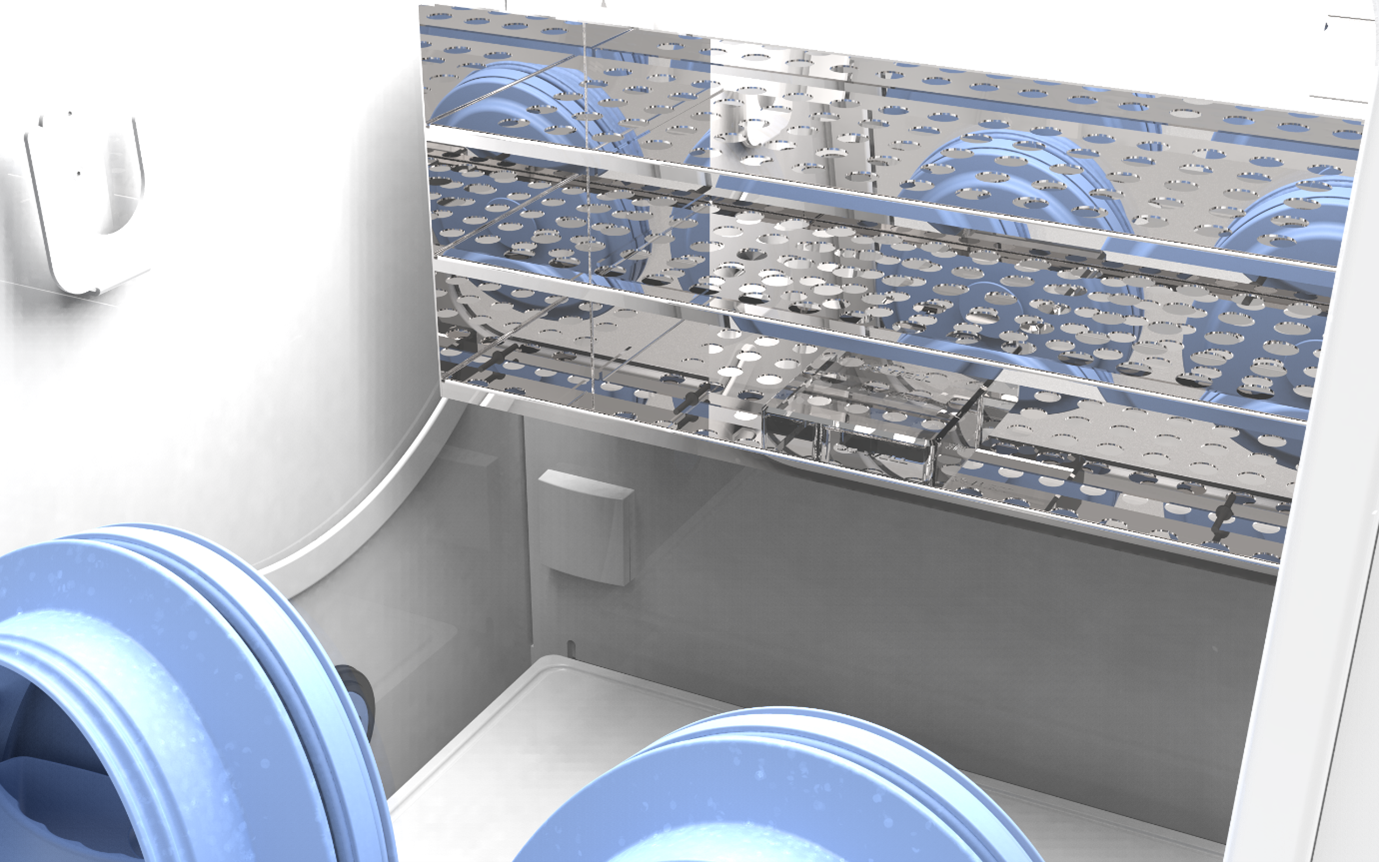

Internal Dimensions – 540 x 546 x 535 mm (w x d x h)
Workstation Capacity – 152 x 96 well microplates or 90 x T75 flasks
Interlock Dimensions – 149 x 253 x 285 mm (w x d x h)
Interlock Capacity – 26 x 96 well microplates or 6 x T75 flasks
Interlock Time Cycle – 30 seconds
Weight – 59 kgs
