Concept

Anaerobic workstation

The Baker Ruskinn Concept provides stable anaerobic conditions to grow and monitor facultative anaerobic microbes. Concept 400 M features an integrated gas mixer, ensuring accurate control of oxygen levels for microaerophilic cultures.

Precision Control
Ideal growth conditions with sophisticated control of humidity, temperature and the anaerobic environment. Concept M includes an integrated gas mixer for microaerophiles

Conditions Monitoring as Standard
Continuous digital display of chamber conditions. Colour coded for at a glance checks

Standard HEPA Filtration
Minimise the risk of contamination

Ezeeyin Glove Ports
Fast entry (15-20 seconds) for one or both hands without compromising the chamber environment

Single Plate Entry System
‘Post’ additional plates into the system with ease

Flexible
Choice of models depending on workflow / plate numbers. High standard specification with innovative options

£0.00

Clear

Instrument Control – Built-in colour touchscreen

Workstation Capacity (90mm plates) – 504 plates – Concept 400 (M) and Concept 500 1008 plates – Concept 1000

Interlock Capacity (90mm plates) – 42 plates – Concept 400 (M) 70 plates – Concept 500 98 plates – Concept 1000

Interlock Purge Times – 60 seconds – Concept 400 (M) 90 seconds – Concept 500 /1000

Monitoring – At a glance check of conditions
Quick and Easy Transfer – Identify microbes up to 24 hours faster
Aquasorb – Effective humidity control without contamination
Standard HEPA Filtration – Minimise contamination

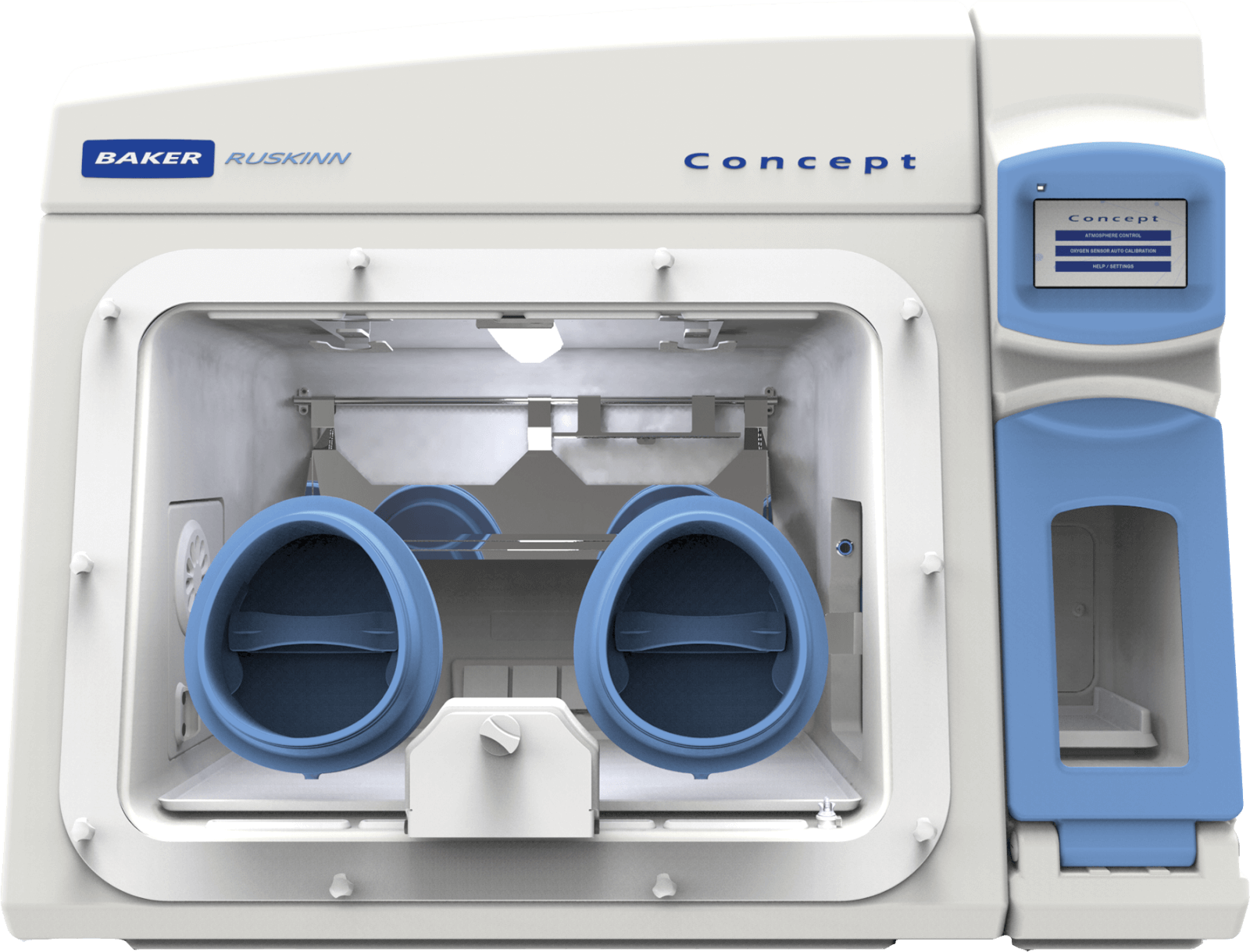

  • Concept 400 – 504 plate chamber and 42 plate interlock capacity

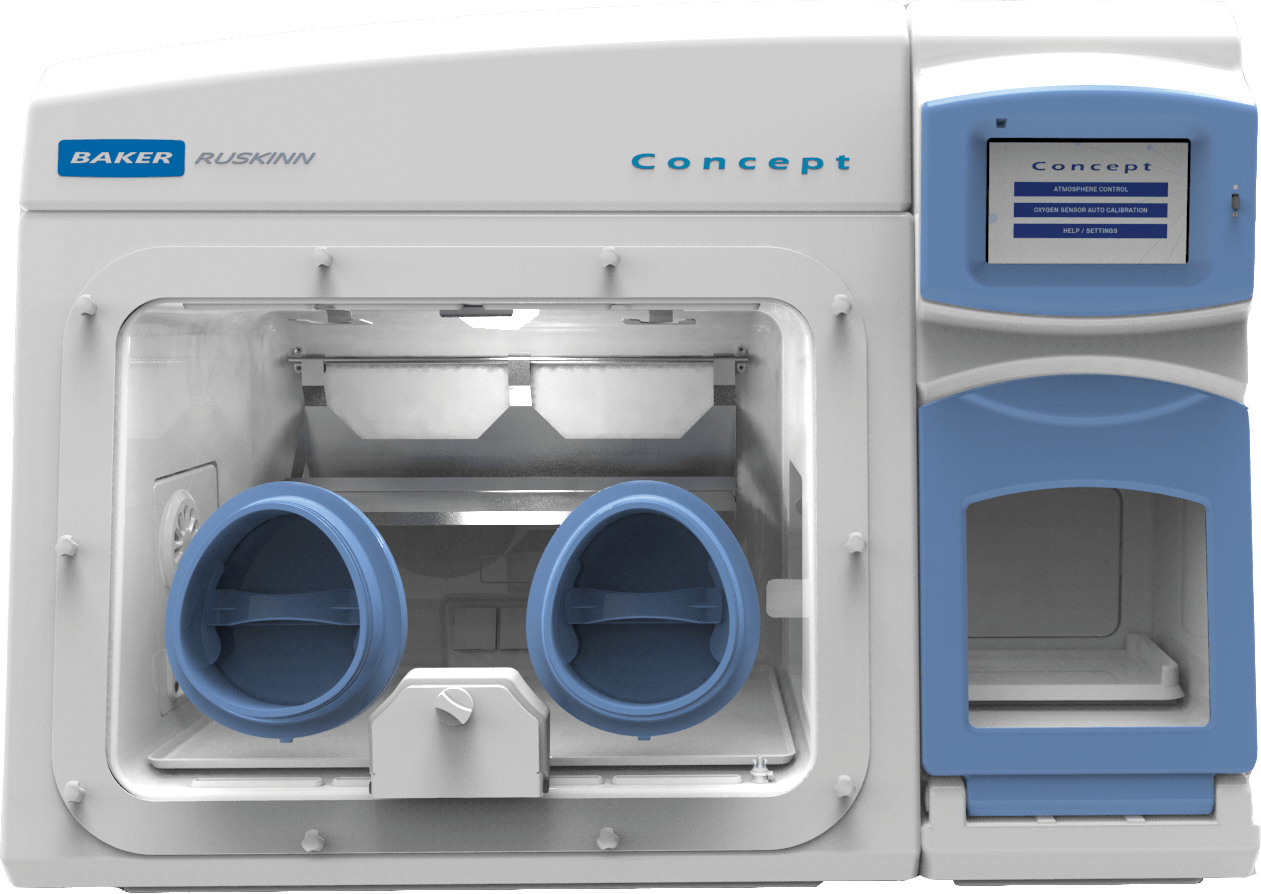

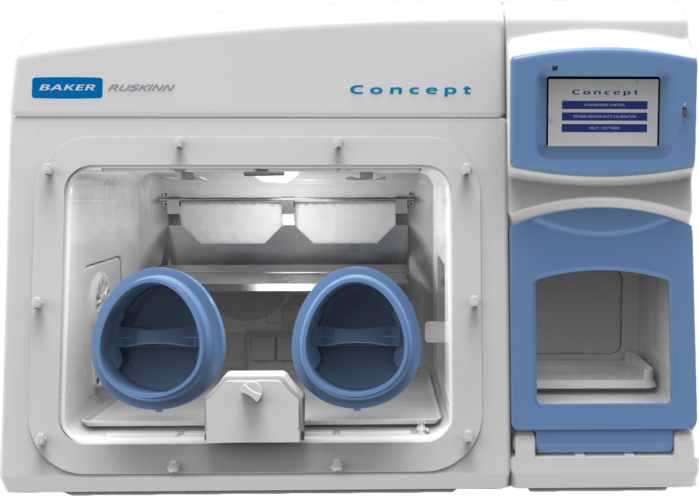

  • Concept 500 – 504 plate chamber and 70 plate interlock capacity

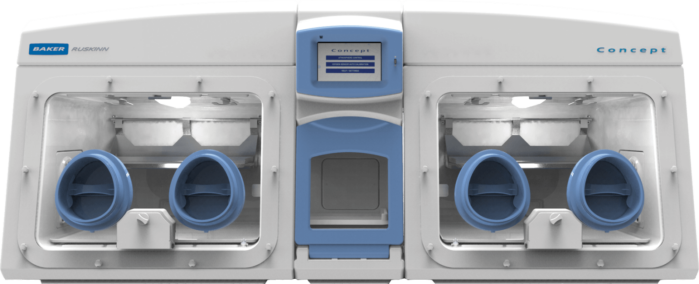

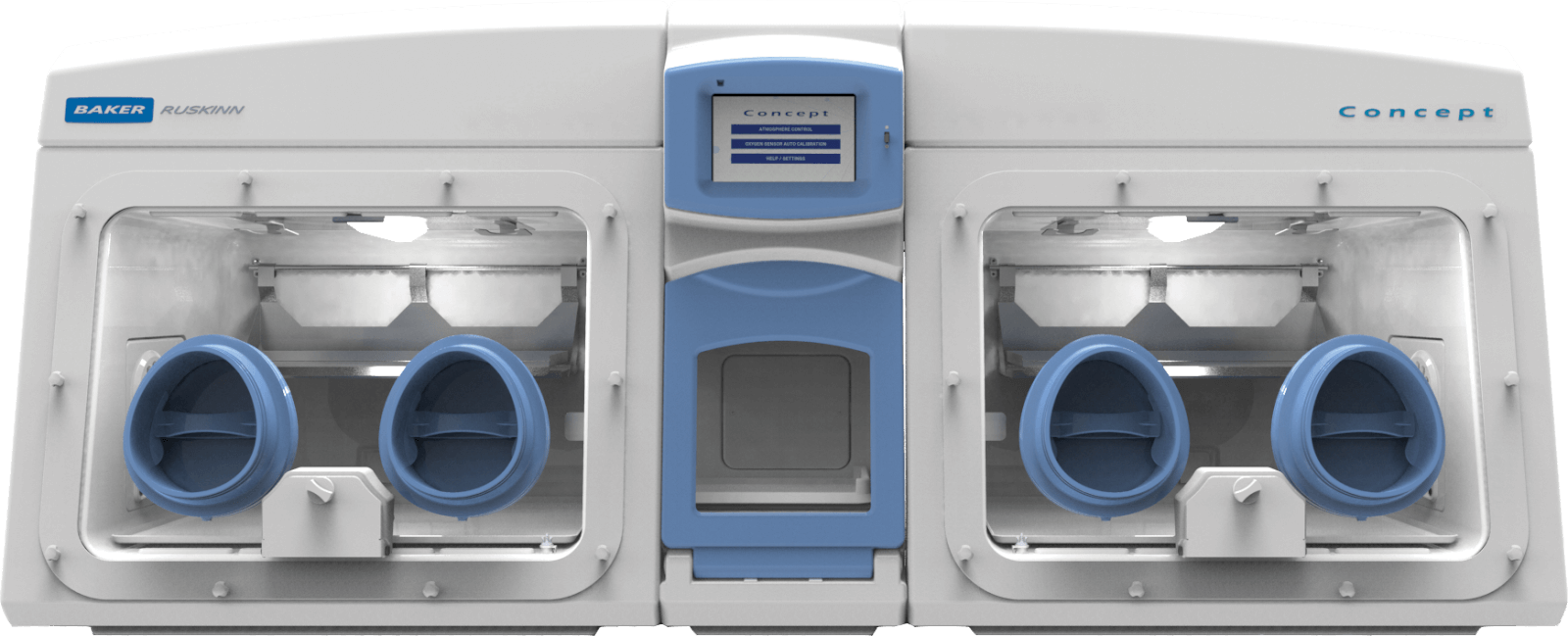

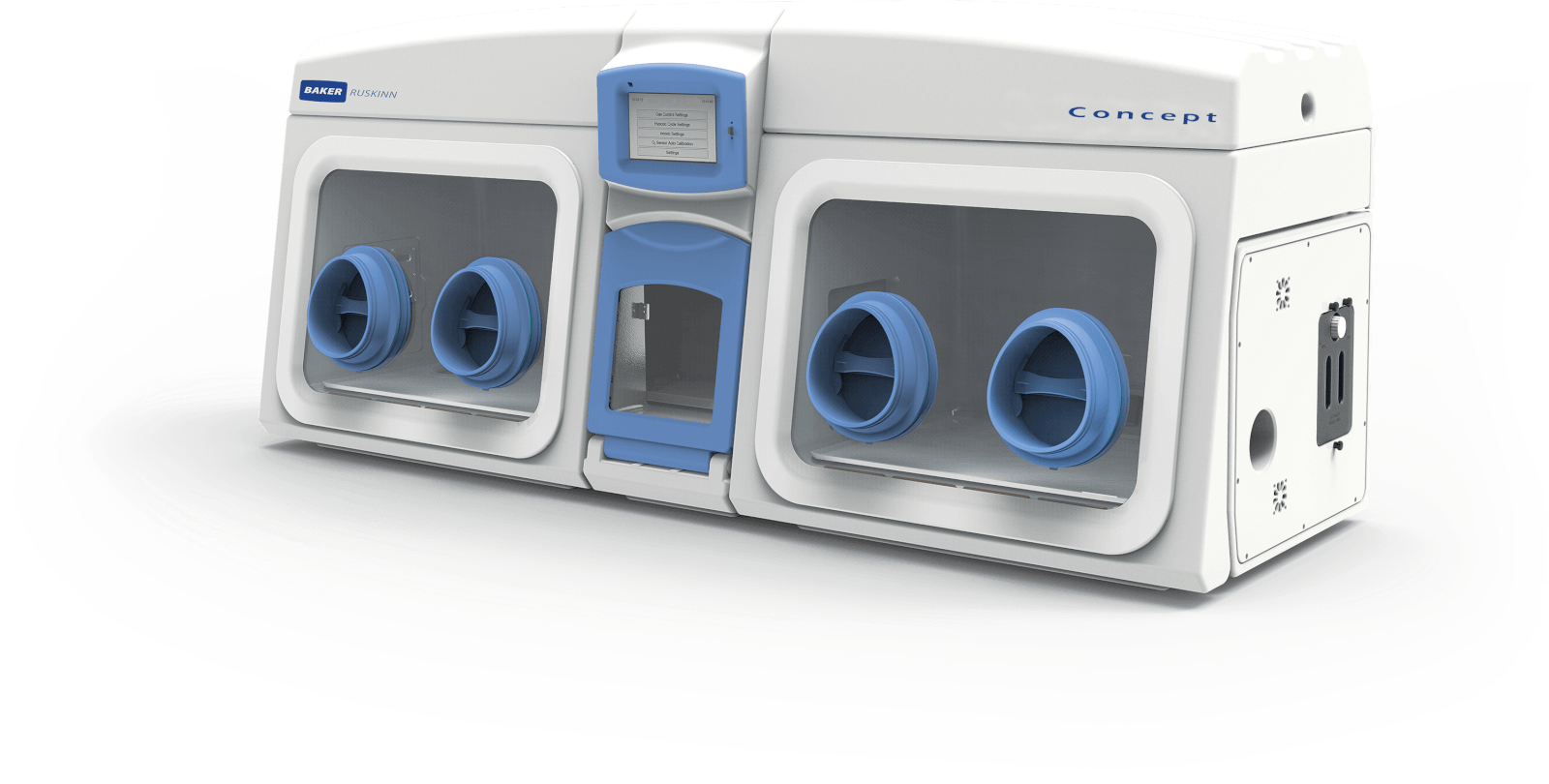

  • Concept 1000 – Two independent chambers each holding 504 plates with central 98 plate interlock

Standard Specification Includes

  • 15cm wide front SPES (single plate entry system)
  • Anaerobic conditions monitoring system with 3 hour rolling log and colour coding for at a glance checks
  • Touchscreen operation
  • HEPA filtration
  • Humidity control using Aquasorb
  • 3 internal power sockets
  • ‘No bake’ Palladium catalyst
  • RT +5 up to 45 degrees C temperature control
  • Lighting control (on, off and dimming)
  • Data logging
  • Automated removeable (pop-on / pop-off) front panel
  • Ezee Cuff gloveless and sleeveless hand entry
  • Ultrasonic humidity control
  • Cooling
  • Internal USB power socket
  • Digital monitor for Lumascopes
  • Vacuum or gas port connectors
  • Waste port
  • Light protective cover
  • Manual or electronically height-adjustable stands

Standard Specification Includes

  • 504 plate chamber and 42 plate interlock capacity
  • Oxygen control from 0-23% in 0.1% increments
  • Carbon dioxide control from 0.1-30% in 0.1% increments
  • Intelligent interlock which automatically sets oxygen level to that of the main chamber
  • Data log with recordings every minute
  • Automated removeable front panel (pop-on / pop-off)
  • Touchscreen operation
  • HEPA filtration
  • Humidity control using Aquasorb
  • 3 internal power sockets
  • ‘No bake’ Palladium catalyst
  • RT +5 up to 45 degrees C temperature control
  • Lighting control (on, off and dimming)

Optional Features

  • Single plate entry system (SPES)
  • Steam humidity system
