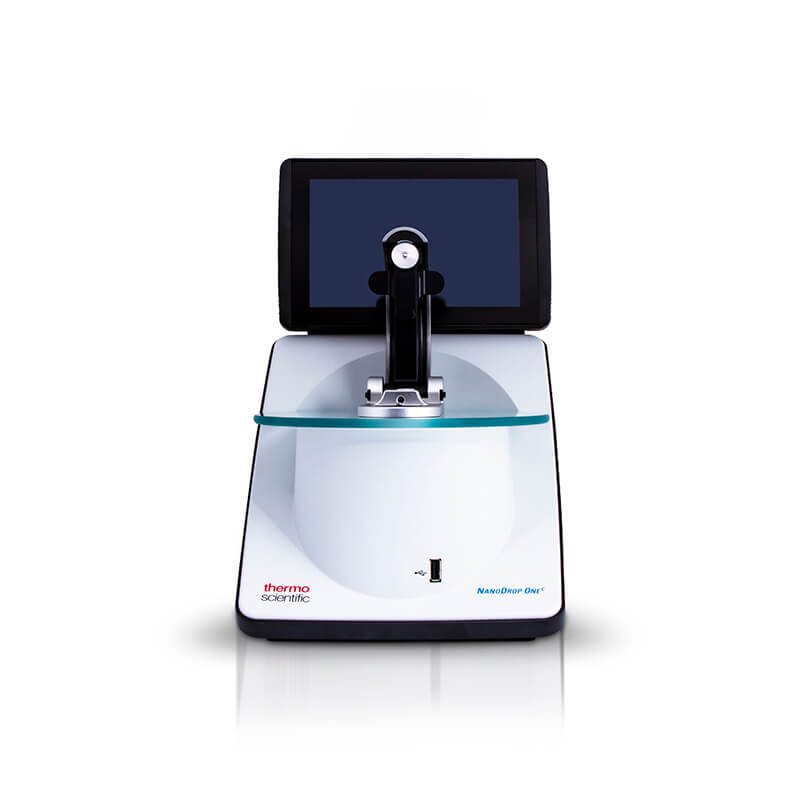

NanoDrop OneC Spectrophotometer, with integrated cuvette reader, Wi-Fi

Standalone microvolume spectrophotometer with advanced contaminant detection capabilities, DNA/RNA differentiation and integrated cuvette reader

The Thermo Scientific NanoDrop One is the latest generation standalone UV-Vis Spectrophotometer, providing a clearer picture of sample quality including DNA/RNA differentiation

Flexible Control
Choice of operation modes: Standalone using the high resolution touchscreen or operate via a connected PC. Optional PC Security Suite software enables 21 CFR Part 11 compliance

Acclaro Sample Intelligence
Identifies and corrects for contaminants (including DNA/RNA differentiation), monitors sample column for bubbles and provides feedback about sample quality with guided troubleshooting.

Versatile Data Management
Automatic on-board saving of sample data. Export via USB drive, WiFi or ethernet in a range of formats. Connect to the Thermo Fisher Cloud or even print. Security Suite software enables 21 CFR part 11 compliance when PC controlled

Minimal Sample Preparation
Powerful auto-range pathlength technology ensures accurate measurements for even highly concentrated samples without the need for dilutions. No prior knowledge of sample concentration required

Fast and Easy Measurements
Ergonomic design with tilting and sliding screen for optimal viewing. Auto-blank and auto-measure streamline workflow

No Consumables Required
The patented NanoDrop sample-retention system enables direct microvolume measurements from 1–2 μL of sample. No need for special slides or consumables

£0.00

Instrument Control – Built-in touchscreen or PC control

Minimum Sample Volume – 1 µL

Limit of Detection – dsDNA Pedestal: 2.0 ng/µL Cuvette: 0.2 ng/µL
BSA (IgG) Pedestal: 0.06 (0.03) mg/mL Cuvette: 0.006 (0.003) mg/mL

Maximum Concentration – dsDNA Pedestal: 27,500 ng/µL
BSA (IgG) Pedestal: 820 (400) mg/mL

Measurement and Data Processing Time – 8 seconds

Dimensions (W × D × H) – 20 × 25.4 × 32.3 cm (8 × 10 × 12.7 in.)

Weight – 3.6 kg (7.9 lbs.)

Connectivity – Three USB-A ports, Ethernet, Bluetooth® and WiFi 3

PC Software Requirements – Windows® 7 or 10, 64 bit (Professional versions only)



More Details

  • Acclaro™ sample intelligence
  • Contaminant Detection with concentration correction including DNA/RNA differentiation
  • Bubble Detection
  • Improve Measurement Integrity
  • Auto blank– Auto measure
  • Improve your Workflow
  • Optional Security Suite software
  • 21 CFR Part 11 compliance
  • Compact standalone design
  • Reduce Bench Space impact
  • Simple operation – Pipette, Measure, Clean, as with the ND1000.
  • No specialist consumables required
  • Wide dynamic range 2 – 27,500 ng/ml ds DNA means no requirement for dilutions.
  • The maximum concentration is ~8 fold higher than on the ND1000
  • 5 Auto-ranging pathlengths ensure accurate data across the whole concentration range with no prior knowledge of sample concentration required
  • Automatic calculation of sample concentration, A260/A280 and A260/A230 Purity ratios
  • Dedicated Oligo calculation software module
  • Microarray module for labelling efficiency determination
  • Acclaro Sample Intelligence Technology
  • Identification of key contaminants such as protein and phenol, with corrected concentration
  • Differentiation between mammalian DNA and RNA and correction for RNA contamination in dsDNA samples and vice versa
  • Information alerts for abnormal purity ratios and issues with the blank
  • Digital image processing alerts to bubbles and anomalies with the sample that can affect measurement integrity
  • On-board guided troubleshooting and learning
  • Simple operation – Pipette, Measure, Clean, as with the ND1000.
  • No specialist consumables required
  • Wide dynamic range 0.06- 820 mg/ml BSA means no requirement for dilutions.
    • The maximum concentration is ~8 fold higher than on the ND1000
  • 5 Auto-ranging pathlengths ensure accurate data across the whole concentration range no prior knowledge of sample concentration required
  • Automatic calculation of sample concentration, A260/A280 and Purity ratio
  • Protein Editor allows input/saving of user-defined protein information
  • Dedicated A205 module for quantification of peptides and proteins lacking tryptophan or tyrosine residues
  • A UV Vis Spectrophotometer with native low stray light and deep UV detection
  • Proteins and Labels Module for labelling efficiency determination
  • Pre-configured modules for colourimetric protein assays including Bradford, BCA, Lowry and Pierce 660
  • Acclaro™ Sample Intelligence Technology
    • Identification of key contaminants with corrected concentration
    • Information alerts for abnormal purity ratios and issues with the blank
    • Digital image processing alerts to bubbles and anomalies with the sample that can affect measurement integrity
    • On-board guided troubleshooting and learning
  • Choice of standalone operation or PC control
  • 21 CFR part 11 compliance with optional PC Security Suite software
  • Auto blank and auto measure features streamline your workflow
  • Large glove compatible touchscreen interface with tilt – slide capability to ensure ergonomic operation
  • 3 USB ports for connectivity to external input devices (keyboard, mouse, barcode reader), USB flash drives or printer
  • Bluetooth connectivity for external keyboard
  • Wifi and Ethernet connectivity
  • Multi-language support
  • The NanoDrop™ One C model also includes an integrated cuvette reader with:
    • Heater and magnetic stirrer
    • The ability to use with arm up or down
    • Extended sensitivity (down to 0.2 ng/µl ds DNA and 0.006 mg/ml BSA)
    • Increased assay flexibility for OD measurements, protein assays, kinetics or sample in solvent.
  • Real-time saving of results
  • Export in a range of formats including .csv and .tsv
  • Export of data via USB flash drive, Ethernet or Wi-Fi
  • Free PC Data Viewer software allows you to visualise data, spectra and Acclaro™ information offline
  • Cloud connectivity with the Thermo Fisher Cloud providing secure data backup and viewing using a web browser interface
  • Intuitive search functionality with User Identifiers
  • Connect a Dymo Labelwriter 450 for lab notebook friendly adhesive label printouts
  • Printing of spectral data or reports to Wi-Fi network printers or USB connected printers
  • Full audit trail capability provided by optional Security Suite PC software
  • Full wavelength scans from 190-850 nm using the UV-Vis module
  • OD 600 measurements with cell number conversion option
  • Create your Custom Methods using the free PC Data Viewer software
  • Download pre-configured methods including chlorophyll and gold nanoparticles
  • For the NanoDrop™, One C model perform kinetic assays using the integrated cuvette reader with heater and magnetic stirrer
