NanoDrop Ultra

• Simple operation – Pipette, Measure and Clean

• No specialist consumables required

• Wide dynamic range 1 – 27,500 ng/ul ds DNA means no requirement for dilutions.

• The maximum concentration is ~8 fold higher than on the ND1000

• 5 Auto-ranging pathlengths ensure accurate data across the whole concentration range with no prior knowledge of sample concentration required

• Automatic calculation of sample concentration, A260/A280 and A260/A230 Purity ratios

• Dedicated Oligo calculation software module

• qPCR recipe calculator

• Microarray module for labelling efficiency determination

• Acclaro Sample Intelligence Technology

• Identification of key contaminants such as protein, guanidine salts and phenol, with corrected concentration

• Differentiation between DNA and RNA (mammalian, plant or bacterial) and correction for RNA contamination in dsDNA samples and vice versa

• Information alerts for abnormal purity ratios and issues with the blank with

• Digital image processing alerts to bubbles and anomalies with the sample that can affect measurement integrity

• On-board guided troubleshooting and learning

• Simple operation – Pipette, Measure, Clean, as with the ND1000.
• No specialist consumables required
• Wide dynamic range 0.06- 820 mg/ml BSA means no requirement for dilutions.
• The maximum concentration is ~8 fold higher than on the ND1000
• 5 Auto-ranging pathlengths ensure accurate data across the whole concentration range no prior knowledge of sample concentration required
• Automatic calculation of sample concentration, A260/A280 and Purity ratio
• Protein Editor allows input/saving of user-defined protein information
• Dedicated A205 module for quantification of peptides and proteins lacking tryptophan or tyrosine residues
• A UV Vis Spectrophotometer with native low stray light and deep UV detection
• Proteins and Labels Module for labelling efficiency determination
• Pre-configured modules for colorimetric protein assays including Bradford, BCA, Lowry and Pierce 660
• Acclaro™ Sample Intelligence Technology
• Identification of key contaminants with corrected concentration
• Information alerts for abnormal purity ratios and issues with the blank
• Digital image processing alerts to bubbles and anomalies with the sample that can affect measurement integrity
• On-board guided troubleshooting and learning

· Choice of standalone operation or PC control

· 21 CFR part 11 compliance with optional SciVault 2 software which can be installed on the instrument itself for local control or onto a directly connected or networked PC

· Auto blank and auto measure features streamline your workflow

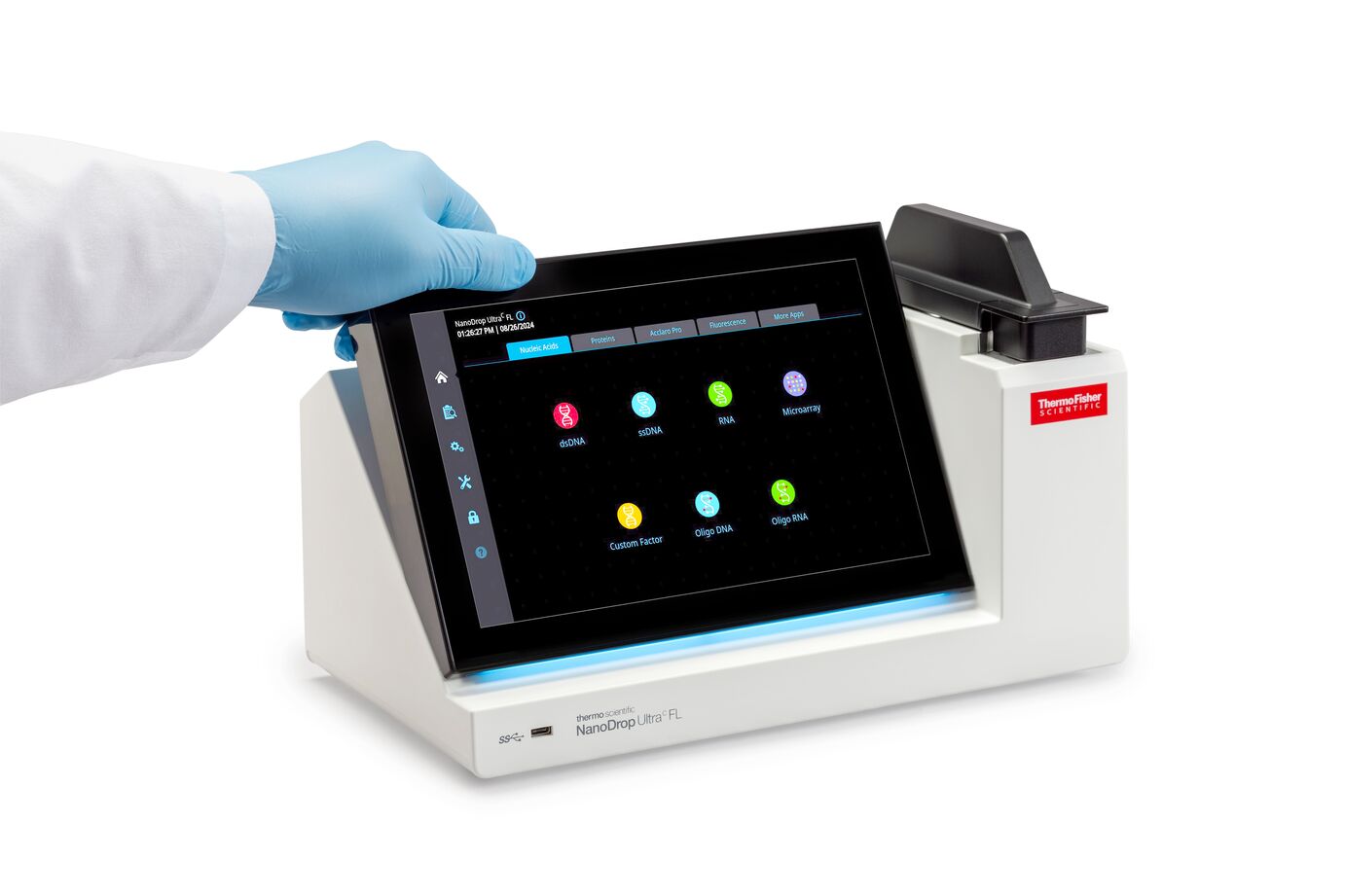

· Large 10.1 inch high resolution glove compatible touchscreen interface with tilt adjustment to ensure ergonomic operation

· LED light bar provides current instrument status

· Front USBC port for data transfer via USBC flash drives (USBA/C dual drive included)

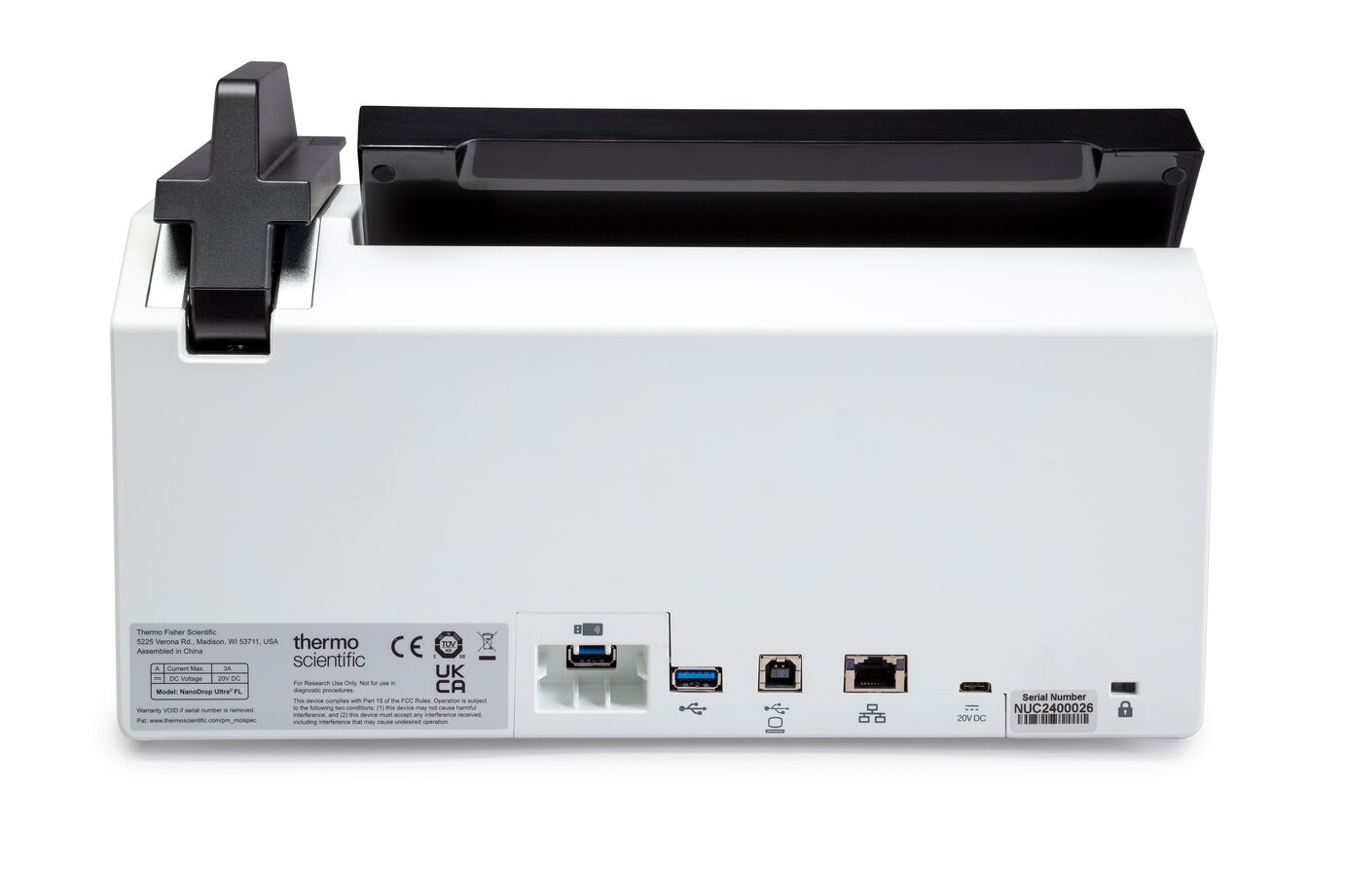

· Rear USBA port for peripheral connectivity or data export and USBB for PC connection

· Bluetooth connectivity for external keyboard or mouse

· Wifi and Ethernet connectivity

· Multi-language support

• Real-time saving of results (up to 500,000 on the internal storage)

• Export in a range of formats including .csv and .tsv

• Export of data via USB flash drive, Ethernet or Wi-Fi

• Front mounted USBC port for convenient export

• Cloud connectivity for seamless data export into Google Drive or Microsoft Onedrive

• RESTful API provides LIMS compatibility

• Intuitive search functionality with User Identifiers / Tags

• Report preview function allows you to customise your export format to meet downstream requirements

• Connect a Dymo Labelwriter for lab notebook friendly adhesive label printouts

• Printing of spectral data or reports to Wi-Fi network printers or USB connected printers

• Full audit trail capability provided by optional 21 CFR part 11 compliant SciVault 2 software

• PC control via USB connection and free of charge PC control software if required

• Full wavelength scans from 190-850 nm using the UV-Vis module

• OD 600 measurements with cell number conversion option

• Create your own Custom Methods on the instrument itself

• Download and install pre-configured methods

Fluorescence

• Blue and Red solid state LEDs provide on-pedestal microvolume fluorescent quantification

• Pre configured modules for use with the NanoDrop Ultra quantification kits

• Fluorometer mode allows you to use your preferred quantification kit

Acclaro Pro

• Additional software and factory calibration provide accurate high concentration measurements within 5% error up to 550 Abs (10mm equivalent) – up to 400 mg/ml IgG

• Take triplicate measurements on the pedestal in under 2 minutes
