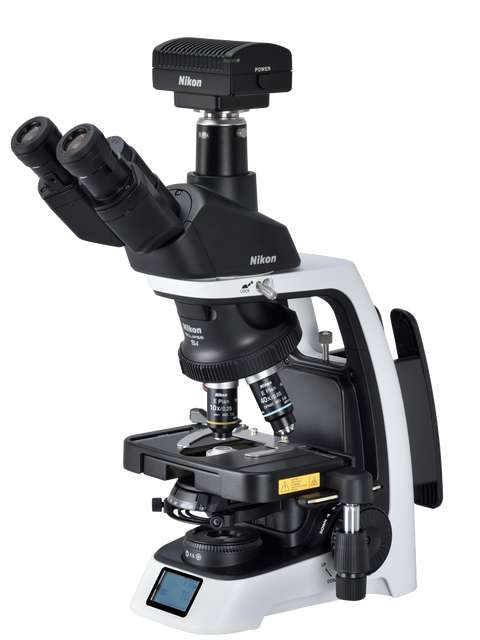

Nikon Si Series Upright Microscope
Nikon has designed the ECLIPSE Si to meet the rigorous demands of professionals who spend hours using the microscope. The ECLIPSE Si is ergonomically designed to enhance operational efficiency
This powerful instrument helps you to stay focused for longer by reducing the strain on your body. The ECLIPSE Si is the new standard in microscopes, expanding the possibilities of exploring the micro world.
Ergonomic design – reduces fatigue and promotes natural posture, including lowered stage for effortless slide replacement. The positioning of the stage focus movement and focus controls allows single hand adjustment.
Intelligent Light Intensity Management – adjusts illumination when changing objectives to prevent eye strain
Stage stop – allows upper limit to be set for z-movement, preventing slide breakage and objective damage
Status Display – illumination settings and magnification at a glance
£1,500.00
Observation methods – Brightfield, phase contrast, diascopic fluorescence, dark-field, simple polarizing
Illumination – High luminescent white LED illuminator (Eco-illumination)
Fluorescence – Diascopic Green
Eyepieces (FOV) – 10X (20), 15X (12) 10X (22), CFI 12.5X (16), CFI 15X (14.5)
Z-Focus – Coaxial coarse/fine
Nosepiece – Quintuple
Condenser – Abbe Condenser, NA 1.25
Stage – 76 (X) x 52 (Y)
Weight – 6kg
Power Consumption – 5W
