Gold coated microscope slides and coverslips
The Nano-Tec gold coated microscope slides and coverslips are designed for applications such as microscopy, AFM / SPM, nanotechnology and biotechnology. They are also used as opaque light microscopy supports or gold coated substrates for experiments. The Borofloat 33 microscope slides and coverslips are pre-cleaned before coating and coated with gold over an adhesion layer of chromium. Both chromium and gold are deposited in a dedicated high vacuum deposition system fitted with electron beam (EB) evaporation sources. The standard gold coating has a thickness of 50nm, additionally available coating thicknesses are: 10nm, 100nm and 500nm. The gold coating is not atomically flat and there are height differences in the nanometre range. Nano-Tec gold coated microscope slides and coverslips are autoclavable.
Specifications of gold coated coverslips
| Product number |
10-AU8615 |
10-AU8616 |
10-AU8617 |
10-AU8618 |
10-AU8622 | 10-AU8623 | 10-AU8624 | 10–AU8625 |
| Coverslip size |
Ø15 x 0.15 mm |
22 x 22x 0.2 mm |
||||||
| Coverslip glass |
Borofloat 33 – borosilicate glass |
Borofloat 33 – borosilicate glass |
||||||
| Adhesion film material |
Chromium, 99.98% |
Chromium, 99.98% |
||||||
| Adhesion film thickness |
5nm |
2nm |
5nm |
7.5nm |
5nm |
2nm |
5nm |
7.5nm |
| Gold film thickness |
50nm |
10nm |
100nm |
500nm |
50nm |
10nm |
100nm |
500nm |
| Gold film purity |
99,999% |
99,999% |
||||||
| Roughness |
Several nm |
Several nm |
||||||
| Packaging size |
Pkg/2 or Pkg/40 |
Pkg/40 |
Pkg/40 |
Pkg/40 |
Pkg/2 or Pkg/20 |
Pkg/20 |
Pkg/20 |
Pkg/20 |
Specifications of gold coated microscope slides
| Product number |
10-AU8631 |
10-AU8632 |
10-AU8633 |
10-AU8634 |
| Microscope slide size |
75 x 25 x 1mm |
|||
| Microscope slide glass |
Borofloat 33 – borosilicate glass |
|||
| Adhesion film material | Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Chromium, 99.98% | |||
| Adhesion film thickness |
5nm |
2nm |
5nm |
7.5nm |
| Gold film thickness |
50nm |
10nm |
100nm |
500nm |
| Gold film purity |
99,999% |
|||
| Roughness |
Several nm |
|||
| Packaging size |
each |
Pkg/10 |
Pkg/10 |
Pkg/10 |
Ordering information:
-
Nano-Tec gold coated microscope slide, 75 x 25 x mm – 50nm, Au
Nano-Tec gold coated microscope slide, 75 x 25 x 1mm – 50nm, Au (each)
£80.25 Add to basket -
Nano-Tec gold coated microscope slide, 75 x 25 x 1mm -10nm, Au
Nano-Tec gold coated microscope slide, 75 x 25 x 1 mm, 10nm, Au (pkg/10)
£606.89 Add to basket -
Nano-Tec gold coated microscope slide, 75 x 25 x 1mm – 100nm, Au
Nano-Tec gold coated microscope slide, 75 x 25 x 1mm, 100nm, Au (pkg/10)
£860.18 Add to basket -
Nano-Tec gold coated microscope slide, 75 x 25 x 1mm 500nm, Au
Nano-Tec gold coated microscope slide, 75 x 25 x 1mm 500nm, Au (pkg/10)
£1,670.20 Add to basket
-

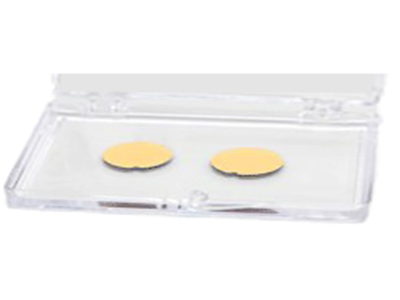

Gold coated coverslip, Ø15 x 0.15 mm, 50nm Au (Pkt/2)
Nano-Tec gold coated coverslip, Ø15 x 0.15 mm, 50nm Au (Pkt/2)
£102.17 Read more -
Gold coated coverslip, Ø15 x 0.15 mm, 50nm Au (Pkt/40)
Nano-Tec gold coated coverslip, Ø15 x 0.15 mm, 50nm Au (Pkt/40)
£1,043.48 Read more -
Gold coated coverslip, Ø15 x 0.15 mm, 10nm Au (Pkt/40)
Nano-Tec gold coated coverslip, Ø15 x 0.15 mm, 10nm Au (Pkt/40)
£886.96 Read more -
Gold coated coverslip, Ø15 x 0.15 mm, 100nm Au (Pkt/40)
Nano-Tec gold coated coverslip, Ø15 x 0.15 mm, 100nm Au (Pkt/40)
£1,081.52 Read more -
Gold coated coverslip, Ø15 x 0.15 mm, 500nm Au (Pkt/40)
Nano-Tec gold coated coverslip, Ø15 x 0.15 mm, 500nm Au (Pkt/40)
£1,945.65 Read more
-

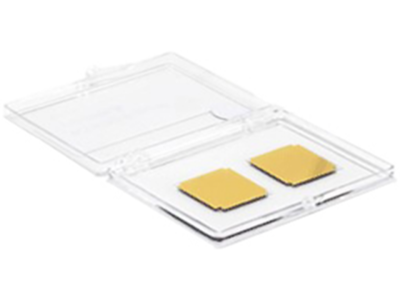

Gold coated coverslip, 22 x 22 x 0.2 mm, 50nm Au
Nano-Tec gold coated coverslip, 22 x 22 x 0.2 mm, 50nm Au (Pkt/2)
£102.17 Read more -
Gold coated coverslip, 22 x 22 x 0.2 mm, 50nm Au
Nano-Tec gold coated coverslip, 22 x 22 x 0.2 mm, 50nm Au (Pkt/20)
£910.56 Read more -
Gold coated coverslip, 22 x 22 x 0.2 mm, 10nm Au
Nano-Tec gold coated coverslip, 22 x 22 x 0.2 mm, 10nm Au (Pkt/20)
£754.31 Read more -
Gold coated coverslip, 22 x 22 x 0.2 mm, 100nm Au
Nano-Tec gold coated coverslip, 22 x 22 x 0.2 mm, 100nm Au (Pkt/20)
£1,243.75 Read more -
Gold coated coverslip, 22 x 22 x 0.2 mm, 500nm Au
Nano-Tec gold coated coverslip, 22 x 22 x 0.2 mm, 500nm Au (Pkt/20)
£2,011.11 Read more
