Stub handling tweezers

EM-Tec SEM stub gripper tweezers are specially designed tweezers to securely grip SEM stubs and mounts. With the EM-Tec SEM stub gripper tweezers, SEM sample stubs and mounts can be handled without touching them by hand. Ideal for clean handling and to avoid contamination issues.  The SEM stub gripper tweezers are all made from anti-magnetic stainless steel and are clean room compatible. The selection of the EM-Tec SEM stub gripper tweezers comprises gripper tweezers for:

  • grooved pin stubs with 12.7mm, 25.4, 19 and 32mm head diameter
  • JEOL cylinder stubs with 9.5, 12.2, 25 and 32mm diameter
  • Hitachi cylinder stubs with 15, 25 and 32mm diameter.

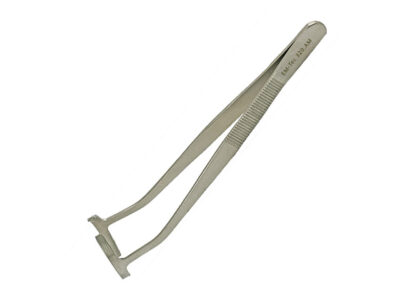

EM-Tec SEM stub gripper tweezers tips for the grooved pin stubs fit directly in the groove of the SEM stub; the angle between tip and handle is 45°. The EM-Tec SEM stub grippers for the cylinder stubs are designed to grip the SEM cylinder stubs from above; the angle between tip and handle is 30°.

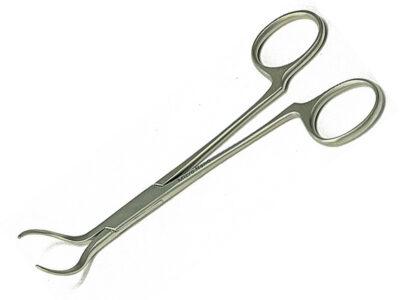

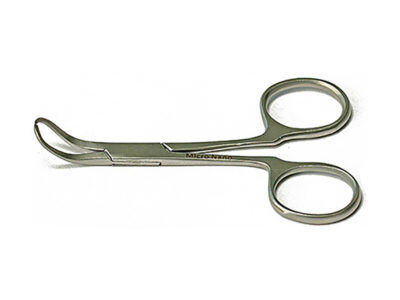

For the grooved Ø12.7 and Ø25.4mm pin stubs, there are also scissor type SEM stub grippers available; the provide a stronger grip than the tweezersstyle stub gripper. The scissor type SEM stub grippers are made from anti-magnetic stainless steel.

The SEM stub grippers can also be use to pick up a variety of other type of samples with similar diameters as the SEM stubs. Metallographic embedding of 25 and 30mm or 1” and 1-1/4” can be handled or used when etching the surface of the samples. Substrate discs can be picked up at the edge.





Product #

Style

Application

Angle

Length

50-050012

127G.AM tweezers

Grooved pin stubs Ø12.7mm (1/2”)

45°

120mm

50-050019

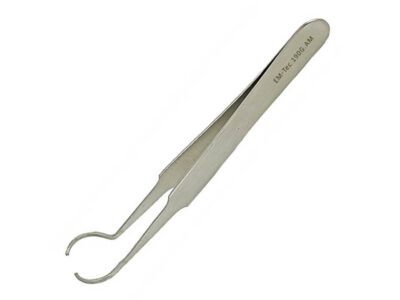

190G.AM tweezers

Grooved pin stubs Ø19mm (3/4”)

45°

120mm

50-050025

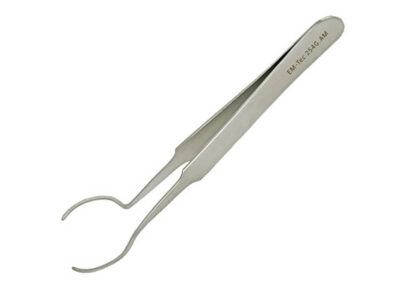

254G.AM tweezers

Grooved pin stubs Ø25.4mm (1”)

45°

120mm

50-050032

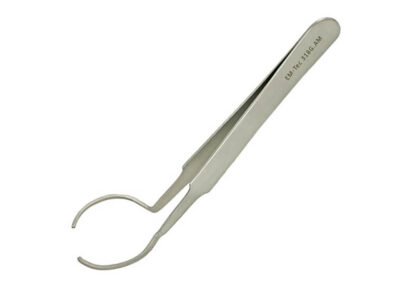

318G.AM tweezers

Grooved pin stubs Ø32mm (1-1/4”)

45°

115mm

50-050013

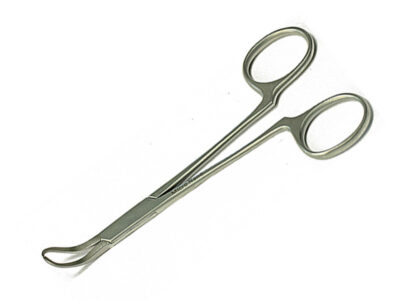

12.AM scissors type

Grooved pin stubs Ø12.7mm (1/2”)

45°

92mm

50-050026

25.AM scissors type

Grooved pin stubs Ø25.4mm (1”)

45°

135mm

50-050110

95.AM tweezers

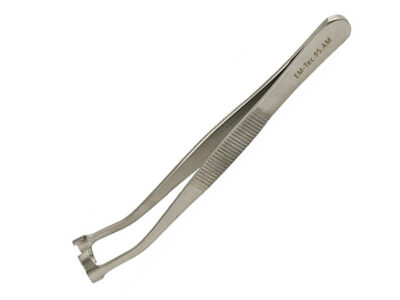

JEOL cylinder stubs Ø9.5mm

30°

114mm

50-050112

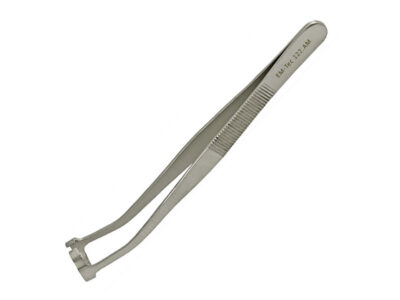

122.AM tweezers

JEOL cylinder stubs Ø12.2mm

30°

120mm

50-050150

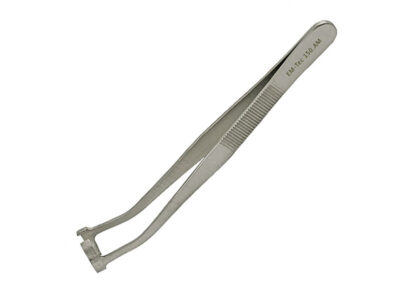

150.AM tweezers

Hitachi and ISI cylinder stubs Ø15mm

30°

120mm

50-050250

250.AM tweezers

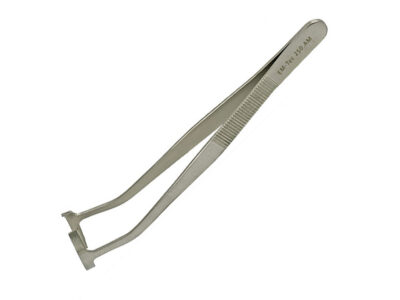

JEOL and Hitachi cylinder stubs Ø25mm

30°

115mm

50-050320

320.AM tweezers

JEOL and Hitachi cylinder stubs Ø32mm

30°

115mm
