Magnetic metal AFM discs
Magnetic metal specimen support discs are used on the AFM and SPM systems which employ a button magnet to hold metal specimen disc. Nano-Tec metal specimen discs are made of a magnetic type 430 stainless steel with a nominal thickness of 0.90mm and a tolerance of +/- 0.08mm.
With smooth edges and flat surfaces, Nano-Tec AFM / SPM discs ensure secure holding with the button magnet. Specimens can be mounted directly on the metal discs with double-sided tape, epoxy or conductive paste. If a mica specimen support is needed, they can be easily mounted on the metal support discs.
Metals specimen support discs are currently offered in:

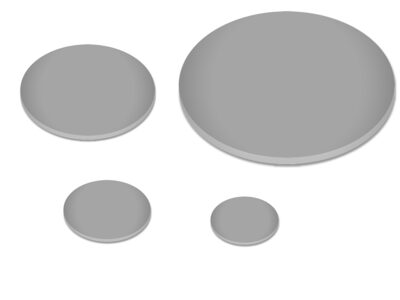

- Bright stainless-steel Nano-Tec metal AFM/SPM specimen discs. They are cleaned after manufacturing to remove the dull grey oxide layer found on other brands on AFM/ SPM discs. Â Available in five diameters: 6, 10, 12, 15 and 20mm. Packaged in a plastic tube of 50 each.

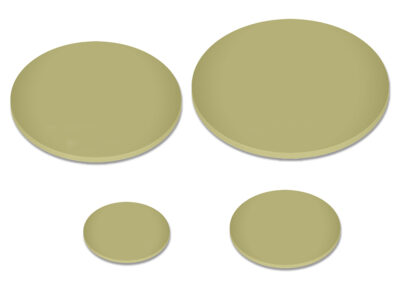

- Gold plated Nano-Tec metal AFM/SPM specimen discs with 1µm of pure gold. Gold is an inert metal with a high electrical and thermal conductivity and resist electromigration. Available in four diameters: 10, 12, 15 and 20mm. Packaged in a 40-100808 AFM disc storage box.
Ordering information
-
AFM/SPM metal support discs Ø10mm coated with 1µm of gold
Nano-Tec AFM/SPM metal specimen support discs – Ø10mm coated with 1µm gold (pkg/4)
£58.00 Add to basket -
AFM/SPM metal support discs Ø12mm coated with 1µm of gold
Nano-Tec AFM/SPM metal specimen support discs – Ø12mm coated with 1µm gold (pkg/4)
£65.13 Add to basket -
AFM/SPM metal support discs Ø15mm coated with 1µm of gold
Nano-Tec AFM/SPM metal specimen support discs – Ø15mm coated with 1µm gold (pkg/4)
£68.18 Add to basket -
AFM/SPM metal support discs Ø20mm coated with 1µm of gold
Nano-Tec AFM/SPM metal specimen support discs – Ø20mm coated with 1µm gold (pkg/4)
£73.27 Add to basket -
AFM/SPM stainless steel metal specimen support disc – Ø10mm
Nano-Tec AFM/SPM stainless steel metal specimen support disc – Ø10mm (pkg/50)
£25.87 Add to basket -
AFM/SPM stainless steel metal specimen support disc – Ø12mm
Nano-Tec AFM/SPM stainless steel metal specimen support disc – Ø12mm (pkg/50)
£28.21 Add to basket -
AFM/SPM stainless steel metal specimen support disc – Ø15mm
Nano-Tec AFM/SPM stainless steel metal specimen support disc – Ø15mm (pkg/50)
£28.21 Add to basket -
AFM/SPM stainless steel Metal specimen support disc – Ø20mm
Nano-Tec AFM / SPM Stainless Steel Metal Specimen support disc- Ø20mm (pkg/50)
£46.08 Add to basket -

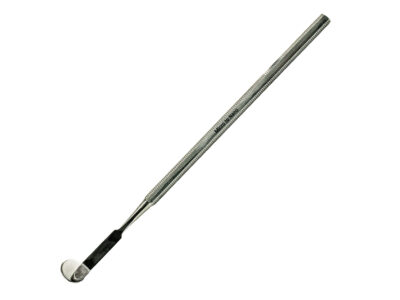

Nano-Tec P1 Magnetic pick-up tool for stainless steel AFM discs
Nano-Tec P1 Magnetic pick-up tool for stainless steel AFM discs (each)
£5.59 Add to basket -
AFM/SPM mini-vice holders with 4mm slot Ø12 x 4.5mm – magnetic
Nano-Tec AFM/SPM mini vice holders with 4mm slot, Ø12 x 4.5mm – magnetic (each)
£39.50 Add to basket -
AFM/SPM 90 degrees sample mount- Ø12 x 4.5mm – magnetic
Nano-Tec AFM/SPM 90 degrees sample mount, Ø12 x 4.5mm – magnetic (each)
£24.14 Add to basket
