Quartz crystals for FTMs

EM-Tec quartz crystals are particularly suited for thickness monitors (FTM), thickness controllers and quartz crystal microbalances (QCM) used with a range of vacuum instrumentation, including SEM sputter coaters and EM carbon evaporation systems.

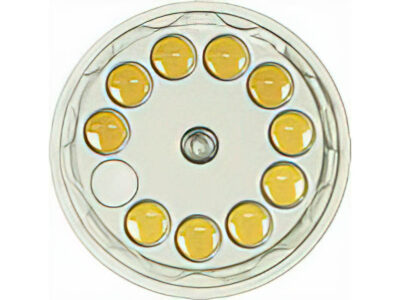

EM-Tec quartz crystals are plano-convex, 14.0mm (0.55”) in diameter and are compatible with all thickness measurement, controller and QCM systems using 5MHz and 6MHz sensors. These are used on sputter coaters, carbon coaters and vacuum deposition systems from: Cressington/Agar, Bal-Tec, Denton, Emitech, Edwards, JEOL, Leica, Polaron/Bio-rad/Fisons/Thermo VG/Quorum and Safematic. Crystals are packaged in a flat pack carousel which contains ten QCM crystals.

EM-Tec quartz crystals are available with two types of coating for the electrodes:

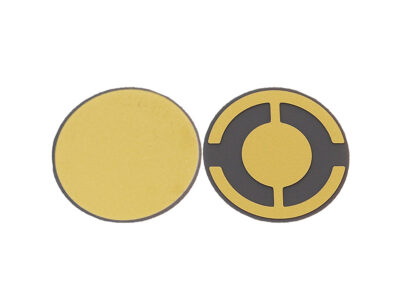

  • Gold electrodes are standard and recommended for low film stress deposition materials such as gold, silver, palladium, gold/palladium, platinum/palladium and copper

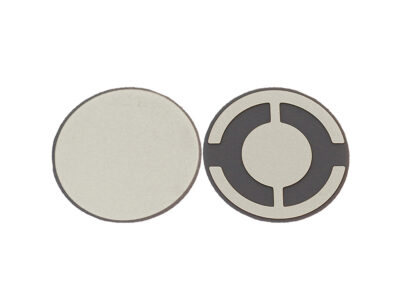

  • Silver electrodes are recommended for high film stress deposition materials such as chromium, nickel, platinum, iridium and carbon
Part #

64-010855

64-010857

64-010851

64-010853

Frequency

6 MHz

5 Mhz

Shape

Plano-convex

Plano-convex

Substrate material

Quartz

Quartz

Electrode

Gold

Silver

Gold

Silver

Diameter

14mm / 0.55”

12.5mm / 0.49”

Thickness

0.27mm

0.27mm

Packaging / pack size

Carousel/10

Carousel/10

Application

Low stress films

High stress films

Low stress films

High stress films

M-Tec quartz crystal selection table for EM sputter and carbon coaters

Make and model

6Mz / 14 mm FTM crystals

5 Mhz / 12.5 mm FTM crystals

Agar coaters

X

BAL-TEC QSG100

X

Cressington 108/208/308 series

X

Emitech K series

X

JEOL 1200 & 1300 series

X

Leica ACE 2oo / 600

X

Older Polaron/Bio-rad/Fisons/Thermo/VG

X

Safematic coaters

X

SPI modular coater (older)

X



Ordering information:
