Micro-Tec quick-check vacuum test gauges
Micro-Tec Quick-check vacuum test gauges offer a quick and easy way to test vacuum performance, test pump-down times and determine leaks in vacuum lines. Since Quick-check vacuum gauges do not require an external power source, they are ideal for field applications or for use in remote locations. The Quick-check vacuum gauge is equally useful in the laboratory for quick performance testing of vacuum pumps, vacuum lines, vacuum coating systems, vacuum ovens, etc.
This affordable tool should be a standard item in any vacuum servicing toolbox. Gauges includes a triple scale read-out on a Ø50mm dial (0 to -1 bar / 0 to -100kPa / 0 to 30 inches Hg). The gauge is housed in a robust steel case and has a clear glass window. The standard vacuum connection is a 1/4” NPT thread in brass. Additionally, versions are available with DN16KF, DN25KF and DN40KF quick-change KF vacuum flanges.

Features of Micro-Tec Quick-check vacuum test gauges:
Specifications of Micro-Tec Quick-check vacuum gauges
Product # | 61-010001-6 | 61-010001-16 | 61-010001-25 | 61-010001-40 |
Vacuum connections | 1/4” NPT male | DN16KF NW 16 |
DN25KF NW 25 |
DN40KF NW 40 |
Dial |
Ø50mm |
|||
Vacuum range |
0 to -1bar |
|||
Accuracy |
+/- 4% |
|||
Internal construction |
brass |
|||
Window |
glass |
|||
Use temperature |
-20°C to +60°C |
|||
Dimensions | 52 x 29 x 72mm | 52 x 29 x 84mm | 52 x 29 x 84mm | 52 x 29 x 90mm |
Ordering information:
-
Micro-Tec Quick-check vacuum gauge – 1/4inch NPT connection
Micro-Tec Quick-check vacuum gauge – 1/4inch NPT connection (each)
£38.18 Add to basket -
Micro-Tec Quick-check vacuum gauge – DN16KF flange
Micro-Tec Quick-check vacuum gauge – DN16KF flange (each)
£72.22 Add to basket -
Micro-Tec Quick-check vacuum gauge – DN25KF flange
Micro-Tec Quick-check vacuum gauge – DN25KF flange (each)
£75.23 Add to basket -

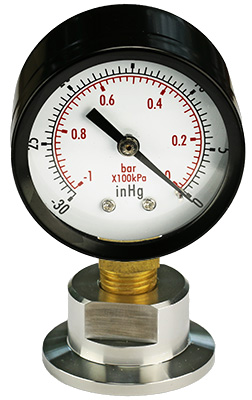

Micro-Tec Quick-check vacuum gauge – DN40KF flange
Micro-Tec Quick-check vacuum gauge – DN40KF flange (each)
£79.75 Add to basket
