AFM 90 degree specimen mounts

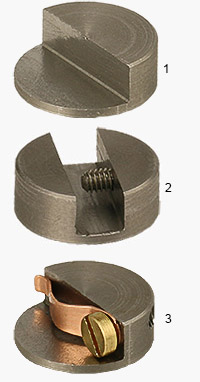

Nano-Tec 90 degrees specimen mounts are intended for mounting or clamping AFM/SPM specimens at an angle of 90 degrees to enable easy imaging of cross sections or sides of a specimens. They are made from magnetic stainless steel (alloy 430) and can be used on AFM/SPM systems which include a magnet in the specimen stage (the same systems which are using magnetic metal specimen support discs). Available Nano-Tec AFM/SPM specimen mounts and holders are:

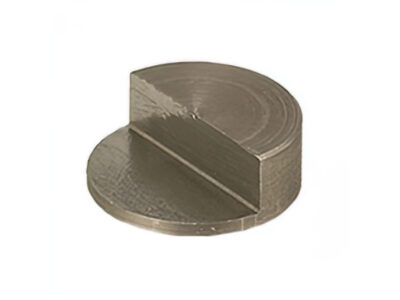

- 1 AFM/SPM 90-degree specimen mount for mounting a cross section directly against the vertical side of the mount. Use glue to adhere to the side, rather than double-sided sticky tape, since the specimen could still move, which could cause imaging artefacts. Dimensions are Ø12 x 4.5mm with a base thickness of 1mm on the thinner side.

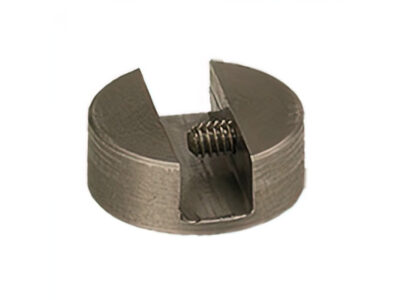

- 2 AFM/SPM mini-vice with a 4mm slot. The specimen is securely held by a small set screw. This method is quicker and ensures the holder is free from adhesives. Can be used for specimens up to 4mm or for multiple thinner specimens clamped against each other. Dimensions are Ø12 x 4.5mm with a 4mm slot.
|Product #||Maximum thickness||Dimensions||Base thickness||Mounting method||AFM type stage|
|40-100612||6mm||Ø12 x 4.5mm||1mm||Glue /adhesive||Magnet|
|40-100412||4mm||Ø12 x 4.5mm||1mm||Screw||Magnet|
AFM/SPM mini-vice holders with 4mm slot Ø12 x 4.5mm – magnetic
Nano-Tec AFM/SPM mini vice holders with 4mm slot, Ø12 x 4.5mm – magnetic (each)£39.50 Add to basket
AFM/SPM 90 degrees sample mount- Ø12 x 4.5mm – magnetic
Nano-Tec AFM/SPM 90 degrees sample mount, Ø12 x 4.5mm – magnetic (each)£24.14 Add to basket
