Quartz slides and coverslips

These slides and coverslips are primarily used for microscopy applications where enhanced UV transparency is needed, such as for fluorescence microscopy. Other applications include requirements for improved optical performance, reduced light absorption, high temperature stability, chemical stability, and UV radiation transparency. Micro-Tec quartz microscope slides and quartz coverslips are made from type GE124 high purity fused quartz. This has been the choice of quartz for microscopy applications for many decades.

 Micro-Tec quartz slides are available in four sizes and the quartz coverslips in seven sizes with two different thicknesses. For improved optical performance please consider using 0.5mm thick coverslips as a substrate.

Micro-tec quartz slides and quartz coverslips -dimensions

Product # Description Size L x W x T or diameter x T

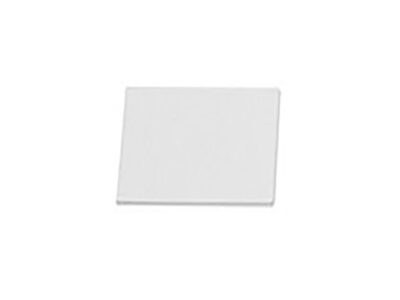

51-001111 Quartz slide 25.4 x 25.4mm 25.4 x 25.4 x 1mm

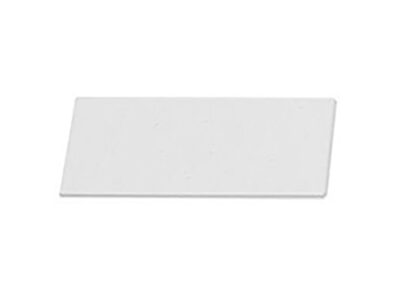

51-001112 Quartz slide 50.8 x 25.4mm 50.8 x 25.4 x 1mm

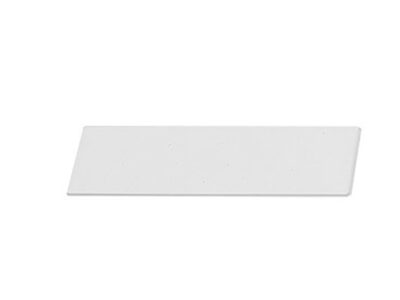

51-001113 Quartz slide 76.2 x 25.4mm 76.2 x 25.4 x 1mm

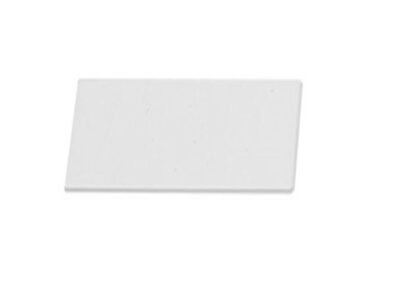

51-001123 Quartz slide 76.2 x 50.8mm 76.2 x 50.8 x 1mm

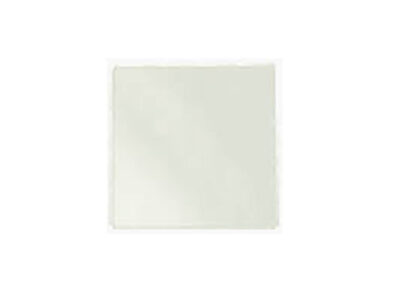

51-002106 Quartz coverslip 19 x 19 x 0.7mm 19 x 19 x 0.65 – 0.75mm

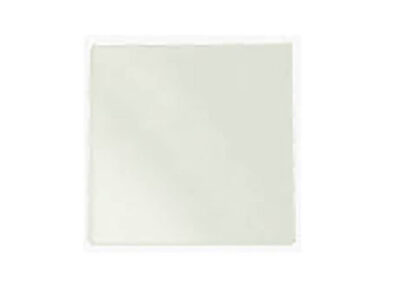

51-002107 Quartz coverslip 22 x 22 x 0.7mm 22 x 22 x 0.65 – 0.75mm

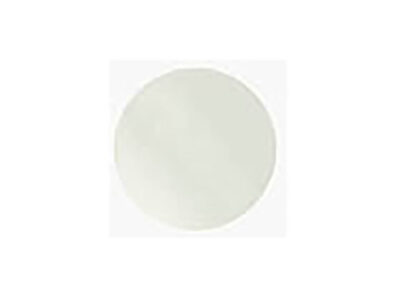

51-002115 Quartz coverslip Ø15 x0.2mm Ø15 x 0.15 – 0.25mm

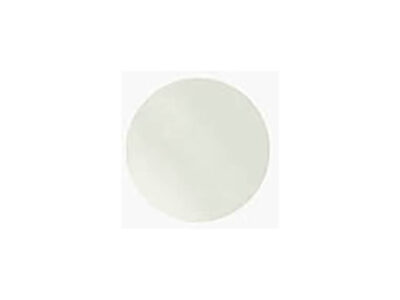

51-002118 Quartz coverslip Ø18 x0.2mm Ø18 x 0.15 – 0.25mm
51-002121 Quartz coverslip Ø22 x0.2mm Ø22 x 0.15 – 0.25mm

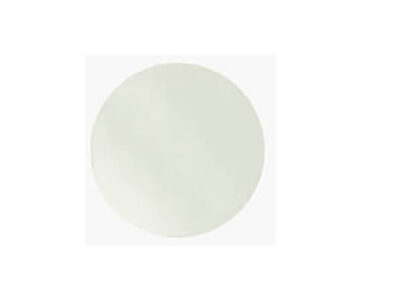

51-002125 Quartz coverslip Ø25.4 x0.2mm Ø25.4 x 0.15 – 0.25mm
51-002119 Quartz coverslip 19 x 19 x0.2mm 19 x 19 x 0.15 – 0.25mm

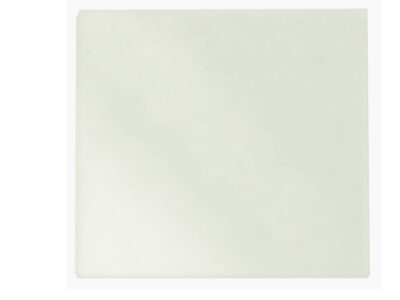

51-002122 Quartz coverslip 22 x 22 x0.2mm 22 x 22 x 0.15 – 0.25mm

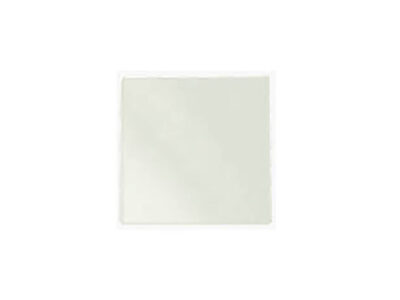

51-002124 Quartz coverslip 25.4 x 25.4 x 0.2mm 25.4 x 25.4 x 0.15 – 0.25mm

Specifications



Quartz material type

GE 124 fused quartz

Material purity

99.995% or better

Chemical Formula

SiO2

Optical transparency range

190 – 4200nm

Low absorbance optical transparency range

260 – 2600nm

Maximum temperature use

1250°C

Surface flatness

±1 degree

Surface roughness

60/40 scratch dig

Size tolerance

±0.13mm
