Polycarbonate vacuum desiccators
Micro-Tec lightweight, polycarbonate desiccators are ideal for storing specimens in a clean and moisture free environment. Shatterproof polycarbonate desiccators are much lighter and safer than glass desiccators.
They include an integrated vacuum gauge in the lid and venting/pumping valves both in the base and in the lid. The venting valve allows gentle venting to avoid disturbance of the stored specimens. Beneath the white polypropylene storage plate there is ample space for a desiccant, needed to maintain a moisture-free environment. The desiccator base includes a large diameter rim for added stability. The soft neoprene O-ring provides a vacuum seal which does not require grease. Micro-Tec polycarbonate vacuum desiccators can hold a vacuum level of 150mbar for over three weeks. The lid includes a large, ribbed knob for easy lifting and handling. Available in two sizes: 150mm and 250mm diameter.
These polycarbonate desiccators are also ideal for degassing of epoxies and resins – two valves allow precise adjustment of the vacuum level. Both the pumping speed and the venting speed can be controlled separately.
1 Integrated vacuum gauge
2 Venting valve
3Â Soft neoprene o-ring seal
4 Pumping valve
5 Sample storage plate
6Â Space for desiccant
- Made from clear, shatterproof polycarbonate
- Integrated vacuum gauge in lid
- Two venting/pumping valves with hose connectors
- Polypropylene sample storage plate
- Desiccant chamber underneath the storage plate
- Soft neoprene O-ring seal
- Large, ribbed knob on lid
- Easy sample location through clear wall and lid
Specifications and dimensions
Product | Micro-Tec PD150 | Micro-Tec PD250 |
Product # | 13-004150 | 13-004250 |
Inside diameter | 150mm | 250mm |
Outside diameter | 180mm | 280mm |
Inside storage height | 100mm | 100mm |
Inside lid height | 50mm | 8 mm |
Total height | 290mm | 360mm |
Volume | 2.2L | 6.5L |
Weight | 0.8Kg | 1.75K |
Hose connection on valves (2x) |
Ø8 mm |
|
Integrated vacuum gauge |
0 to -1kg/cm2 (0 to -14.2psi) |
|
Service temperature |
5 – 40°C |
Ordering information:
-

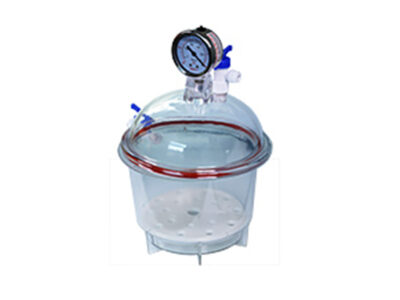

Micro-Tec PD150 polycarbonate desiccator, diameter 150mm
Micro-Tec PD150 polycarbonate desiccator – diameter 150mm (each)
£150.47 Add to basket -

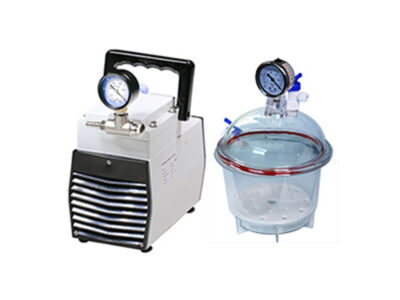

Micro-Tec PD150 polycarbonate desiccator- diameter 150mm set
Micro-Tec PD150 polycarbonate desiccator diameter: 150mm, complete with Micro-Tec MP850S diaphragm pump and connection hose – 230V / 50Hz (each)
£721.24 Add to basket -

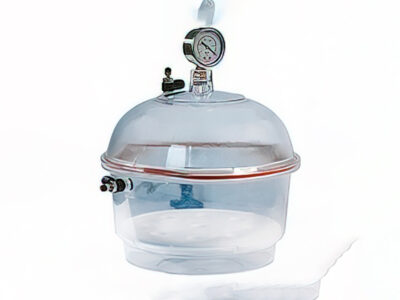

Micro-Tec PD250 polycarbonate desiccato r- diameter 250mm
Micro-Tec PD250 polycarbonate desiccator, diameter: 250mm (each)
£230.22 Add to basket -

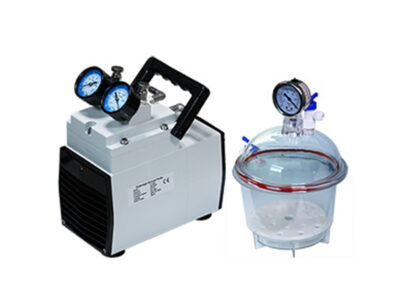

Micro-Tec PD250 polycarbonate desiccator- diameter 250mm
Micro-Tec PD250 polycarbonate desiccator, diameter: 250mm, complete with Micro-Tec MP850S diaphragm pump and connection hose, 230V / 50Hz (each)
£773.41 Add to basket
