PIE Scientific TEM rod store

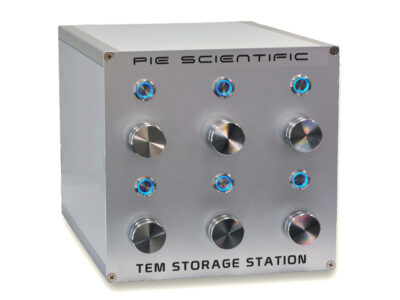

TEM specimen rod storage system from PIE Scientific is a compact unit that enables storage of up to six TEM specimen rods under vacuum. Six storage cells can be individually configured to support specimen rods from FEI/ThermoFisher, JEOL or Hitachi. For larger EM laboratories the system can be extended by chain linking multiple units.

The TEM sample rod storage system can share the same pump as a Tergeo-EM plasma cleaner and can be pumped with a separate turbo or dry scroll pump station. For details see: vacuum pumps.

  • Fully automated
  • Storage cells can be individually pumped and vented with electronic solenoid valves
  • LED indicates the cell is under the vacuum, light off vented
  • Minimal metal tubing to minimize outgassing, and reduce contamination
  • Multiple storage stations can be chained linked to share a same vacuum pump
  • Metal tubes under vacuum – minimal outgassing
  • Pumped by an external turbo pump station or by an dry scroll pump
  • Easy to operate, easy to maintain and service
  • The storage station can also share the oil-free dry scroll vacuum pump with the Tergeo-EM plasma cleaner

Vacuum and gas connections



On the back there is a port for introducing a venting gas (pure argon, nitrogen etc) and a NW25 or NW40 pumping port for connecting to either a turbo pumping station or dry scroll pump. For details see: vacuum pumps.

The TEM specimen rods storage system requires a suitable vacuum pump.

Our recommendation is the Edwards nXDS6i dry scroll vacuum pump (A73501983). For details see:  vacuum pumps.





Dimensions:

240mm(W) X 240mm (H) X 368mm (D), distance between storage cells: 80mm
