High pressure freezer

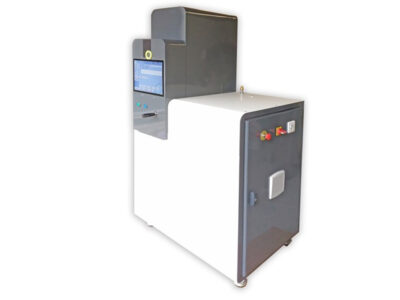

HPM Live μ developed and manufactured by CryoCapCell is an advanced, automated high pressure freezing system for the vitrification of specimens.  HPM Live μ can be used for the vitrification of a wide range of cell and tissue types – a range of holders enables selection of the optimal holder for each specimen type. HPM Live μ is the only existing commercial solution to enable live correlative light and electron microscopy (CLEM) experiments.

  • Automatic specimen transfer in 1.26 seconds
  • Start-up cycle fully controlled by HPM Live μ
  • Preparation cycle lasts 20 minutes
  • User defined parameters
  • 15” inch HD colour touchscreen
  • Data and curves are automatically saved and can be sent by e-mail
  • Vitrification of two successive samples in 45 seconds
  • Optimized workflow for CryoCapsule®
  • Open system and flexible to use – also compatible with a range of sample carriers
  • Remote control and online diagnostics if connected to internet

Rapid transfer in 1.26 seconds

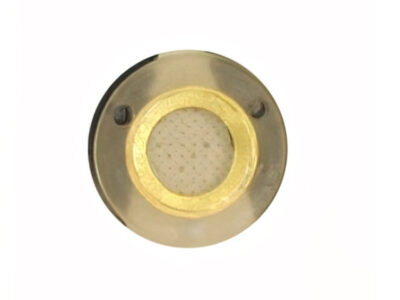

CLEM by high pressure freezing enables researchers to go beyond human speed and relate a live cellular event to its ultrastructure. HPM Live μ is a unique tool that optimises the entire workflow of CLEM utilising vitrification by high pressure freezing. At the heart of the process is the CryoCapsule which comprises a special sapphire disc printed with carbon coordinates and a gold spacer maintained together by a polyethylene ring. The CryoCapsule is entirely harmless to biological material and protects the specimen against mechanical damage during specimen preparation.



HPM Live µ is the first high pressure freezing system that can be interfaced directly to a confocal / fluorescence / light microscope to allow the specimen to be examined live before initiating the vitrification process.

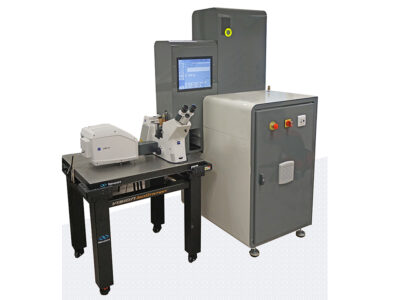

HPM Live µ integrates an automated specimen arm with a light microscope by holding the CryoCapsule containing the specimen above the objective. At the appropriate time the arm is activated and in less than two seconds the specimen is vitrified.

Specimen holders and clamps

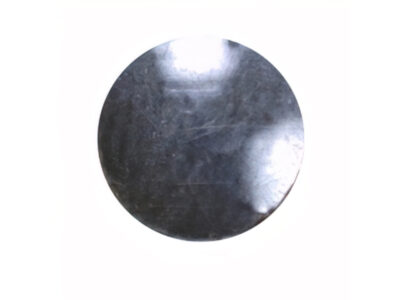

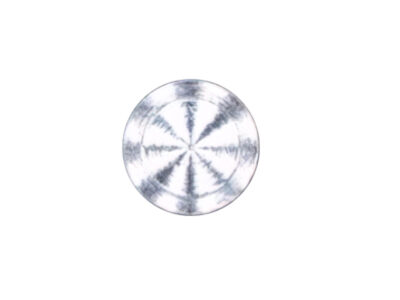

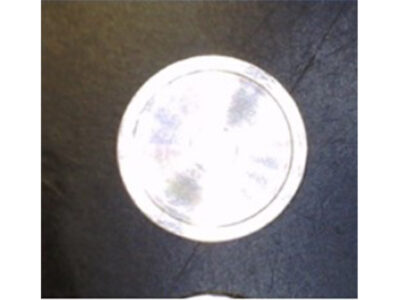

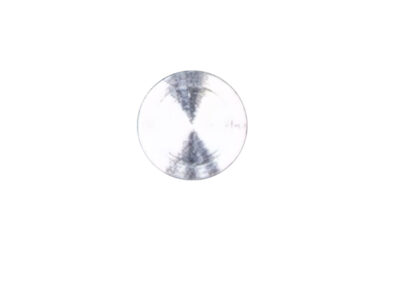

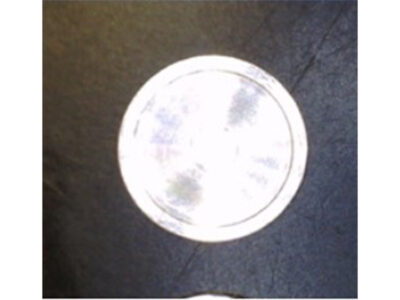

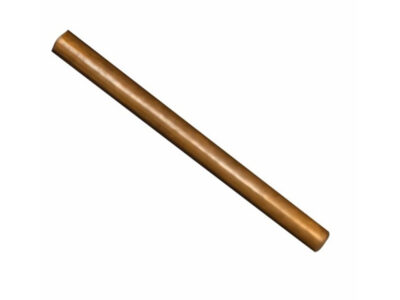

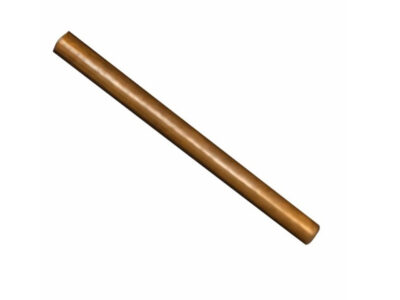

HPM Live u offers a choice of specimen holders to suit most applications. In addition to CryoCapsule the HPM Live u can be used with standard specimen discs (3mm and 6mm), sapphire discs and copper tubes.

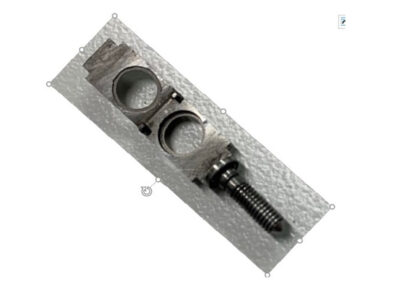

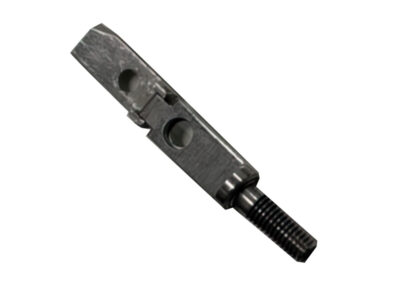

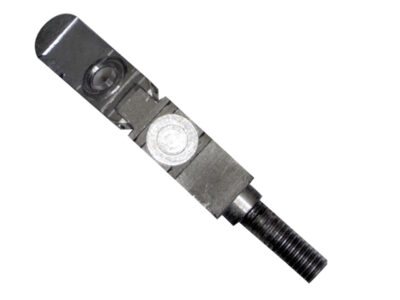

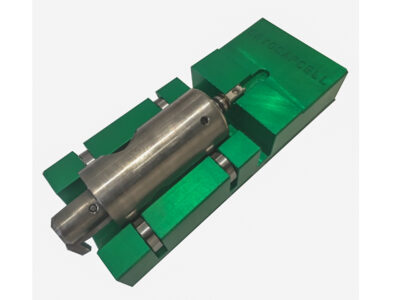

Each specimen holder uses a dedicated clamp to ensure optimal positioning for the vitrification process.

To configure a working HPM Live u you will require the following:

  1. HPM Live u main instrument
  2. Specimen clamps of your choice
  3. Specimen holders to fit clamps
  4. Liquid Nitrogen dewar (if required)
  5. Additional accessories

Please add your required items using the quote buttons below and we will endeavour to provide your quotation as quickly as possible

Specification of High Pressure Freezer Live μ

  • Width: 995,5mm
  • Depth: 1064mm
  • Height: 1855mm
  • Weight: 450kg
  • Voltage: 240V
  • Installed power: 7000W
  • Dry air gas at 6 bars/87psi
  • LN2 dewar capacity: 9 litres

Instrument connected to a nitrogen container of 60 to 100 litres

  • LN2 consumption: 25 litres per day, including cooling
  • Alcohol reservoir: 0.5 litre

Ordering information:

Main instrument

To configure a working HPM Live u system please add the main instrument and specimen holders to your quote and then add any other accessories from the list of options below:

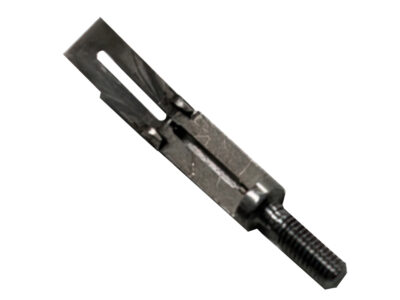

Specimen clamps

Please select specimen clamps from the options below and then select the corresponding specimen holders:



Specimen carriers

Please select the appropriate carriers for your clamps selected from above:

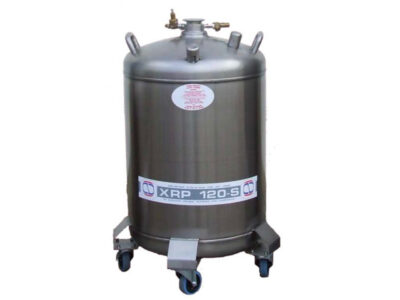

HPM liquid nitrogen dewars

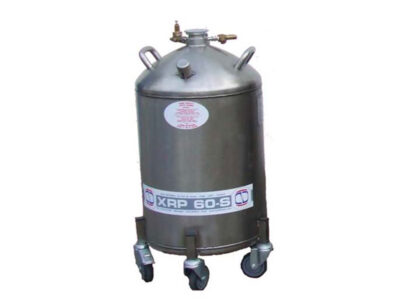

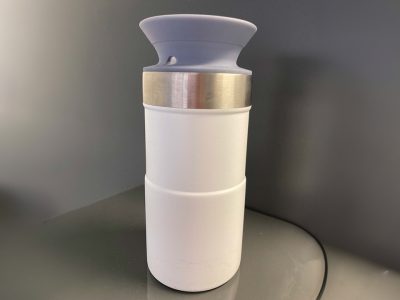

A liquid nitrogen supply dewar is required to run the HPM Live u. If you do not have an existing dewar please select on of the options below:

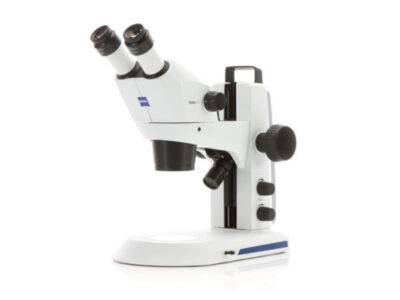

HPM accessories

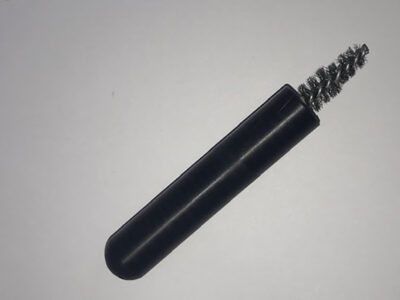

For optimal use of the HPM Live u it is sometimes useful to have additional accessories from the options below:
