Gatan 3View pins and tweezers
Gatan 3View specimen pin stubs
Gatan 3View serial block face systems use special specimen pins. Labtech offers 3view specimen pins with two sizes of flat surface area:
- Standard Ø1.4mm flat
- Larger Ø2.4mm flat
3view-compatible pins have a Ø2mm pin, Ø3mm head with a cone top and a total height of 12.5mm. They are manufactured from vacuum grade aluminium.

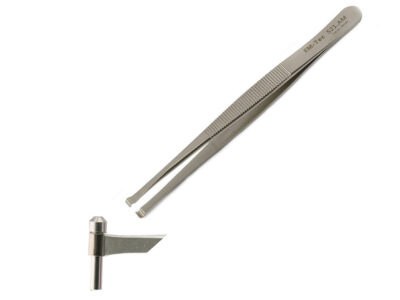

Gatan 3View specimen pin handling tweezers
Swiss-made, EM-Tec 521.AM Gatan 3View stub handling tweezers are especially designed for handling Ø2mm 3View specimen pins. They are intended as side grippers for easy gripping and holding the pin to facilitate handling and storing 3View pins. Tweezers are 118mm long.
Features of Gatan 3View stub handling tweezers:
- Polished edges for good contact
- Matt anti-glare finish
- Side grippers
- Serrated handles for extra grip
- Low carbon anti-magnetic stainless steel

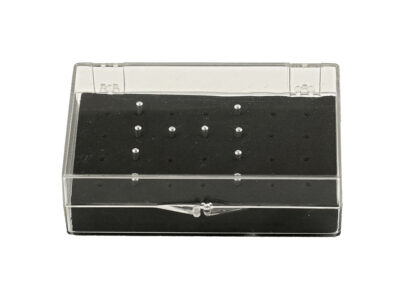

EM-Tec PS28 storage box for Gatan 3View specimen pins
The EM-Tec PS28 pin storage box has been developed to store 28 Gatan 3View specimen pins. They are made from clear polystyrene with two hinges and snap-lock the pins, which are held by a custom-made, high density closed cell NBR foam with holes. High density foam is crumble resistant and elastic enough to allow repetitive loading and retrieving of pins.
Outside dimensions:Â 120 x 84 x 36mm.
Ordering information:
-

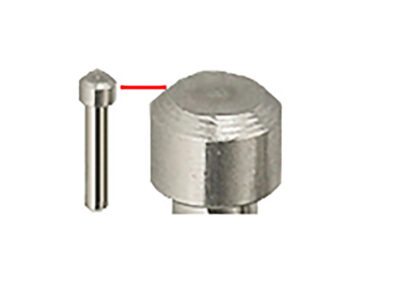

Gatan 3View SEM pin stubs Ø2.4mm flat- Ø2mm pin x 12.5mm H
Gatan 3View system SEM pin stubs with large Ø2.4mm flat, Ø2mm pin x12.5mm H- aluminium (pkg/10)
£8.78 Add to basket -
Gatan 3View SEM pin stubs 2.4mm flat- Ø2mm pin x 12.5mm H
Gatan 3View system SEM pin stubs with large Ø2.4mm flat, Ø2mm pin x 12.5mm H – aluminium (pkg/50)
£43.89 Add to basket -

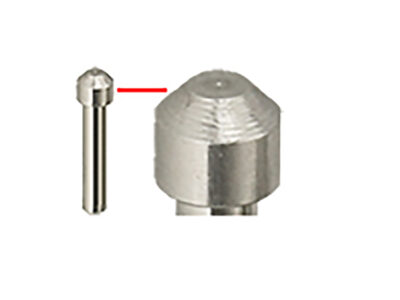

Gatan 3View SEM pin stubs Ø1.4mm flat- Ø2mm pin x 12.5mm H
Gatan 3View system SEM pin stubs with standard Ø1.4mm flat, Ø2mm pin x 12.5mm H – aluminium (pkg/10)
£8.78 Add to basket -
Gatan 3View SEM pin stub s- Ø1.4mm flat- diameter2mm pin x 12.5mm H
Gatan 3View system SEM pin stubs with standard Ø1.4mm flat, Ø2mm pin x 12.5mm H – aluminium (pkg/50)
£43.89 Add to basket
