MM3A nanomanipulators and plugin tools
One of the most fascinating experiments in recent nanotechnology research is the precise manipulation of nanoparticles, carbon nanotubes and other specimens at nano-scale. Kleindiek’s  versatile and easy-to-use nanomanipulor tools can transform your microscope from an observational instrument into a hands-on tool.
At the heart of nanomanipulation is the market-leading Kleindiek MM3A-EM micromanipulator. The new encoded version MM3E joins the range to give repeateable precision. The MM3A-EM and MM3E are used in a wide spectrum of SEM, FIB and other microscope applications by adding new capabilities and functionality to your instrument.
Brochure downloads:
MM3A features:
- Cartesian movement
- Control with iLO software GUI
- A wide selection of plug in tools
- Precison and accuracy

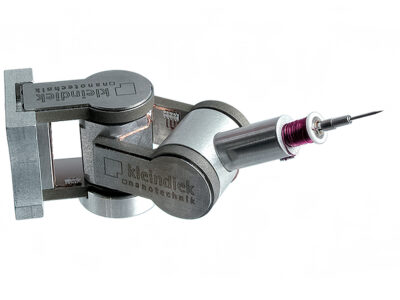

MM3E-EM micromanipulator

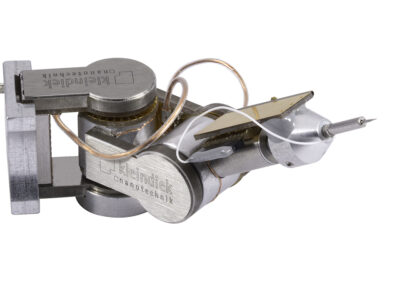

MM3E encoded micromanipulator
Plug-in tools for MM3A-EM and MM3E micromanipulators
The functionality of MM3A-EM and MM3E nanomanipulators can be greatly expanded by the addition of a range of plug-in tools for different applications. They can be quickly and easily exchanged using a push /pull fit. The RoTip rotational tip can be combined with other plug-in tools to give additional movement and positioning.
Click on the images below for more information on each plug-in tool

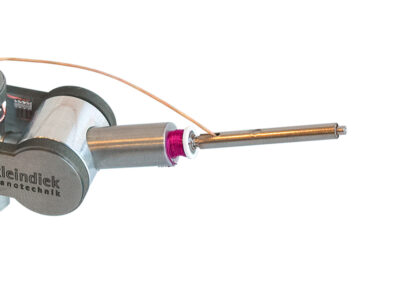

RoTip rotational tip

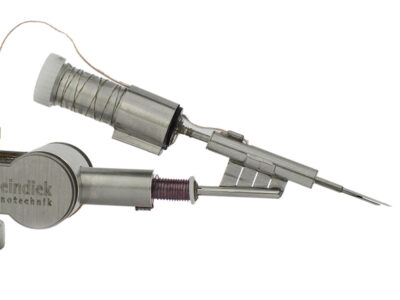

GIS gas injection system
CLP cryo microgripper for cryo FIB

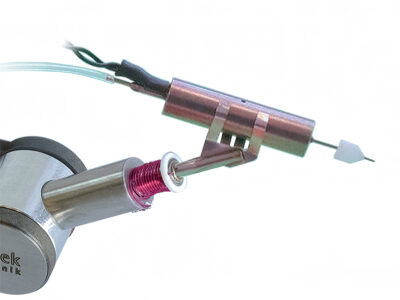

MIS micro injection system
MTW micro tweezers
iLO micromanipulator control software
To configure a working Kleindiek micromanipulator system you will require the following:
- One or more MM3A-EM or MM3E manipulators
- A mounting bracket for your chosen SEM/FIB
- One or more plug-in toolsÂ
- Other optional accessories as required
Please add your required items using the quote buttons below and we will endeavour to provide your quotation as quickly as possible
Length: 62.1mm
Width: 20.4mm
Height: 25.4mm
Weight: 45g
Operating range: AB 240°.Operating range C: 12mm
Speed AB: up to 10mm/s
Speed C: up to 2mm/s
Resolution A: 10-7 rad (5nm)
Resolution B: 10-7 rad (3.5nm)
Resolution C: < 0.5nm
Holding force: 1N
Holding torque: 3 to 4Nmm
Lift Y: 5g
Maximum probing voltage: 100V
Probing signal resistance: 7.0Ω
Temperature range: 273K to 353K. UHV version: 273K to 393K
Lowest pressure: 10-7mbar
UHV version: 2 × 10-10mbar
Mounting: M4 tapped hole
Material: Stainless steel, aluminium
Note: A = left/right, B = up/down C = in/out
Resolution XY < 0.5 nm
Resolution Z < 0.02 nm
Resolution axial-R < 0.5e-6°
Repeatablity XYZ < 2 µm
Repeatablity axial-R < 0.02°
Drift < 1 nm/min
Compucentric rotation concentricity ~30 µm
Ordering information:
Kleindiek micromanipulators for electron microscopy
To configure a working MM3 micromanipulator system please add the the model of choice to your quote and then add the appropriate plug-in tools, mount and other accessories from the list of options below:
Plug in tools and options
-
Gas injection system
Gas injection system – gas injection plug-in for the MM3A-EM. The system includes an injection needle, heated & temperature controlled reservoir, proportional valve, control unit and an operator’s handbook.
Price On Request £0.00 Add to basket -
Rotational tips (pack of three)
Three Rotational Tips – A plug-in tool for the MM3A-EM to allow 360° unlimited axial rotation of the tip holder or a TEM grid holder. The tip comes with a control module- and an operator’s handbook.
Price On Request £0.00 Add to basket -
Rotational tips (pack of four)
Four Rotational Tips – A plug-in tool for the MM3A-EM to allow 360° unlimited axial rotation of the tip holder or a TEM grid holder. The tip comes with a control module- and an operator’s handbook.
Price On Request £0.00 Add to basket -
Mini-tweezers
Mini Tweezer – A mini tweezer plug-in for the MM3A-EM.
Price On Request £0.00 Add to basket -
Rotational tip
A plug-in tool for the MM3A-EM to allow 360° unlimited axial rotation of the tip holder or a TEM grid holder. The tip comes with a control module, a TEM grid holder and an operator’s handbook.
Price On Request £0.00 Add to basket -
Microinjection system
ESEM-compatible microinjector plug-in for the MM3A-EM. The system includes a microvalve, a control module, a power supply, a vacuum flange, vacuum and air-side cabling/piping with feedthroughs and an operator’s handbook.
Price On Request £0.00 Add to basket -
Micro soldering unit
Micro Soldering Unit – Soldering unit plug-in for the MM3A-EM. The System is comprised of a heated tip holder and temperature controller.
Price On Request £0.00 Add to basket -
Rotational tips (pack of two)
Two Rotational Tips – A plug-in tool for the MM3A-EM to allow 360° unlimited axial rotation of the tip holder or a TEM grid holder. The tip comes with a control module- and an operator’s handbook.
Price On Request £0.00 Add to basket -

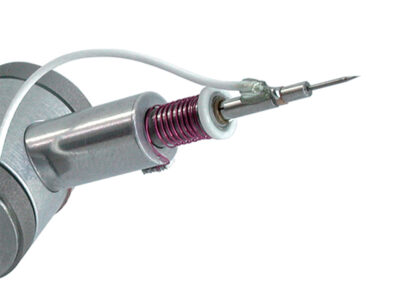

Cryo low current measurement kit
Cryo Low-Current measurement Kit – A plug-in tool for the MM3A-EM to allow low-current- low-capacity measurements on conductive samples in a cryo environment. Each kit consists of a probe tip holder- vacuum and air-side triax cabling and a vacuum feedthrough. A vacuum flange and an operator’s handbook is also included with each delivery. One kit required per MM3A.
Price On Request £0.00 Add to basket -
Low current measurement kit for UHV
A plug-in tool for the MM3A-UHV to allow low-current, low-capacity measurements on conductive samples in UHV chambers. Each kit consists of a probe tip holder and cabling according to the UHV chamber specification. An operator’s handbook is also included with each delivery. One kit required per MM3A-UHV.
Price On Request £0.00 Add to basket -

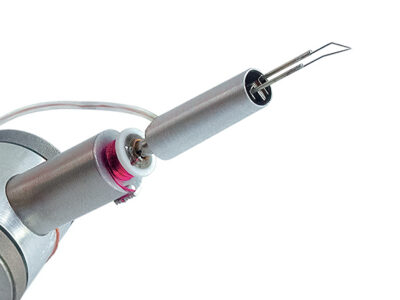

Microgripper (VS5)
A microgripper plug-in for the MM3A-EM.
Price On Request £0.00 Add to basket -
Thermally Insulated low-current measurement kit
A plug-in tool for the MM3A-EM to allow low-current, low-capacity measurements on conductive samples with a temperature of up to 200° C. Each kit consists of a probe tip holder, vacuum and air-side triax cabling and a vacuum feedthrough. A vacuum flange and an operator’s handbook is also included with each delivery. One kit required per MM3A.
Price On Request £0.00 Add to basket
