Sticky gel carrier boxes
Micro-Tec sticky gel carrier boxes are designed to transport, protect and store sensitive specimens, parts and devices. The boxes contain a layer of silicone-based, crossed-linked gel in the base of the box. They are intended for flat specimens with smooth surfaces, such as silicon substrate chips, semiconductor devices, MEMS, optoelectronics, optics, etc.
Specimens with a smooth surface easily adhere to the sticky gel, but they can be easily removed from the gel surface using tweezers. The retention level depends on the smoothness and weight of the specimen surface. Micro-Tec gel carrier boxes are comparable with GEL-Pak boxes, but with a retention level that is four times greater. The hinged boxes include a printed grid for easy specimen location, a black base and a clear lid.
Also available with an anti-static black ABS base for ESD sensitive parts.
Available in four sizes:
- Micro-Tec GB22 clear/black gel carrier box, inside dimensions 47 x 47 x 5mm
- Micro-Tec GB32 clear/black gel carrier box, inside dimensions 60 x 40 x 10mm
- Micro-Tec GB33 clear/black gel carrier box, inside dimensions 75 x 75 x 7mm
- Micro-Tec GB44 clear/black gel carrier box, inside dimensions 105 x 105 x 8mm
Specifications
Product code | Type | Lid/base | Anti-static | Colour | Pack size | Internal dimensions (L x W x H) | External Dimensions |
13-022020 | GB22 | PS/PS | No | Transp./Black | Pkg/10 | 47 x 47 x 5mm | 61 x 54 x 10 mm |
13-023020 | GB32 | PS/PS | No | Transp./ Black | Pkg/10 | 60 x 47 x 10mm | 74 x 66 x 15 mm |
13-023030 | GB33 | PS/PS | No | Transp./ Black | Pkg/5 | 75 x 75 x 7mm | 95 x 85 x 12 mm |
13-024040 | GB44 | PS/PS | No | Transp./ Black | Pkg/5 | 105 x 105 x 8mm | 130 x 120 x 14 mm |
13-022025 | GB22AS | PS/ABS | Yes | Transp./ Black | Pkg/10 | 47 x 47 x 5mm | 61 x 54 x 10 mm |
13-023025 | GB32AS | PS/ABS | Yes | Transp./ Black | Pkg/10 | 60 x 40 x 10 mm | 74 x 66 x 15mm |
13-023035 | GB33AS | PS/ABS | Yes | Transp./ Black | Pkg/5 | 75 x 75 x 7mm | 95 x 85 x 12mm |
13-024045 | GB44AS | PS/ABS | Yes | Transp./ Black | Pkg/5 | 105 x 105 x 8mm | 130 x 120 x 14 mm |
Ordering information:
-

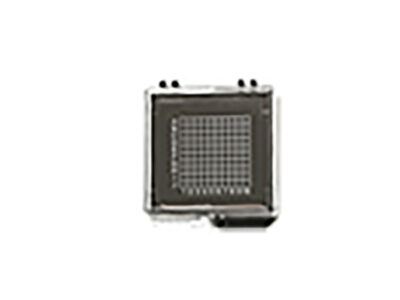

Micro-Tec GB22 gel carrier box- clear / black polystyrene – 61 x 54 x 10mm
Micro-Tec GB22 gel carrier box, clear / black polystyrene – 61 x 54 x 10mm (pkg/10)
£63.35 Add to basket -

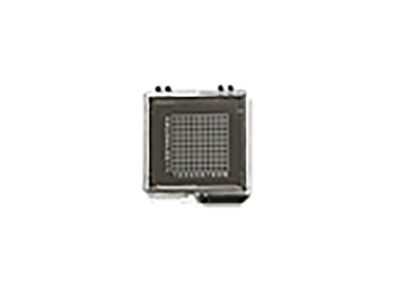

Micro-Tec GB22AS gel carrier box, clear lid, anti-static, black ABS base – 61 x 54 x 10mm
Micro-Tec GB22AS gel carrier box, clear lid, anti-static black ABS base – 61 x 54 x 10mm (pkg/10)
£69.43 Add to basket -

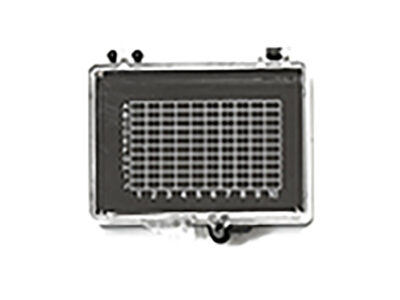

Micro-Tec GB32 gel carrier box, clear, black polystyrene – 74 x 66 x 15mm
Micro-Tec GB32 gel carrier box, clear / black polystyrene – 74 x 66 x 15mm (pkg/10)
£69.72 Add to basket -

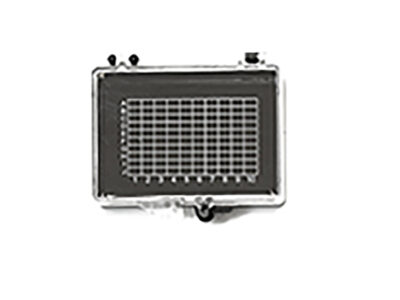

Micro-Tec GB32AS gel carrier box, clear lid, anti-static black ABS base – 74 x 66 x 15mm
Micro-Tec GB32AS gel carrier box, clear lid, anti-static black ABS bas e- 74 x 66 x 15mm (pkg/10)
£80.58 Add to basket -

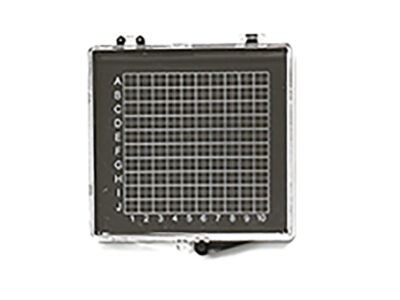

Micro-Tec GB33 gel carrier box- clear, black polystyrene – 95 x 85 x 12mm
Micro-Tec GB33 gel carrier box, clear, black polystyrene – 95 x 85 x 12mm (pkg/5)
£47.65 Add to basket -

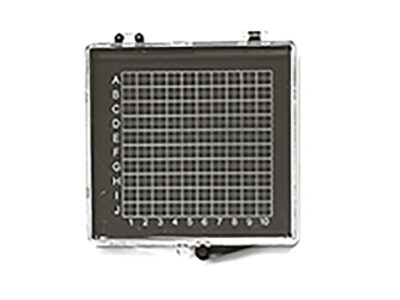

Micro-Tec GB33AS gel carrier box, clear lid, anti-static black ABS base – 95 x 85 x 12mm
Micro-Tec GB33AS gel carrier box- clear lid/ anti-static black ABS base- 95x85x12mm (pkg/5)
£54.67 Add to basket -

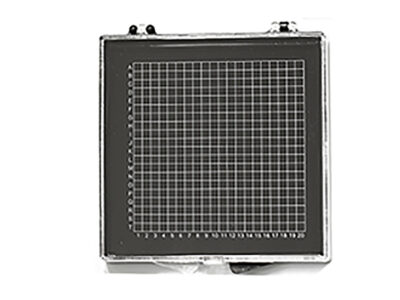

Micro-Tec GB44 gel carrier box, clear, black polystyrene – 130 x 120 x 14mm
Micro-Tec GB44 gel carrier box, clear, black polystyrene – 130 x 120 x 14mm (pkg/5)
£59.69 Add to basket -

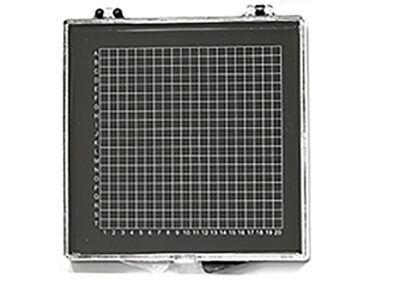

Micro-Tec GB44AS gel carrier box, clear lid, anti-static black ABS base – 130 x 120 x 14mm
Micro-Tec GB44AS gel carrier box, clear lid, anti-static black ABS base – 130 x 120 x 14mm (pkg/5)
£69.72 Add to basket
