AFM cantilever tweezers
Micro-Tec AFM/SPM cantilever tweezers are useful tools for securely and easily picking up AFM and SPM cantilevers.
AFM/SPM tips are mostly supplied in Gel-Pak boxes and need to be gently lifted of the adhesive layer. The specially formed tip enables gripping at the side of the cantilever and pulling the silicon cantilever from its packaging. They are available in anti-magnetic stainless steel and titanium in the same design with a length of 118mm. Both materials are clean-room compatible.

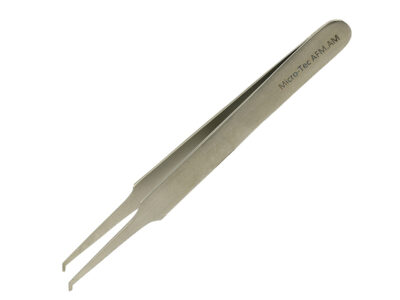

- Anti-magnetic stainless steel AFM/SPM tweezers are intended for standard AFM / SPM cantilevers/tips and standard applications. Satin polished surface. Not recommend for use in or near magnetic fields.

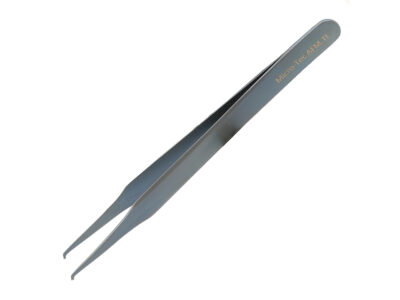

- Premium titanium light-weight, fully non-magnetic AFM / SPM tweezers especially made for magnetic tips and for those users who prefer lighter cantilever tweezers. Matt blue anodized surface.
50-040001 Micro-Tec AFM / SPM cantilever tweezers
The material used for manufacturing 50-040001 Micro-Tec AFM/SPM cantilever tweezers is a selected grade of non-magnetic AISI 304.
- AISI 304 is an austenitic stainless steel (DIN 1.4301, X 5CrNi 18-10) and is the most common type of stainless steel
- Contains 18-20 wt% chromium and contains significant amounts of nickel as an additional alloy component
- Normally non-magnetic, but becomes slightly magnetic when cold worked
- Cannot be hardened by heat treatment
- Can be work hardened –Â annealing is recommended for relieving stress
- Good corrosion resistance to most solvents, salts and moderate acids
- Generally used where corrosion resistance is a requirement
- Typical applications include microscopy, electronic industry, fine mechanics and laboratory
General composition of AISI 304
Element |
Wt. % |
C |
≤0.08 |
Cr |
18.0 – 20.0 |
Ni |
8.0 – 10.5 |
Mn |
≤2.0 |
Si |
≤1.0 |
P |
≤0.045 |
S |
≤0.03 |
Fe |
Balance |
Properties of AISI 304
Mechanical properties |
|
State |
Annealed |
Density |
8.0 g/cm3 |
Hardness Brinell |
123 |
Hardness Rockwell B |
70 |
Hardness Vickers |
129 |
Tensile strength, ultimate |
505 MPa |
Tensile strength, yield |
215 MPa |
Yield stress, o.2% |
≤200 Mpa |
Elongation until break |
70% |
Modulus of Elasticity |
195 GPa |
Poisson’s ratio |
0.29 |
Thermal Properties |
|
Coefficient of thermal linear expansion |
17.3 x 10-6 /°C  (20-100°C) |
Coefficient of linear thermal expansion |
17.8 x 10-6/°C   (20-300°C) |
Specific heat capacity |
0.50 J/(g.K) |
Thermal conductivity |
16.2W/(m.K) |
Continuous use (service) temperature |
325°C |
Maximum service temperature (short) |
870°C |
Electrical Properties |
|
Resistivity |
0.72 x 10-4 Ohm.cm |
TSB 50-040001 Material for Micro-Tec AFM / SPM cantilever tweezers 2015-11-03 Revision 1
50-040004 Micro-Tec titanium AFM/SPM cantilever tweezers
The material used for manufacturing #50-040004 Micro-Tec titanium AFM/SPM cantilever tweezers is:
- Titanium Grade 1 (non-alloy titanium)
- Fully non-magnetisable
- Engineering material which is strong, light-weight and has a high melting point
- Good cold form ability, high ductility
- Biocompatible material. Cell integrity is maintained, no inflammatory response
- Good corrosion resistance at room temperature to air and to marine and industrial environments
- Typically used for magnetic cantilevers or in magnetic fields
General composition of titanium grade 1
Element | Wt. % |
Ti | 99.5 |
C | ≤0.1 |
O | ≤0.18 |
N | ≤0.03 |
Fe | ≤0.2 |
H | ≤0.015 |
Properties of titanium grade 1
Mechanical properties | |
State | Annealed |
Density | 4.51 g/cm3 |
Hardness, Vickers | 122 HV |
Tensile strength, ultimate | 330 MPa |
Tensile strength, yield | 240 MPa |
Elongation until break | 30% |
Modulus of elasticity | 100 GPa |
Thermal properties | |
Coefficient of linear thermal expansion | 9.2 x 10-6 /°C  (0-315°C) |
Specific heat capacity | 0.52 J/(g.K) |
Thermal conductivity | 16W/(m.K) |
Continuous use (service) temperature | 350°C |
Maximum service temperature (short) | 860°C |
Electrical properties | |
Resistivity | 0.45 x 10-4 Ohm.cm |
TSB 50-040004 Material for Micro-Tec titanium AFM/SPM cantilever tweezers 2015-10-24 Revision 1
Ordering information:
-
Standard AFM/SPM cantilever tweezers – anti-magnetic
Micro-Tec AFM.AM standard AFM / SPM cantilever tweezers, anti-magnetic stainless steel – 118mm (each)
£8.34 Add to basket -
Light-weight fully non-magnetic AFM/SPM cantilever tweezers
Micro-Tec AFM.TI light-weight, fully non-magnetic AFM / SPM cantilever tweezers, titanium – 118mm (each)
£21.50 Add to basket
