FIB pre tilt holders

Micro to Nano pre-tilt stub holders are useful for FIB-SEM systems to get the specimen perpendicular with the FIB column to allow for straight FIB milling in to the surface of the specimen. The pre-tilt angles are complementary to the angles between the FIB column and the electron beam column. Using pre-tilt stub holders there is no need to tilt the specimen stage.

Three types are available:

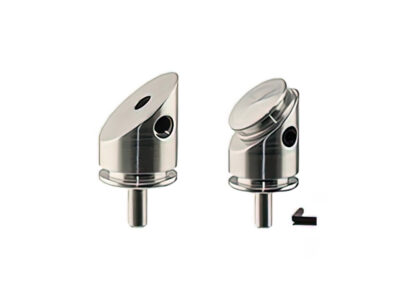

  • EM-Tec P38 fixed 38° tilt holder for FEI pin stubs. Used to pre-tilt specimens 38° for ThermoFisher/FEI Dual Beam FIB systems. Size w.o. pin is Ø12.7x17mm.

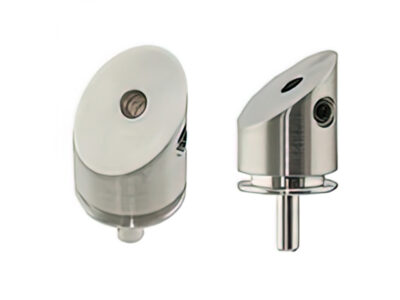

  • EM-Tec P36 fixed angle 36° tilt holder for Zeiss pin stubs. Used to pre-tilt specimens 36° for Zeiss CrossBeam  FIB systems. Size w.o. pin is Ø12.7x17mm.

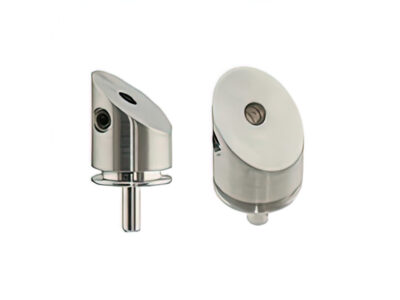

  • EM-Tec P35 fixed angle 35° tilt holder for standard and Tescan pin stubs. Used to pre-tilt specimens 35° for Tescan FIB-SEM systems. Size w.o. pin is Ø12.7x17mm.
Product # Style Angle FIB-SEM Capacity Size w/o pin Stub holding method
10-002238 P38 38° ThermoFisher /FEI Ø3.2mm pin Ø12.7 x 17mm Set screw
10-002236 P36 36° Zeiss Ø3.2mm pin Ø12.7 x 17mm Set screw
10-002235 P35 35° Tescan Ø3.2mm pin Ø12.7 x 17mm Set screw
