Wafer carrier trays

Micro to Nano Micro-Tec wafer carrier trays are specifically designed to ship, transport or store semiconductor wafers. Primarily designed to hold thin silicon wafers, but equally suitable for glass, quartz, sapphire, GaAs and other thin, round wafers in sizes from Ø1” to 6” or Ø25 to 150mm.

These wafer carriers, also known as coin shippers, comprise three parts: base, spider spring and locking cap. The inside of the base is concave to ensure that the wafers are held at the edges only. The spider spring holds the wafer in place once the cap is locked to the base.  Available in sizes of 1” to 6” or equivalent 25 to 150mm diameter.

Wafer carrier trays are available in a choice of two materials:

  • Sturdy, translucent, natural polypropylene
  • Anti-static, opaque, black (carbon filled) polypropylene – ESD safe and protects from light exposure. Surface resistivity 10E4 – 10E5 Ω/cm2, volume resistivity 10E4 Ω/cm

All wafer carrier trays are available  in packs of five.

Specifications

Product # Wafer size Dimensions Material
10-008191 1” / 25mm Ø33 x 10mm Natural translucent PP
10-008192 2” / 51mm Ø60 x 11mm Natural translucent PP
10-008193 3” / 76mm Ø84 x 11mm Natural translucent PP
10-008194 4” / 100mm Ø110 x 11mm Natural translucent PP
10-008196 6” / 150mm Ø160 x 11mm Natural translucent PP
10-008181 1” / 25mm Ø33 x 10mm Anti-static, black PP
10-008182 2” / 51mm Ø60 x 11mm Anti-static, black PP
10-008183 3” / 76mm Ø84 x 11mm Anti-static, black PP
10-008184 4” / 100mm Ø110 x 11mm Anti-static, black PP
10-008186 6” / 150mm Ø160 x 11mm Anti-static, black PP

Silicon wafer trays

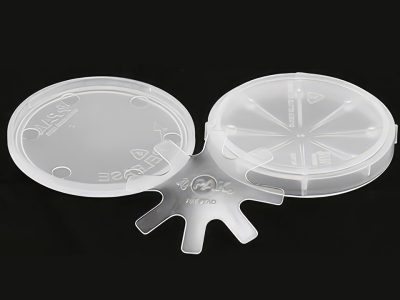

Open wafer trays – translucent

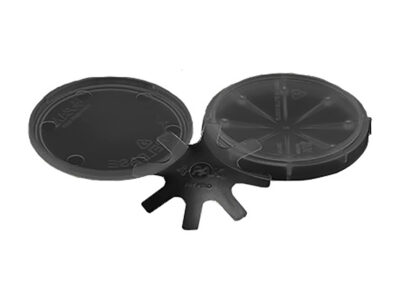

Open wafer trays – black
