SEM stub adaptors
EM-Tec stub adaptors enable the use of all common types of SEM stubs or mounts in another type of SEM. Adaptors from a base of one type of SEM stub to a top of another type of SEM are available, offering a cost-effective solution and practical advantages when changing between SEM instruments.
Advantages of SEM stub adaptors
- Easy interchange of specimen stubs, independent of SEM platform
- Save time – no need to re-mount specimens
- Can use calibration and resolution standards mounted on different SEM stubs
- No need to risk specimen integrity
- Enables collaborative investigation of mounted specimens
- EM-Tec stub adaptors are manufactured by Micro to Nano from vacuum grade aluminium to original manufacturers specifications.
EM-Tec SEM stub adaptors are available as:
- Pin stub adaptors for using other stubs in SEMs with standard 9.5mm pin stubs
- Short pin stub adaptors for using other stubs in Zeiss /LEO SEMs using short 6mm pin stubs
- JEOL stub adaptors for using pin stubs and Hitachi stubs in JEOL SEMs using plain cylinder stubs
- Hitachi M4 SEM stub adaptors for using pin stubs and JEOL stubs in Hitachi SEMs with M4 threaded base stubs
- Other SEM stub adaptors for less common SEMs such as ISI/ABT/Topcon and Agilent/Keysight with plain cylinder stubs
- Metal slide adaptor to mount SEM pin stubs on a reflected light microscope stage
- Hitachi SEM stub extensions are made from self-lubricating brass with aluminium locking ring
For laboratories with multiple SEM platforms – or for those who are regularly using diferent brands of SEMs – Â we offer the EM-Tec universal SEM stub adaptor set, which includes pin stub adaptors, JEOL stub adaptors (up to 25mm) and Hitachi stub adaptors – all work in both ways.
Note: If you cannot find the SEM stub or mount adaptor you are looking for please contact us as we might be able to offer a different solution or can manufacture custom SEM stub adaptors.
Ordering information:
SEM stub adaptors
-

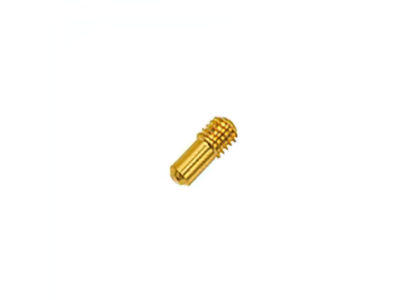

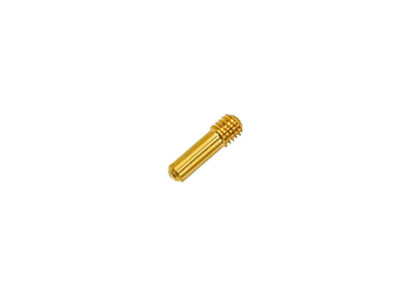

Compact Zeiss pin stub adaptor, M4 thread – short Zeiss pin
EM-Tec GZM4 compact Zeiss pin stub adaptor with M4 thread, gold plated brass – short Zeiss pin (each)
£16.24 Add to basket -
Compact pin stub adaptor, M4 thread, gold plated brass – pin
EM-Tec GSPM4 compact standard pin stub adaptor with M4 thread, gold plated brass – pin (each)
£16.24 Add to basket -
Zeiss pin stub to Hitachi M4 adaptor with support rim
EM-Tec ZR4 Zeiss pin stub to Hitachi M4 adaptor with support rim for larger stubs/holders (each)
£19.75 Add to basket -
Pin stub adaptor for Hitachi M4 with support rim
EM-Tec PR4 pin stub adaptor for Hitachi M4 with support rim for larger stubs/holders (each)
£19.75 Add to basket -
Zeiss pin stub to Hitachi M4 adaptor- straight
EM-Tec Z4 Zeiss pin stub to Hitachi M4 adaptor, straight for smaller stubs/holders (each)
£14.48 Add to basket -
Pin stub adaptor for Hitachi M4 – straight
EM-Tec P4 pin stub adaptor for Hitachi M4, straight for smaller stubs/holders (each)
£14.48 Add to basket -
Long pin stub adaptor with support rim for Hitachi M4 stubs
Long pin stub adaptor with support rim for Hitachi M4 stubs and holders (each)
£25.02 Add to basket -
Zeiss pin stub adaptor for Ø12.2mm and Ø9.5mm JEOL stubs
EM-Tec ZJ12 Zeiss pin stub adaptor for Ø12.2mm and Ø9.5mm JEOL stubs (each)
£21.50 Add to basket -
EM-Tec ZJ32 Zeiss pin stub adaptor for Ø32mm JEOL stubs
EM-Tec ZJ32 Zeiss pin stub adaptor for Ø32mm JEOL stubs (each)
£28.53 Add to basket -
EM-Tec ZJ50 Zeiss pin stub adaptor for Ø50mm JEOL stubs
EM-Tec ZJ50 Zeiss pin stub adaptor for Ø50mm JEOL stubs (each)
£46.96 Add to basket -
EM-Tec PS4 pin stub adaptor for Cambridge S4 mounts
EM-Tec PS4 pin stub adaptor for Cambridge S4 mounts (each)
£23.26 Add to basket -

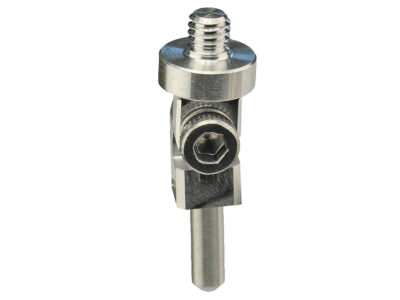

EM-Tec PSM4 swivel mount adaptor with M4 – aluminium- pin
EM-Tec PSM4 swivel mount adaptor with M4, aluminium – pin (each)
£34.67 Add to basket -
PJ12 pin stub adaptor for Ø12.2mm and Ø9.5mm JEOL stubs
EM-Tec PJ12 pin stub adaptor for Ø12.2mm and Ø9.5mm JEOL stubs (each)
£21.50 Add to basket -
EM-Tec PJ25 pin stub adaptor for Ø25mm JEOL and Hitachi stubs
EM-Tec PJ25 pin stub adaptor for Ø25mm JEOL and Hitachi stubs (each)
£23.26 Add to basket -

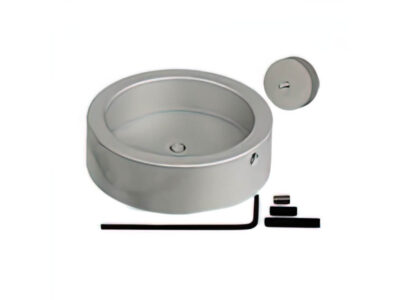

EM-Tec PJ32 pin stub adaptor for Ø32mm JEOL and Hitachi stubs
EM-Tec PJ32 pin stub adaptor for Ø32mm JEOL and Hitachi stubs (each)
£28.53 Add to basket -

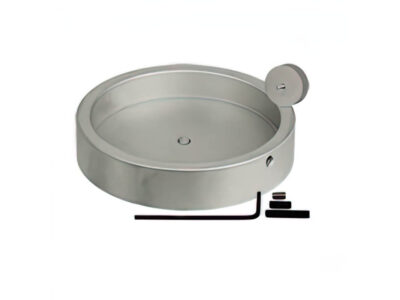

EM-Tec PJ50 pin stub adaptor for Ø50mm JEOL stubs
EM-Tec PJ50 pin stub adaptor for Ø50mm JEOL stubs (each)
£46.96 Add to basket -

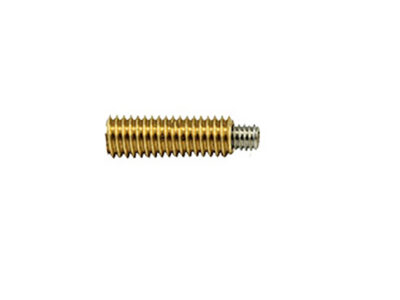

Hitachi H18 short height extension pillar only – 12mm x M6
Hitachi H18 short height extension pillar only- 12mm x M6 (each)
£22.38 Add to basket -

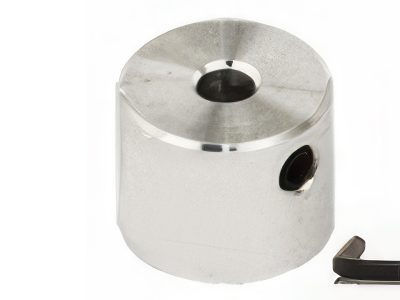

HJ12 Hitachi M4 adaptor to Ø15mm JEOL and ISI stubs – Ø25 x 10mm
EM-Tec HJ12 Hitachi M4 adaptor for Ø15mm JEOL or ISI stubs, Ø25 x 10mm – M4 (each)
£21.50 Add to basket -
Hitachi H18 medium height extension pillar only – 18mm x M6
Hitachi H18 medium height extension pillar only, 18mm x M6 (each)
£22.38 Add to basket -

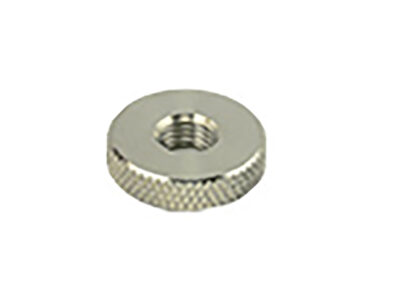

Hitachi H4 knurled aluminium locking nut – 4mm x M6
Hitachi H4 knurled aluminium locking nut, 4mm x M6 (each)
£8.34 Add to basket -

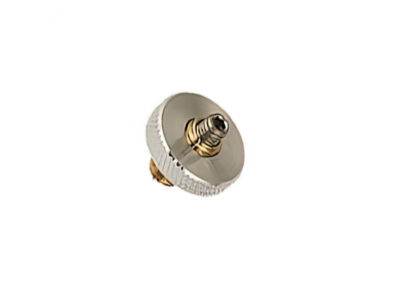

Hitachi stub extender assembly with locking nut
EM-Tec HS12 Hitachi stub extender assembly with locking nut, M6/M4 – 12mm L (each)
£25.02 Add to basket -
HS18 Hitachi stub extender assembly with locking nut
EM-Tec HS18 Hitachi stub extender assembly with locking nut, M6/M4 – 18mm L (each)
£25.45 Add to basket -
Hitachi stub extender assembly with locking nut
EM-Tec HS25 Hitachi stub extender assembly with locking nut, M6/M4 – 25mm L (each)
£25.89 Add to basket -
Hitachi H25 tall height extension pillar only – 25mm x M6
Hitachi H25 tall height extension pillar only, 25mm x M6 (each)
£22.38 Add to basket -

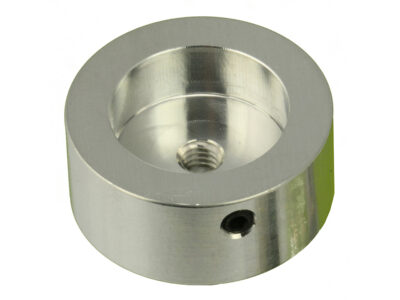

EM-Tec HJ25 Hitachi M4 adaptor for Ø25mm JEOL stubs – M4
EM-Tec HJ25 Hitachi M4 adaptor for Ø25mm JEOL stubs – M4 (each)
£22.38 Add to basket -
EM-Tec HJ32 Hitachi M4 adaptor for Ø32mm JEOL stubs – M4
EM-Tec HJ32 Hitachi M4 adaptor for Ø32mm JEOL stubs – M4 (each)
£28.53 Add to basket -

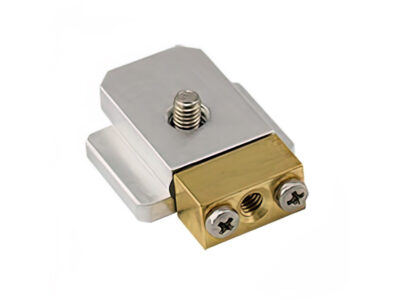

Hitachi HV40 older style T-base SEM stage adaptor assembly
Hitachi HV40 older style T-base SEM stage adaptor assembly, compatible with S-4700, S-4500, S-4300, S-42300, S-4100, S-4000, S-800 FESEMs and S-3600N SEM (each)
£127.27 Add to basket -
Replacement brass float bar for Hitachi SEM stage adaptor
Replacement brass float bar for Hitachi HV40 T-base SEM stage adaptor – brass (each)
£30.28 Add to basket -
Hitachi HV48 new style T-base SEM stage adaptor assembly
Hitachi HV48 new style T-base SEM stage adaptor assembly, compatible with SU8000 series, SU8200 series, SU6600, SU-70 and S-4800 FESEMs (each)
£258.93 Add to basket -
Hitachi HV48-6 new style T-base SEM stage adaptor
Hitachi HV48-6 new-style T-base SEM stage adaptor assembly with 6mm extra height (each)
£305.64 Add to basket -
Hitachi HV48-10 new style T-base SEM stage adaptor
Hitachi HV48-10 new-style T-base SEM stage adaptor assembly with 10mm extra height (each)
£329.15 Add to basket -

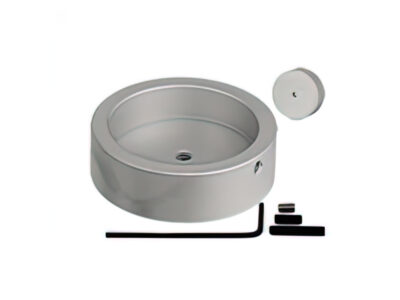

EM-Tec HJ50 Hitachi M4 adaptor for Ø50mm JEOL stubs – M4
EM-Tec HJ50 Hitachi M4 adaptor for Ø50mm JEOL stubs – M4 (each)
£43.45 Add to basket -

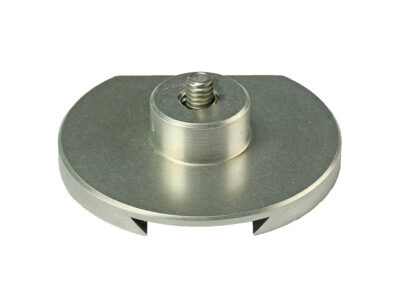

Hitachi HV20 round SEM stage adaptor assembly with M4 screw
Hitachi HV20 round SEM stage adaptor assembly with M4 screw, compatible with S3500 series, S3000 series and S2000 series SEMs – aluminium/brass (each)
£57.05 Add to basket -

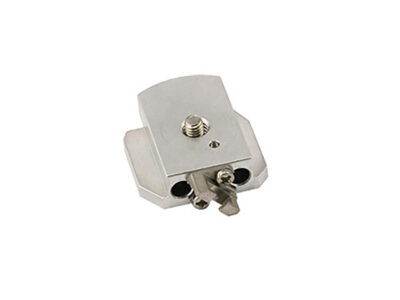

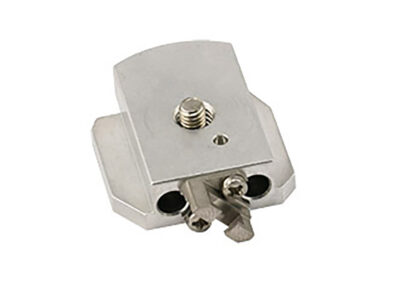

Hitachi dovetail stage adaptor with M4 screw for S-3400N
Hitachi HV34 dovetail stage adaptor with M4 screw for Hitachi S-3400N – aluminium (each)
£144.83 Add to basket -
Hitachi dovetail stage adaptor with M4 screw for SU3500
Hitachi HV35 dovetail stage adaptor with M4 screw for Hitachi SU3500 – aluminium (each)
£153.60 Add to basket -

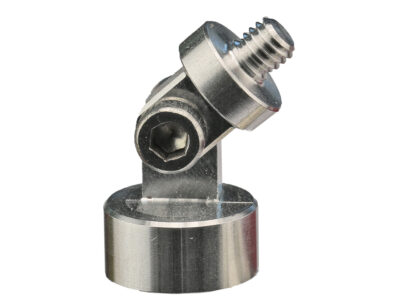

EM-Tec JSM4 swivel mount adaptor with M4 – JEOL Ø12.2mm
EM-Tec JSM4 swivel-mount adaptor with M4, aluminium – JEOL Ø12.2mm (each)
£41.69 Add to basket -

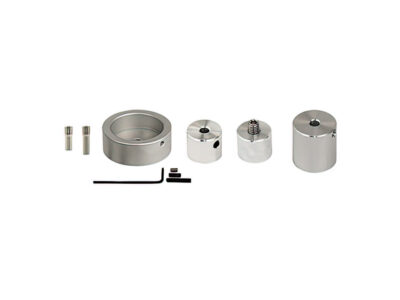

EM-Tec US6 universal SEM specimen stub adaptor set
EM-Tec US6 universal SEM specimen stub adaptor set (each)
£105.33 Add to basket -

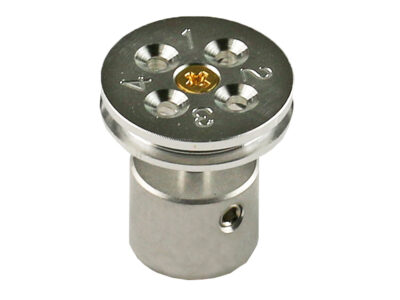

EM-Tec TG4H holder holds up to four TEM grids, Ø18 x 3.2mm, aluminium, with Hitachi M4 stub adaptor
EM-Tec TG4H TEM grid holder securely holds up to 4 TEM grids- Ø18×3.2mm- aluminium- with Hitachi M4 stub adaptor (each)
£84.26 Add to basket -

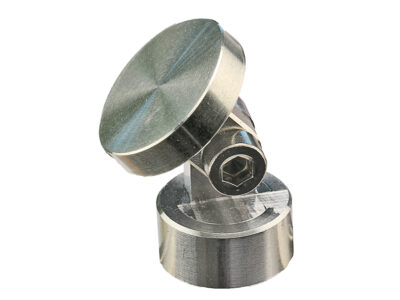

JEOL stub swivel mount, Ø12.2 x 21mm, +/- 90 degree, Ø12.2mm
EM-Tec JS15 JEOL stub swivel mount, Ø12.2 x 21mm- +/- 90 degree, aluminium – JEOL Ø12.2mm (each)
£43.45 Add to basket -
EM-Tec ZJ25 Zeiss pin stub adaptor for Ø25mm JEOL stubs
EM-Tec ZJ25 Zeiss pin stub adaptor for Ø25mm JEOL stubs (each)
£23.26 Add to basket -
HJ10 Hitachi M4 adaptor for Ø9.5mm JEOL stubs, Ø15x10mm – M4
EM-Tec HJ10 Hitachi M4 adaptor for Ø9.5mm JEOL stubs, Ø15 x 10mm – M4 (each)
£21.50 Add to basket -
HJ11 Hitachi M4 adaptor for Ø12.2mm JEOL stubs – Ø15 x 10mm
EM-Tec HJ11 Hitachi M4 adaptor for Ø12.2mm JEOL stubs, Ø15 x 10mm – M4 (each)
£21.50 Add to basket -
Hitachi HV50 dovetail stage adaptor for SU5000
Hitachi HV50 dovetail stage adaptor with M4 screw for Hitachi SU5000 – aluminium (each)
£152.98 Add to basket -
Hitachi HV37 dovetail stage adaptor for Hitachi S-3700N
Hitachi HV37 dovetail stage adaptor with M4 screw for Hitachi S-3700N- aluminium/brass (each)
£197.49 Add to basket -

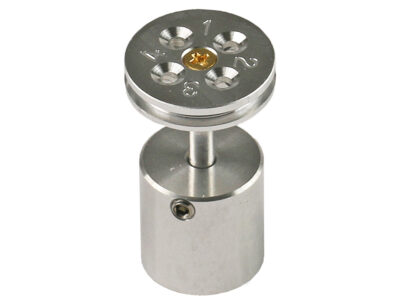

EM-Tec TG4J holder for up to four TEM grids, Ø18 x 3.2mm, aluminium, with JEOL Ø12.2mm stub adaptor
EM-Tec TG4J TEM grid holder securely holds up to 4 TEM grids- Ø18×3.2mm- aluminium- with JEOL Ø12.2mm stub adaptor (each)
£84.26 Add to basket -

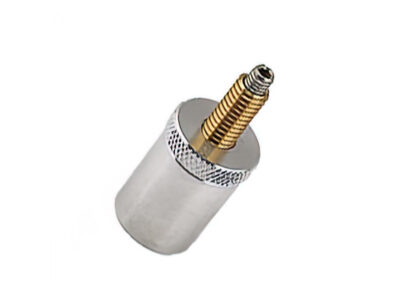

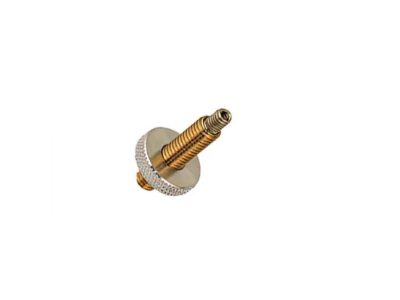

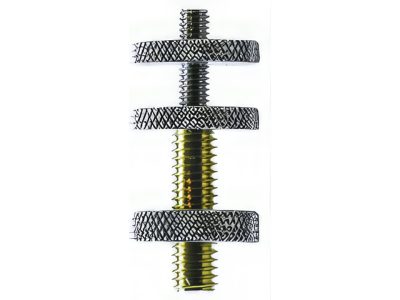

HS40V variable height Hitachi stub extender assembly
EM-Tec HS40V variable height Hitachi stub extender assembly with locking nut, M6/M4, 20-40 mm L (each)
£42.17 Add to basket -
EM-Tec P3 pin stub adaptor for SEC table top SEMs, aluminium
EM-Tec P3 pin stub adaptor for SEC table top SEMs, aluminium (each)
£406.64 Add to basket -
EM-Tec S4 adaptor with 4 screw for SEC table top SEMs
EM-Tec S4 adaptor with four screws for SEC table top SEMs. compatible with M4 threaded stubs and holders (each)
£23.79 Add to basket
