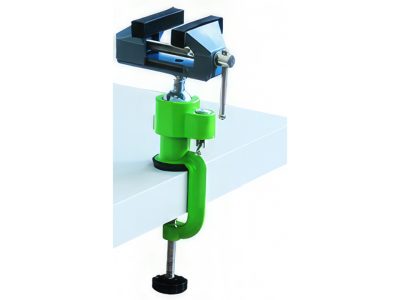

Universal laboratory vice with bench clamp

The EM-Tec 3-360 universal laboratory vice is ideal for a range of specimen preparation and specimen examination tasks. Examples include cutting off parts to reduce sample size or for positioning of samples for a stereo microscope with boom stand.
The clamping width is 75mm with a maximum clamping opening of 50mm. Included are protective rubber vice sleeves to minimise surface damage and for handling delicate samples. The EM-Tec 3-360 universal laboratory vice can be easily clamped to laboratory tables or benches up to 60mm in thickness. Integrated protective rubber pads avoid damaging of the table or bench top. A full 360 degrees rotation allows for optimum positioning. 45 and 90 degree tilting enables accurate cross-cutting and/or angled views.



Specifications of EM-Tec 3-360 universal laboratory vice with bench clamp

Product number

52-003200

Vice clamp width

75mm

Maximum vice clamp opening

50mm

Rotation

360 degrees

Tilt

One side -45 degrees; opposite side -90 degrees

Materials

Die cast zinc alloy/steel /protective rubber

Maximum bench thickness

60 mm

Height above bench

170 mm

Total height

330 mm



Ordering information:
