Silver coated microscope slides and coverslips
Nano-Tec silver coated microscope slides and coverslips are designed for microscopy, AFM / SPM, nanotechnology, reflectometry and optical applications. They are also useful as opaque light microscopy supports or silver coated substrates for experiments. Borofloat 33 microscope slides and coverslips are pre-cleaned prior  to coating and then coated with gold (Ag) over an adhesion layer of titanium (Ti). Both Ti and Ag are deposited in a dedicated high vacuum deposition system fitted with electron beam evaporation sources.
Available in four silver coating thicknesses: 10nm, 50nm, 100nm and 500nm Ag. The silver coating is not atomically flat and there are height differences in the nanometre range.
The microscope slides are packed in a slide mailer and the coverslips are packed in a GEL-Pak box.
Specifications of silver-coated microscope slides
|
Product number |
10-AG8632 |
10-AG8631 |
10-AG8633 |
10-AG8634 |
|
Microscope slide size |
75 x 25 x 1mm |
|||
|
Microscope slide glass |
Borofloat 33 – borosilicate glass |
|||
|
Adhesion film material |
                                                           Titanium, 99.99% |
|||
|
Adhesion film thickness |
2nm |
5nm |
5nm |
7.5nm |
|
Silver film thickness |
10nm |
50nm |
100nm |
500nm |
|
Silver film purity |
99,99% |
|||
|
Roughness |
Several nm |
|||
|
Packaging size |
Pkg/10 |
Pkg/10 |
Pkg/10 |
Pkg/10 |
Specifications of silver-coated coverslips
|
Product number |
10-AG8616 |
10-AG8615 |
10-AG8618 |
10-AG8623 |
10-AG8622 |
10-AG8624 |
10-AG8625 |
|
|
Coverslip size |
Ø15 x 0.15 mm |
22 x 22x 0.2 mm |
||||||
|
Coverslip glass |
Borofloat 33 – borosilicate glass |
Borofloat 33 – borosilicate glass |
||||||
|
Adhesion film material |
Titanium, 99.99% |
Titanium, 99.99% |
||||||
|
Adhesion film thickness |
2nm |
5nm |
5nm |
7.5nm |
2nm |
5nm |
5nm |
7.5nm |
|
Silver film thickness |
10nm |
50nm |
100nm |
500nm |
10nm |
50nm |
100nm |
500nm |
|
Silver film purity |
99,99% |
99,99% |
||||||
|
Roughness |
Several nm |
Several nm |
||||||
|
Packaging size |
Pkg/40 |
Pkg/40 |
Pkg/40 |
Pkg/40 |
Pkg/20 |
Pkg/20 |
Pkg/20 |
Pkg/20 |
Ordering information:

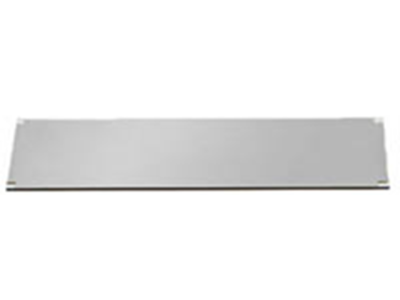

Nano-Tec silver coated glass microscope slides
-
Silver-coated microscope slide, 75x25x1 mm, 10nm Ag
Nano-Tec silver-coated microscope slide, 75x25x1 mm, 10nm Ag (Pk/10)
£662.72 Read more -
Silver-coated microscope slide, 75x25x1 mm, 50nm Ag
Nano-Tec silver-coated microscope slide, 75x25x1 mm, 50nm Ag (Pk/10)
£695.04 Read more -
Silver-coated microscope slide, 75x25x1 mm, 100nm Ag
Nano-Tec silver-coated microscope slide, 75x25x1 mm, 100nm Ag (Pk/10)
£835.13 Read more -
Silver-coated microscope slide, 75x25x1 mm, 500nm Ag
Nano-Tec silver-coated microscope slide, 75x25x1 mm, 500nm Ag (Pk/10)
£1,212.28 Read more

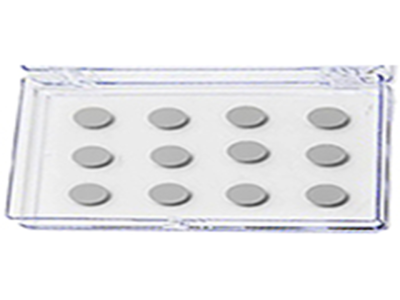

Nano-Tec silver coated Ø15 mm glass coverslips
-
Silver coated coverslip, Ø15 x 0.15 mm, 10nm Ag
Nano-Tec silver coated coverslip, Ø15 x 0.15 mm, 10nm Ag (Pk/40)
£1,185.34 Read more -
Silver coated coverslip, Ø15 x 0.15 mm, 50nm Ag
Nano-Tec silver coated coverslip, Ø15 x 0.15 mm, 50nm Ag (Pk/40)
£1,255.39 Read more -
Silver coated coverslip, Ø15 x 0.15 mm, 100nm Ag
Nano-Tec silver coated coverslip, Ø15 x 0.15 mm, 100nm Ag (Pk/40)
£1,395.47 Read more -
Silver coated coverslip, Ø15 x 0.15 mm, 500nm Ag
Nano-Tec silver coated coverslip, Ø15 x 0.15 mm, 500nm Ag (Pk/40)
£1,497.84 Read more
Nano-Tec silver coated 22×22 mm glass coverslips
-
Silver coated coverslip, 22 x 22 x 0.2 mm, 10nm Ag
Nano-Tec silver coated coverslip, 22 x 22 x 0.2 mm, 10nm Ag (Pk/20)
£1,077.59 Read more -
Silver coated coverslip, 22 x 22 x 0.2 mm, 50nm Ag
Nano-Tec silver coated coverslip, 22 x 22 x 0.2 mm, 50nm Ag (Pk/20)
£1,077.59 Read more -
Silver coated coverslip, 22 x 22 x 0.2 mm, 100nm Ag
Nano-Tec silver coated coverslip, 22 x 22 x 0.2 mm, 100nm Ag (Pk/20)
£1,174.57 Read more -
Silver coated coverslip, 22 x 22 x 0.2 mm, 500nm Ag
Nano-Tec silver coated coverslip, 22 x 22 x 0.2 mm, 500nm Ag (Pk/20)
£1,276.94 Read more
