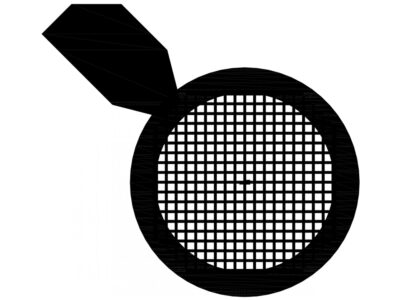

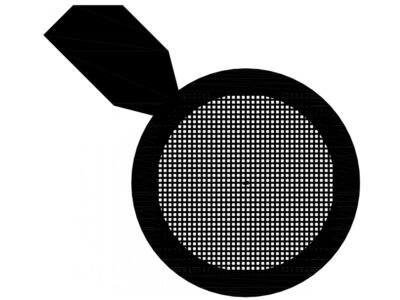

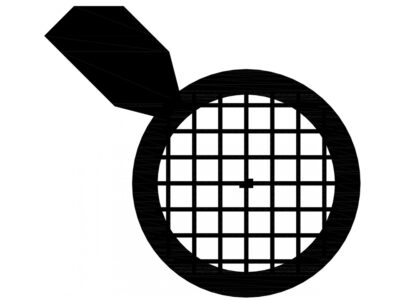

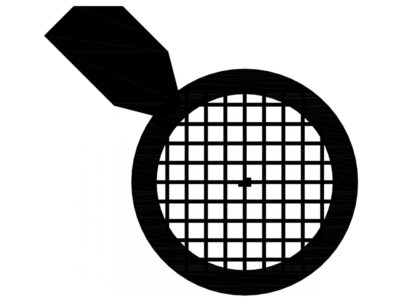

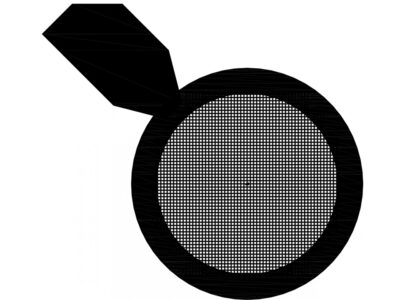

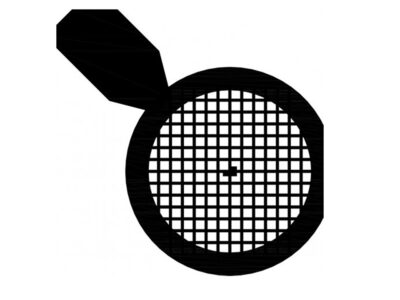

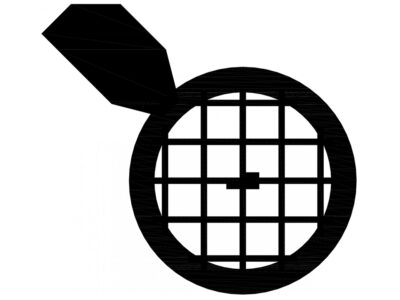

Square mesh TEM grids with handles

Square mesh TEM grids are the most popular grids for routine TEM applications. Handles enable the grid to be held with fine tweezers without touching the actual grid area.

Available in mesh sizes from 50 to 600 in aluminium, copper, gold, molybdenum, nickel, stainless steel and titanium.

Specifications: square mesh TEM grids with handles

Mesh

Pitch
µm

Hole
µm

Bar
µm

Transmission
%

Rim width
µm

Thickness
µm

Tolerance ± µm

Diameter
mm

50

508

425

83

70

375

25

5

3.05

75

339

284

55

70

375

25

5

3.05

100

254

204

50

65

375

25

5

3.05

150

169

125

44

55

375

25

5

3.05

200

127

90

37

50

375

25

5

3.05

300

85

54

31

40

375

25

5

3.05

400

64

38

26

35

375

25

5

3.05

500

51

28

23

30

375

25

5

3.05

600

41

26

15

42

375

25

5

3.05

Ordering information

Copper square mesh TEM grids with handles

Aluminium square mesh TEM grids with handles

Copper square mesh TEM grids with handles

Gold square mesh TEM grids with handles

Molybdenum square mesh TEM grids with handles

Nickel square mesh TEM grids with handles

Stainless steel square mesh TEM grids with handles

Titanium square mesh TEM grids with handles
