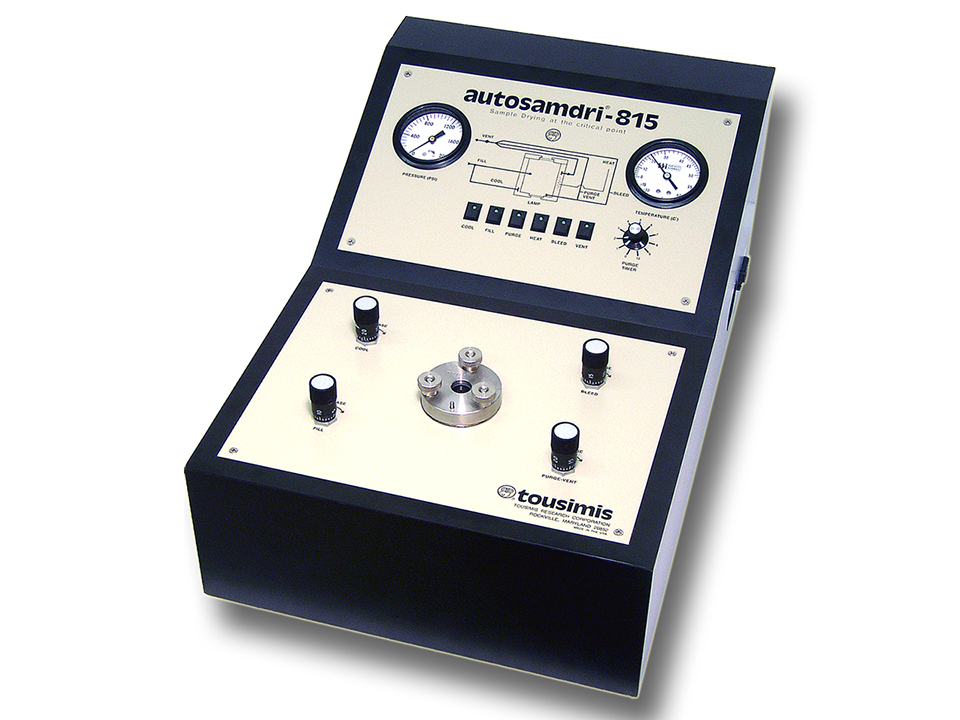

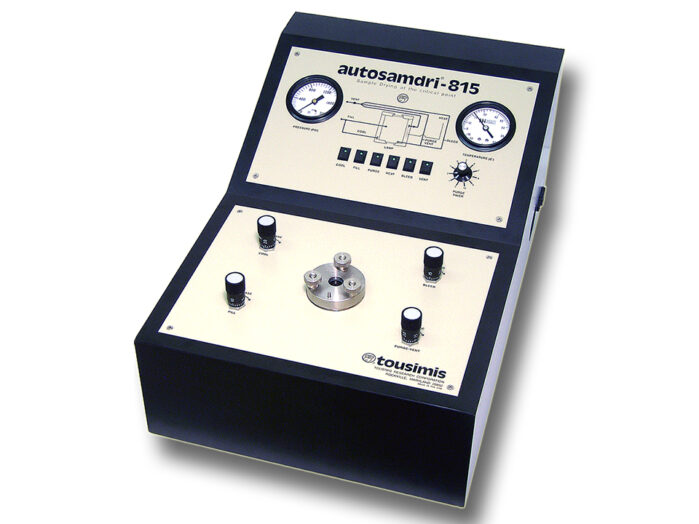

Autosamdri 815 Series A automatic critical point dryer
Autosamdri 815- Series fully automatic critical point dryer.
£0.00
Related products
-
CCU-010 HV (high vacuum)
Safematic CCU-010 HV compact, fully automatic, high vacuum (oil-free) coating system.
- Fully automatic, touch screen control with stored recipes
- Integrated turbomolecular (Pfeiffer Hi Pace 80) and membrane pumping (Vacuubrand MD 1 Vario-SP) – no external pump and vacuum hose required
- Superb vacuum performance (to 5 x 10-5mbar in minutes, ultimate vacuum in 10-6mbar range)
- Small footprint (L 570 x W 360 x H 350mm)
- Glass work chamber 104 mm Ø x 106 mm
- Safety: implosion guard with placement sensor so coater cannot be operated unless the guard is in place
- Specimen table (Ø80 mm) – tilt and height adjustable with holder for 20 standard (13 mm) pin stubs
- Easy access to specimen chamber for cleaning – removed in seconds for complete cleaning
- Integrated terminating film thickness monitoring system. With dual-location (centre oredge) crystal holder to accommodate different sample sizes
- Optional sputtering module (SP-010) is actively (fan) cooled to allow run times of up to 40 minutes
- Optional carbon evaporation module (CT-010) uses a unique carbon fibre spooling system to allow up to 50 coating runs without a source change
- System can be left under vacuum when not in use
- Full range power supply (90-260VAC- 50/60Hz)
SKU: 100001Price On Request £0.00 Add to basketAdd to QuoteWithin your QuoteAdd to QuoteCCU-010 HV (high vacuum)
Safematic CCU-010 HV compact, fully automatic, high vacuum (oil-free) coating system.
- Fully automatic, touch screen control with stored recipes
- Integrated turbomolecular (Pfeiffer Hi Pace 80) and membrane pumping (Vacuubrand MD 1 Vario-SP) – no external pump and vacuum hose required
- Superb vacuum performance (to 5 x 10-5mbar in minutes, ultimate vacuum in 10-6mbar range)
- Small footprint (L 570 x W 360 x H 350mm)
- Glass work chamber 104 mm Ø x 106 mm
- Safety: implosion guard with placement sensor so coater cannot be operated unless the guard is in place
- Specimen table (Ø80 mm) – tilt and height adjustable with holder for 20 standard (13 mm) pin stubs
- Easy access to specimen chamber for cleaning – removed in seconds for complete cleaning
- Integrated terminating film thickness monitoring system. With dual-location (centre oredge) crystal holder to accommodate different sample sizes
- Optional sputtering module (SP-010) is actively (fan) cooled to allow run times of up to 40 minutes
- Optional carbon evaporation module (CT-010) uses a unique carbon fibre spooling system to allow up to 50 coating runs without a source change
- System can be left under vacuum when not in use
- Full range power supply (90-260VAC- 50/60Hz)
£0.00Price On RequestAdd to basketAdd to QuoteWithin your QuoteAdd to Quote -
ET-010 integrated plasma stage
Plasma cleaning accessory for the pre-treatment (cleaning) or after-treatment (glow discharge effect) of specimens in combination with a coating process.
SKU: 1000010Price On Request £0.00 Add to basketAdd to QuoteWithin your QuoteAdd to QuoteET-010 integrated plasma stage
Plasma cleaning accessory for the pre-treatment (cleaning) or after-treatment (glow discharge effect) of specimens in combination with a coating process.
£0.00Price On RequestAdd to basketAdd to QuoteWithin your QuoteAdd to Quote -
Autosamdri 815B Series A large capacity fully automatic critical point dryer
Autosamdri 815B- Series A large capacity fully automatic critical point dryer.
The large (114.3mm ID) specimen chamber is ideal for critical point drying large or numerous small specimens. Details and features:
Extra-large chamber (114.3mm ID) for large or numerous small specimens.
Fully automatic critical point drying.
Indicator LEDs signal every mode of operation at a glance- Vernier metering valves.
Internal surfaces inert to LCO2 and ultra-pure alcohols.
Teflon inserts to save reagents when processing small sample volumes.
Integrated automatic temperature control of the critical point drying process.
Static pressure control module.
Top-mounted valves for easy loading/unloading of process chamber.
Internal filtration – protects specimens and valves down to 0.5µm.
Tough, solvent resistant cabinet, bottom-lit chamber with viewing port to aid visualisation of chamber and specimens.
Fast adiabatic chamber cooling with CO2.
Reliable, advanced solid state electronics.
Safe operation – fitted with rupture disk (activates @ 2000 psi) and pressure relief valve (activates @ 1250-1350 PSI).
SOTERâ„¢ condenser – captures waste alcohol and reduces exhaust noise.SKU: 8780BPrice On Request £0.00 Add to basketAdd to QuoteWithin your QuoteAdd to QuoteAutosamdri 815B Series A large capacity fully automatic critical point dryer
Autosamdri 815B- Series A large capacity fully automatic critical point dryer.
The large (114.3mm ID) specimen chamber is ideal for critical point drying large or numerous small specimens. Details and features:
Extra-large chamber (114.3mm ID) for large or numerous small specimens.
Fully automatic critical point drying.
Indicator LEDs signal every mode of operation at a glance- Vernier metering valves.
Internal surfaces inert to LCO2 and ultra-pure alcohols.
Teflon inserts to save reagents when processing small sample volumes.
Integrated automatic temperature control of the critical point drying process.
Static pressure control module.
Top-mounted valves for easy loading/unloading of process chamber.
Internal filtration – protects specimens and valves down to 0.5µm.
Tough, solvent resistant cabinet, bottom-lit chamber with viewing port to aid visualisation of chamber and specimens.
Fast adiabatic chamber cooling with CO2.
Reliable, advanced solid state electronics.
Safe operation – fitted with rupture disk (activates @ 2000 psi) and pressure relief valve (activates @ 1250-1350 PSI).
SOTERâ„¢ condenser – captures waste alcohol and reduces exhaust noise.£0.00Price On RequestAdd to basketAdd to QuoteWithin your QuoteAdd to Quote -
Edwards nXDS10i dry scroll pump
- Peak pumping speed 11.4m3/hr (6.7cfm).
- Ultimate pressure 0.007 mbar (0.005torr)
- Pump controller with push button control
- Remote serial and parallel control plus USB service interface
- Supply 100-127/200-240V (+/- 10%) 1ph 50/60Hz without user intervention
- Inlet port: NW25. Exhaust port: NW25
SKU: A73601983Price On Request £0.00 Add to basketAdd to QuoteWithin your QuoteAdd to QuoteEdwards nXDS10i dry scroll pump
- Peak pumping speed 11.4m3/hr (6.7cfm).
- Ultimate pressure 0.007 mbar (0.005torr)
- Pump controller with push button control
- Remote serial and parallel control plus USB service interface
- Supply 100-127/200-240V (+/- 10%) 1ph 50/60Hz without user intervention
- Inlet port: NW25. Exhaust port: NW25
£0.00Price On RequestAdd to basketAdd to QuoteWithin your QuoteAdd to Quote
