CXS-5C calibration standard

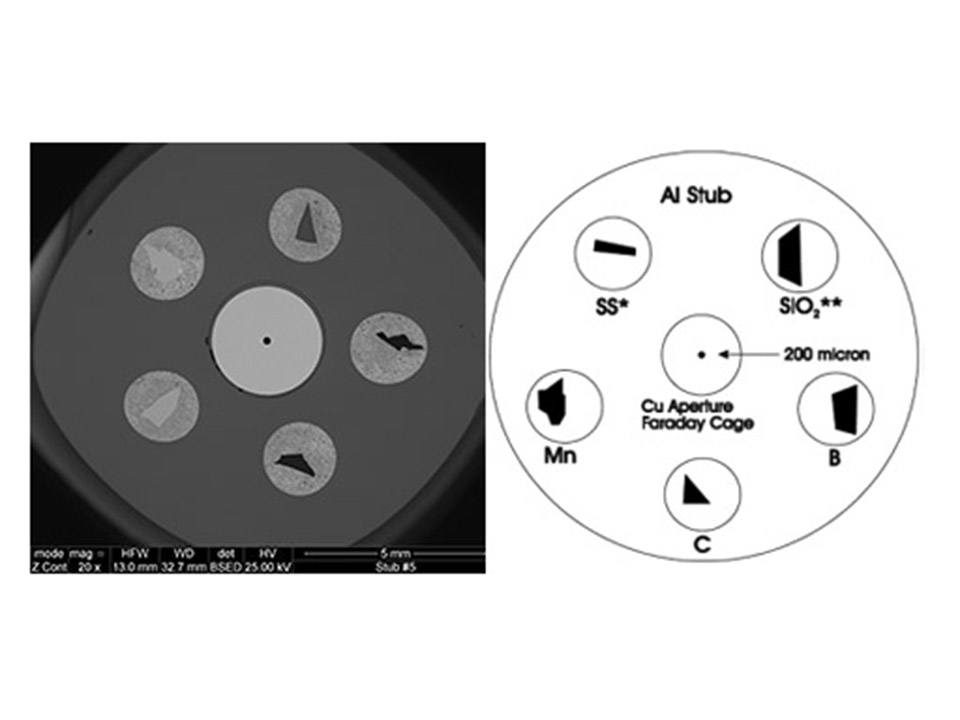

EM-Tec CXS-5C calibration standard includes five reference materials and a 200 mesh copper grid. All mounted in a compact dia.12.7mm standard aluminium SEM pin stub. The 200 mesh copper grid acts as an image size reference and with the aluminium pin stub it serves as a Cu/Al reference for detector gain/zero calibration.

Intended applications: EDS detector performance, light element detection, EDS detector resolution, EDS detector calibration and quantitative analysis test.

Reference materials: stainless steel (SRM 1155), SiO2, Mn, B and C. 200 mesh copper grid.
