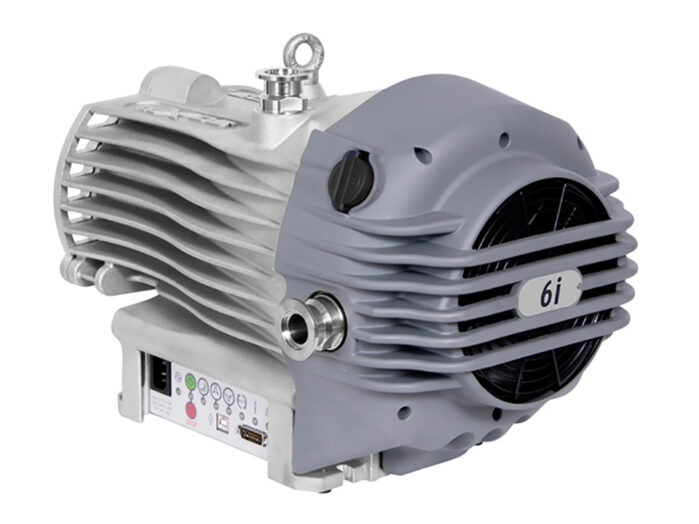

Edwards nXDS6i dry scroll pump
- Peak pumping speed: 6m3/hr (3.53cfm)
- Utimate pressure: 0.02mbar (1.5e-2torr)
- Inverter drive with push-button control
- Remote serial and parallel.control and USB interface
- Supply: 100-127/200-240V 1ph 50/60Hz without user intervention
- Inlet port: NW25. Exhaust port: NW25
£0.00
Related products
-
CCU-010 LV (standard vacuum)
Safematic CCU-010 LV compact, fully automatic, standard vacuum coating system.
- Fully automatic, touch screen control with stored recipes
- Glass work chamber 104 mm Ø x 106 mm
- Safety: implosion guard with placement sensor so coater cannot be operated unless the guard is in place
- Specimen table (Ø80 mm) – tilt and height adjustable with holder for 20 standard (13 mm) pin stubs
- Easy access to specimen chamber for cleaning – removed in seconds for complete cleaning
- Integrated terminating film thickness monitoring system. With dual-location (centre and edge) crystal holder to accommodate different sample sizes
- Optional sputtering module (SP-010) is actively (fan) cooled to allow run times of up to 40 minutes
- Optional carbon evaporation module (CT-010) uses a unique carbon fibre spooling system to allow up to 50 coating runs without a source change
- System can be left under vacuum when not in use
- Full range power supply (90-260VAC- 50/60Hz)
- Rotary vacuum pump (A65201903) oil mist filter (A46226000) and vacuum hose (C10514297) – order separately
-
Silver target – Ø54 x 0.25mm disc, 99.97% Ag
Silver sputter coater target – Ø54 x 0.25mm disc, 99.97% Ag
Price On Request £166.77 Add to basket -
SP-010 sputtering module
Fully integrated magnetron (type A) sputtering module for standard sputtering rates. Including high resolution sputtering assembly. Fitted with target cooling and monitoring – automatic source shutter and electronically controlled process vacuum control. Note: sputtering target not included – please select required metat target(s) from the options list.
Price On Request £0.00 Add to basket -
Coating LAB software
Coating LAB Windows-based software can be installed on a laptop for monitoring and documenting coating processes. Fully automatic logs and charts containing all process-related data can be exported as screenshots or CSV files for Office applications. Available information includes process vacuum, current and voltage along with film thickness and coating rates (Internet connection required). Coating-LAB will allow remote service access for error diagnosis and process optimisation.
Price On Request £0.00 Add to basket
