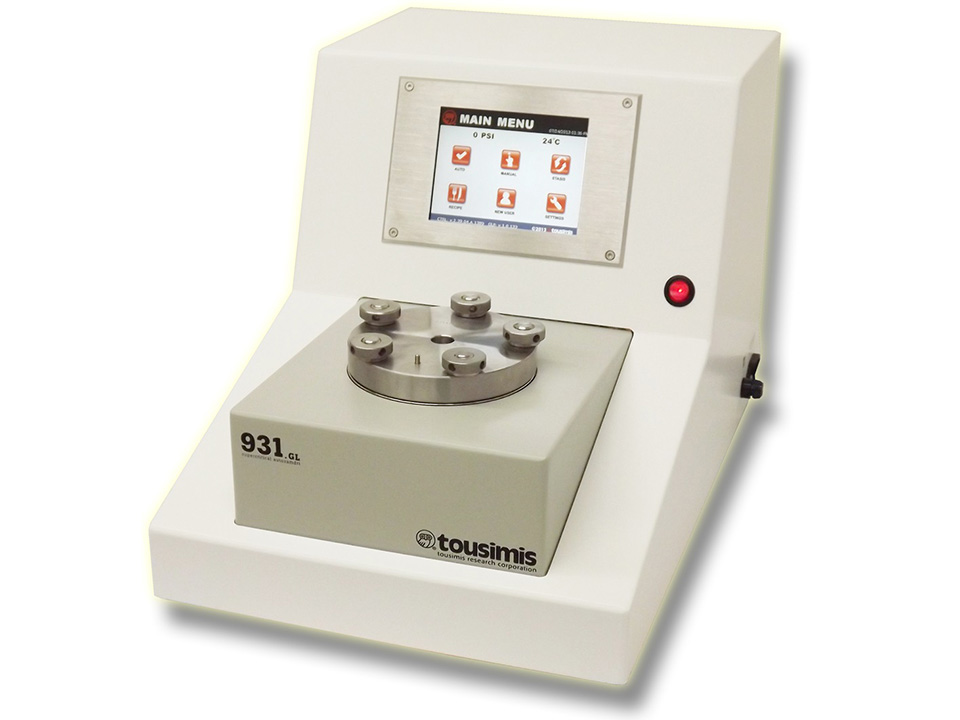

Tousimis® 931 automatic critical point dryer with 103.6mm/3.40″ diameter chamber

Consisting of:

• Bright LCD touchscreen control with choice of factory default settings or to create custom “recipes”
• Metering valves with Vernier handles that include a slow fill for very delicate specimens
• Internal 0.5μm particle filtration – protects specimens and valves
• Process chamber (103.6mm/3.4″ diameter, 31.75mm/1.25” depth)
• Rapid adiabatic chamber cooling
• Teflon chamber spacers to conserve liquid CO² when smaller specimen holders are used
• Internal condensing muffler – captures and eliminates purge exhaust noise
• Top-loading process chamber that is lit for easy viewing
• Non-mechanical purge stirring for complete purge
• ‘Stasis” software which gives complete range control
• Cabinet (W) 38.0cm x (H) 33.5cm x (D) 50.8cm with static-free design
• Flexible high-pressure braided stainless steel inert Teflon® lined LCO2 supply hose, 1.5m long LCO²
• Filter assembly (8784) removes water, oil and particulates down to 0.5μm
• Static-free exhaust tubing for the PURGE/VENT/BLEED and COOL exhaust outlets. Spare chamber O-ring (2), chamber lamps (2) and 5A slo-blow fuses (2). User manual and check-out data sheet.
