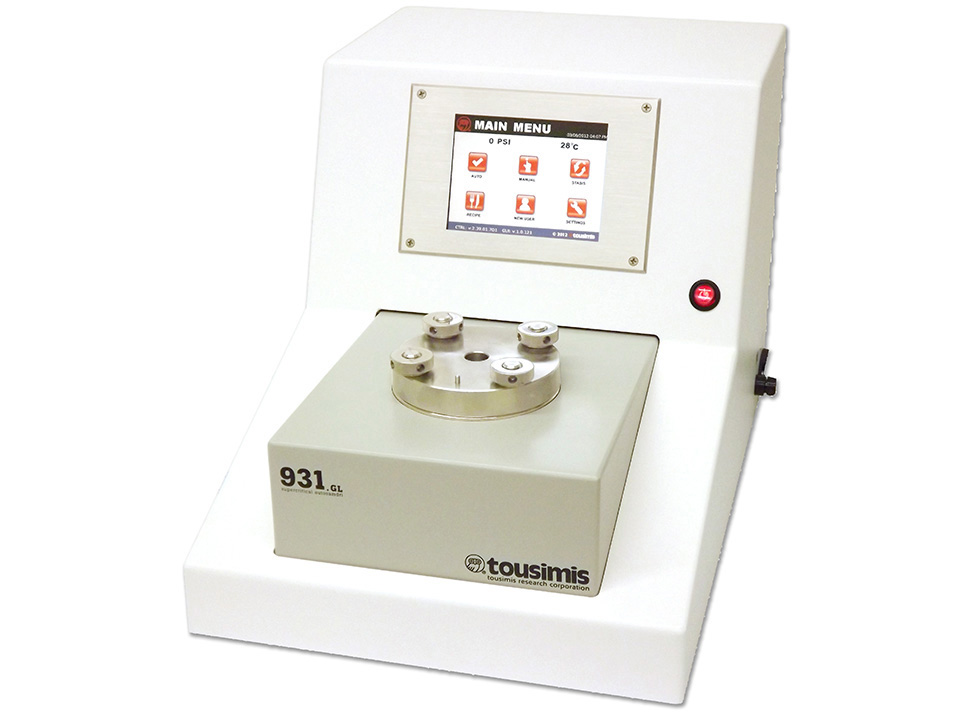

Tousimis® 931 automatic critical point dryer with 63.5mm/2.50″ diameter chamber
Tousimis Autosamdri®-931 critical point dryer. Consisting of: Bright LCD touchscreen control with choice of factory default settings or to create custom “recipes” Metering valves with Vernier handles that include a slow fill for very delicate specimens. Internal 0.5μm particle filtration – protects specimens and valves. Process chamber (63.56mm/2.5″ diameter, 31.75mm/1.25” depth). Rapid adiabatic chamber cooling. Teflon chamber spacers to conserve liquid CO2 when smaller specimen holders are used.
Internal condensing muffler – captures and eliminates purge exhaust noise.
Top-loading process chamber that is lit for easy viewing.
Non-mechanical purge stirring for complete purge.
‘Stasis” software which gives complete range control.
Cabinet (W) 38.0cm x (H) 33.5cm x (D) 50.8cm with static-free design.
Flexible high-pressure braided stainless steel inert Teflon® lined LCO2 supply hose, 1.5m long LCO2.
Filter assembly (8784) removes water, oil and particulates down to 0.5μm.
Static-free exhaust tubing for the PURGE/VENT/BLEED and COOL exhaust outlets. Spare chamber O-ring (2), chamber lamps (2) and 5A slo-blow fuses (2). User manual and check-out data sheet.
