EM-Tec C-Square multi SEM pin stub holders

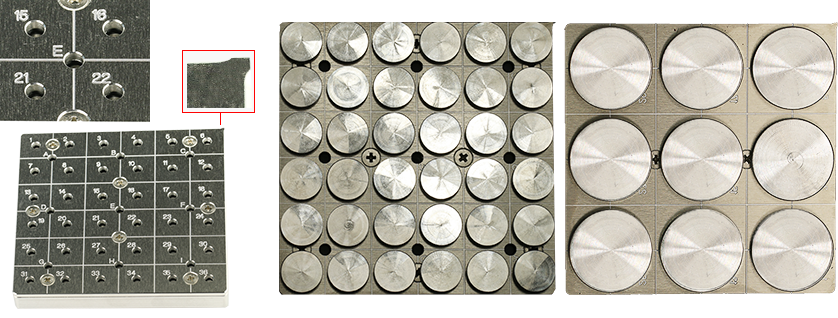

EM-Tec C-Square multi pin stub holders are primarily designed to hold multiple Ø12.7mm and/or Ø25.4mm pin stubs with the standard 3.2mm pin diameter. Larger or smaller pin stubs can also be used on the EM-Tec C-Square multi pin stub holders. They offer optimum X-Y coverage of the SEM stage and allow for easy alignment with the square sides and additionally engraved lines in X-Y directions. To facilitate quick and easy loading and exchange of the pin stubs, proprietary conductive gripping O-rings hold the pin stubs in place and provide a conductive path at the same time. The EM-Tec C-Square multi pin stub holders are available in 7 different sizes:
- EM-Tec CS9/4 C-Square multi pin stub holder for 9x Ø12.7mm or 4 x Ø25.4mm pin stubs
- EM-Tec CS16/4 C-Square multi pin stub holder for 16x Ø12.7mm or 4 x Ø25.4mm pin stubs
- EM-Tec CS18/6 C-Square multi pin stub holder for 18x Ø12.7mm or 6 x Ø25.4mm pin stubs
- EM-Tec CS25/4 C-Square multi pin stub holder for 25x Ø12.7mm or 4 x or 9 x Ø25.4mm pin stubs
- EM-Tec CS36/9 C-Square multi pin stub holder for 36x Ø12.7mm or 9 x Ø25.4mm pin stubs
- EM-Tec CS49/9 C-Square multi pin stub holder for 49x Ø12.7mm or 9 x Ø25.4mm pin stubs
Feature and benefits of the EM-Tec C-Square multi pin stub holders:
- Conductive pin gripping O-rings for quick and easy exchange of stubs
- Compatible with standard pin stubs and short Zeiss pin stubs with 3.2mm pin diameter
- Square holders optimised for X-Y travel directions
- Reference point in the upper right corner
- Easy programmable locations
- Alphanumeric location ID
- Engraved orientation lines to facilitate X-Y alignment
- Fully compatible with all EM-Tec SEM stage adapters
- Ideal for automated SEM/EDX particle analysis and GSR analysis
- Suitable for correlative & corroborative microscopy applications

 EM-Tec C-Square multi pin stub SEM holders are available with:
- standard pin to fit on SEM which use the standard pin: FEI, Philips, Tescan, Phenom, Pemtron, Cambridge Instruments, Leica, CamScan SEMs.
- M4 threaded hole compatible with Hitachi SEMs, FESEMs and table top SEMs and with the EM-Tec versatile SEM stage adapters
- Ø14mm JEOL stub compatible with JEOL and EM-Tec stage adapters with a Ø14mm connection
Specifications of the EM-Tec C-square multi pin stub holders:
Product # |
Style |
Ø12.7 stubs |
Ø25.4 stubs |
Pattern |
Pitch Ø12.7 |
Size |
SEM stage comp. |
12-002332 |
EM-Tec CS9/4 C-Square |
9 |
4 |
3×3 |
14 mm |
42x42mm |
Standard Ø3.2 mm pin |
12-003332 |
EM-Tec CS9/4 C-Square |
9 |
4 |
3×3 |
14 mm |
42x42mm |
M4 |
12-006332 |
EM-Tec CS9/4 C-Square |
9 |
4 |
3×3 |
14 mm |
42x42mm |
Ø14mm JEOL stub |
12-002333 |
EM-Tec CS16/4 C-Square |
16 |
4 |
4×4 |
14 mm |
56×56 mm |
Standard Ø3.2 mm pin |
12-003333 |
EM-Tec CS16/4 C-Square |
16 |
4 |
4×4 |
14 mm |
56×56 mm |
M4 |
12-006333 |
EM-Tec CS16/4 C-Square |
16 |
4 |
4×4 |
14 mm |
56×56 mm |
Ø14mm JEOL stub |
12-002338 |
EM-Tec CS18/6 C-Square |
18 |
6 |
3×6 |
16 mm |
48×96 mm |
Standard Ø3.2 mm pin |
12-003338 |
EM-Tec CS18/6 C-Square |
18 |
6 |
3×6 |
16 mm |
48×96 mm |
M4 |
12-006338 |
EM-Tec CS18/6 C-Square |
18 |
6 |
3×6 |
16 mm |
48×96 mm |
Ø14mm JEOL stub |
12-002334 |
EM-Tec CS25/4 C-Square |
25 |
4 or 9 |
5×5 |
14 mm |
70×70 mm |
Standard Ø3.2 mm pin |
12-003334 |
EM-Tec CS25/4 C-Square |
25 |
4 or 9 |
5×5 |
14 mm |
70×70 mm |
M4 |
12-006334 |
EM-Tec CS25/4 C-Square |
25 |
4 or 9 |
5×5 |
14 mm |
70×70 mm |
Ø14mm JEOL stub |
12-002335 |
EM-Tec CS36/9 C-Square |
36 |
9 |
6×6 |
14 mm |
84×84 mm |
Standard Ø3.2 mm pin |
12-003335 |
EM-Tec CS36/9 C-Square |
36 |
9 |
6×6 |
14 mm |
84×84 mm |
M4 |
12-006335 |
EM-Tec CS36/9 C-Square |
36 |
9 |
6×6 |
14 mm |
84×84 mm |
Ø14mm JEOL stub |
12-002336 |
EM-Tec CS49/9 C-Square |
49 |
9 |
7×7 |
14 mm |
98×98 mm |
Standard Ø3.2 mm pin |
12-003336 |
EM-Tec CS49/9 C-Square |
49 |
9 |
7×7 |
14 mm |
98×98 mm |
M4 |
12-006336 |
EM-Tec CS49/9 C-Square |
49 |
9 |
7×7 |
14 mm |
98×98 mm |
Ø14mm JEOL stub |
