EM-Tec ESD safe carbon fibre reinforced plastic tweezers

EM-Tec ESD safe carbon fibre reinforced plastic tweezers are intended for handling of scratch-sensitive or brittle materials, magnetic materials and for harsh chemical applications. These high quality Swiss-made tweezers are available in two materials:

  • EM-Tec CT tweezers are made from poly vinylidene fluoride (PVDF) reinforced with 30% carbon fibre. An ESD safe, tough material with excellent chemical resistance.
  • EM-Tec CN tweezers are made from the engineering plastic polyamide66 reinforced with 30% carbon fibre.  An ESD safe, strong material with excellent wear and abrasion resistance. It has a lower cost compared to CT material.

Both materials are ESD safe and strong due to added carbon fibre. The materials differ in strength, chemical resistance and temperature compatibility. Softer plastic tweezers are ideal for handling scratch-sensitive materials such as aluminium, brass, copper and plastics. They are also better for handling silicon chips or glass to avoid damage and debris. Between the two types of material and seven styles of tweezers, virtually all applications can be covered.

EM-Tec CT polyvinylidene fluoride (PVDF) carbon fibre reinforced ESD-safe plastic tweezers

ESD-safe EM-Tec CT tweezers are made from PVDF polyvinylidene fluoride and carbon fibre reinforced (30%). This material shares many properties with PTFE. These tweezers combine excellent mechanical strength and toughness with excellent chemical resistance. They are heat stabilised, have a high heat capacity and can be used continuously at temperatures up to 150°C. They are fully cleanroom compatible due to high abrasion resistance with low particle extraction value. Excellent chemical resistance to solvents, mineral oils, halogens, nitric acid, hydrochloric acid and hydrofluoric acid. Resistant to UV and nuclear radiation. Fully ESD safe material.

Typical applications include:

  • Handling of very scratch and contamination sensitive materials
  • Cleaning and etching operations
  • Assembly and handling of medical devices.
  • Hard and brittle materials such as silicon pieces or glass
  • Fully non-magnetic – ideal for handling magnets and magnetic materials

For comprehensive chemical data, consult the Chemical Compatibility Chart.

Specifications of EM-Tec CT PVDF carbon fibre reinforced ESD safe plastic tweezers

Product # Style Material Description Length Points size – W x H

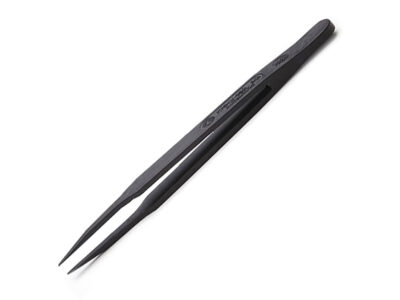

50-011702 702A.CT PVDF/carbon fibre blunt 115mm 2.00 x 0.20mm

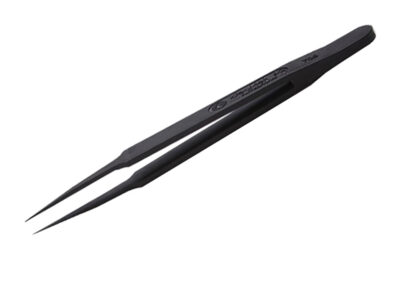

50-011705 705.CT PVDF/carbon fibre fine 115mm 0.20 x 0.1mm

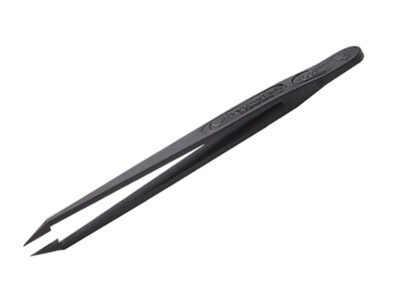

50-011707 707.CT PVDF/carbon fibre sharp 115mm 0.25 x 0.12mm

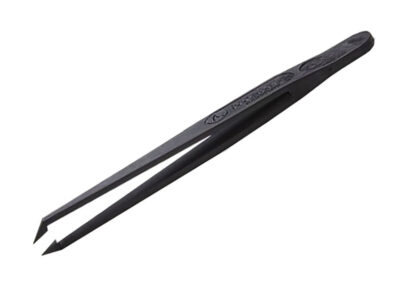

50-011708 708.CT PVDF/carbon fibre sharp, angled 115mm 0.25 x 0.12mm

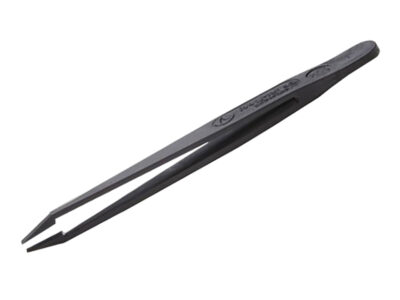

50-011709 709.CT PVDF/carbon fibre flat 115mm 3.50 x 0.12mm

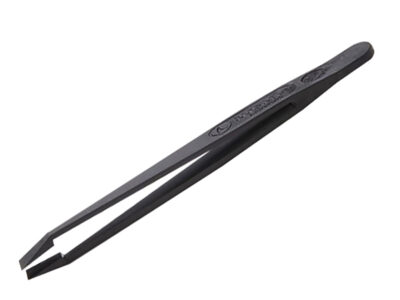

50-011710 710.CT PVDF/carbon fibre flat, thin 115mm 8.00 x 0.12mm

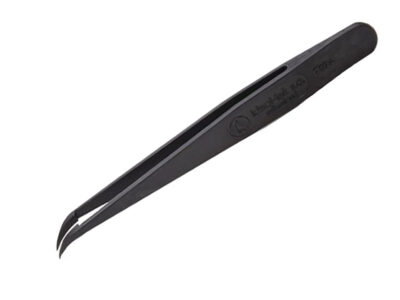

50-011717 707A.CT PVDF/carbon fibre sharp, curved 115mm 0.25 x 0.18mm

Technical Support Bulletin: TSB 50-011702 Material for EM-Tec CT carbon fibre reinforced PVDF ESD safe plastic tweezers

EM-Tec CN polyamide (PA66) carbon fibre reinforced ESD safe plastic tweezers

These tweezers are made from engineering plastic polyamide66 and reinforced with 30% carbon fibres. This ESD safe material is rigid, exhibits excellent tensile and flexural strength and shows excellent wear and abrasion resistance. It is self-lubricating, has good heat capacity and good chemical resistance against oils, grease, fuels and non-polar solvents. It is not resistant to strong acids, alkalies, hot water or steam. For chemical applications use EM-Tec CT PVDF carbon fibre reinforced tweezers. Typical applications are frequent handling of sensitive samples, components, mechanical parts, silicon substrates, ceramics, glass and soft materials. These fully non-magnetic tweezers are ideal for handling magnets and magnetic materials.
For comprehensive chemical data, consult the Chemical_compatibility_plastic_material_chart_ca_cp_lc_st_gn

Specifications of EM-Tec CN polyamide carbon fibre reinforced ESD safe plastic tweezers

Product # Style Material Tips Length Points size – W x H

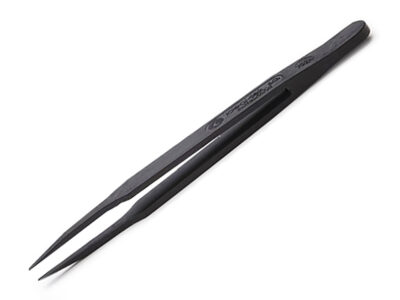

50-012702 702A.CN PA66/carbon fibre blunt 115mm 2.00 x 0.20mm

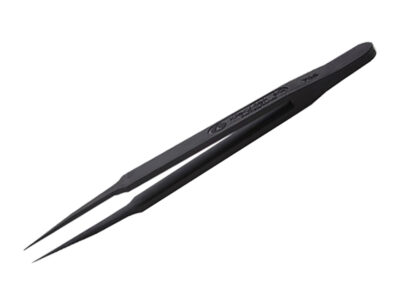

50-012705 705.CN PA66/carbon fibre fine 115mm 0.20 x 0.1mm

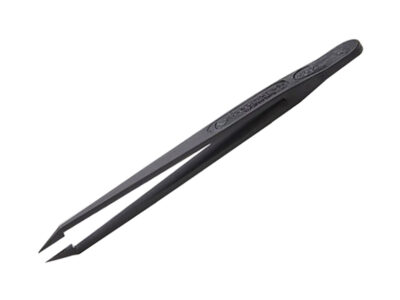

50-012707 707.CN PA66/carbon fibre sharp 115mm 0.25 x 0.12mm

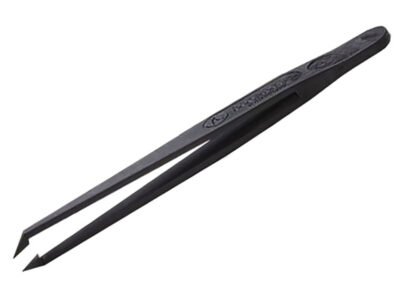

50-012708 708.CN PA66/carbon fibre sharp, angled 115mm 0.25 x 0.12mm

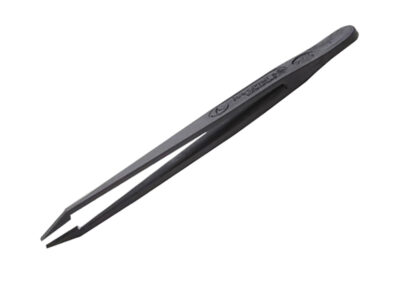

50-012709 709.CN PA66/carbon fibre flat 115mm 3.50 x 0.12mm

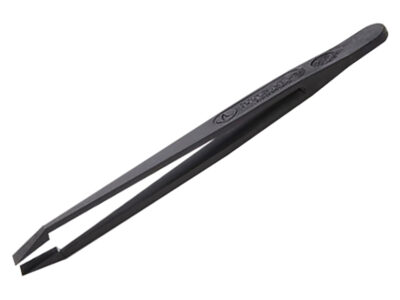

50-012710 710.CN PA66/carbon fibre flat, thin 115mm 8.00 x 0.12mm

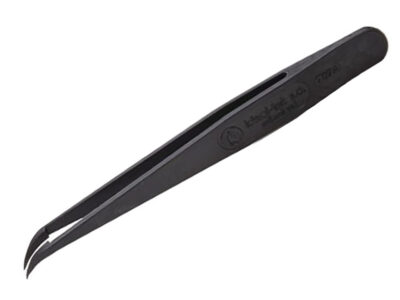

50-012717 707A.CN PA66/carbon fibre sharp, curved 115mm 0.25 x 0.18mm

Technical Support Bulletin: TSB 50-012702 Material for EM-Tec CN carbon fibre reinforced polyamide ESD safe plastic tweezers



Ordering information for EM-Tec CT PVDF carbon fibre reinforced ESD safe plastic tweezers

Ordering information for the EM-Tec CN polyamide carbon fibre reinforced ESD safe plastic tweezers.

These tweezers are made from engineering plastic polyamide66 and reinforced with 30% carbon fibres.
