EM-Tec filter disc holders for SEM / EDS analysis

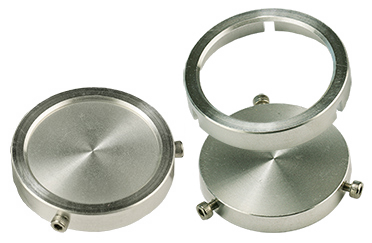

EM-Tec filter disc holders are developed to hold flat discs type filters to enable SEM / EDS analysis. EM-Tec filter disc holders comprise of two parts; a flat base plate to hold the filter disc and a cap which acts as clamping ring to keep the filter flat on the base. The cap is secured with three screws at the side of the base plate. The base plate and clamping ring are made from vacuum aluminium; the screws are made form stainless steel. The EM-Tec filter disc holders are available for 13, 25, 35, 47 and 90mm filter discs. Custom diameters can be made on request. The edge of the cap has a 45° angle to avoid contribution of aluminium to the EDS spectra. The EM-Tec filter disc holders enable SEM / EDS analysis of particles, fibres and debris on the filters.  They are available with:

  • standard pin to fit on SEM using the standard pin; Thermo Fisher,  FEI, Philips, Tescan, Phenom,  Cambridge Instruments, Leica and CamScan SEMs.
  • M4 threaded hole; compatible with Hitachi SEMs, FESEMs and table top SEMs and with the EM-Tec versatile SEM stage adapters
  • Ø14mm JEOL stub compatible with JEOL and EM-Tec stage adapters with a Ø14mm connection

Additionally available is the EM-Tec XL 100 multi-filter holder, which has been developed to hold up to 4 filter disc holders in the SEM chamber. The EM-Tec XL 100 is available for filter disc holders with pin stubs or M4 threaded holes.

Capacity and dimensions for the  EM-Tec filter disc holders:

Product #

Type

Filter sizes

Dimensions w/o pin

Securing method

SEM stage comp.

12-000283

F13

Ø13mm

Ø17.0×9.5mm

Clamp ring/screws

Standard 3.2mm pin

12-000383

F13

Ø13mm

Ø17.0×9.5mm

Clamp ring/screws

M4 thread

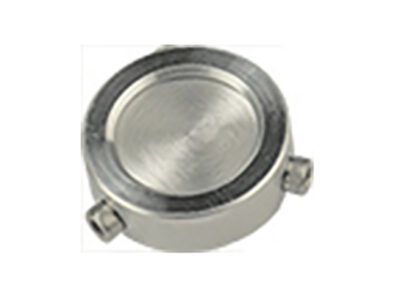

12-000683

F13

Ø13mm

Ø17.0×9.5mm

Clamp ring/screws

Ø14mm JEOL stub

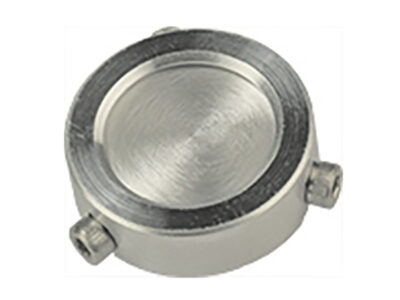

12-000285

F25

Ø25mm

Ø29.5×9.5mm

Clamp ring/screws

Standard 3.2mm pin

12-000385

F25

Ø25mm

Ø29.5×9.5mm

Clamp ring/screws

M4 thread

12-000685

F25

Ø25mm

Ø29.5×9.5mm

Clamp ring/screws

Ø14mm JEOL stub

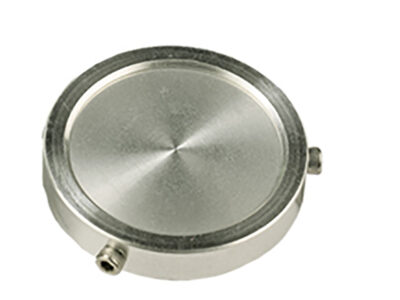

12-000291

F35

Ø35mm

Ø39.0×9.5mm

Clamp ring/screws

Standard 3.2mm pin

12-000391

F35

Ø35mm

Ø39.0×9.5mm

Clamp ring/screws

M4 thread

12-000691

F35

Ø35mm

Ø39.0×9.5mm

Clamp ring/screws

Ø14mm JEOL stub

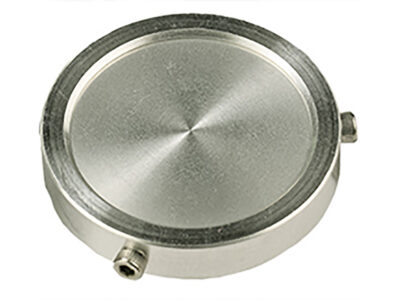

12-000287

F47

Ø47mm

Ø51.0×9.5mm

Clamp ring/screws

Standard 3.2mm pin

12-000387

F47

Ø47mm

Ø51.0×9.5mm

Clamp ring/screws

M4 thread

12-000687

F47

Ø47mm

Ø51.0×9.5mm

Clamp ring/screws

Ø14mm JEOL stub

12-000290

F90

Ø90mm

Ø97.0×9.5mm

Clamp ring/screws

Standard 3.2mm pin

12-000390

F90

Ø90mm

Ø97.0×9.5mm

Clamp ring/screws

M4 thread

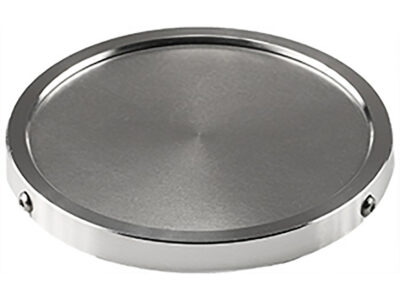

12-000690

F90

Ø90mm

Ø97.0×9.5mm

Clamp ring/screws

Ø14mm JEOL stub

Please contact us if need you need filter disc holders other than listed on this page. Custom disc filter holders up to Ø110mm diameter can be manufactured upon request.

Ordering information:



Filter disc holders for Pin stubs

Filter disc holders for JEOL

Filter disc holders for Hitachi M4
