EM-Tec SEM stub based compact specimen holders

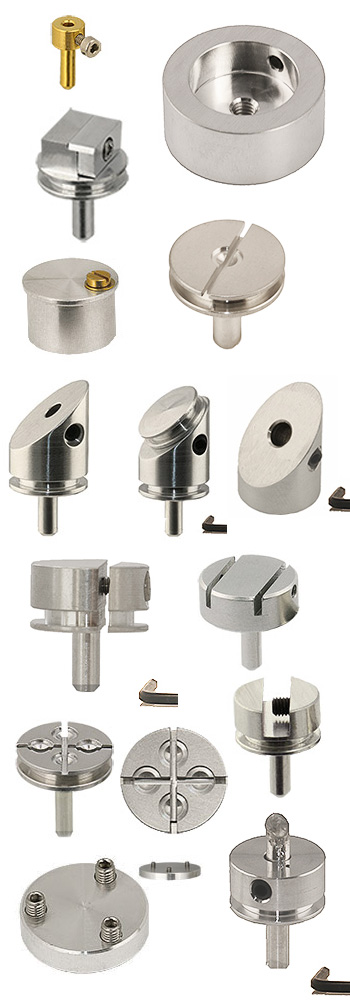

EM-Tec stub based SEM specimen holders are all small SEM specimen holders based on (modified) SEM specimen stubs. They have the same footprint as the original SEM specimen stubs and are directly compatible with the SEM stage or SEM specimen stub holder. These affordable specimen holders increase efficiency and reduce specimen preparation time. Using specimen holders reduces the use of conductive adhesives which can be a source of contamination. The EM-Tec stub based small specimen holders formats are:
- Standard pin stub based compact specimen holders
- JEOL cylinder stub based specimen holders
- Hitachi M4 stub based specimen holders
The pin stub based specimen holders comprise the largest selection; they can be easily used on other SEM platforms by using the cost efficient EM-Tec SEM stub adapters. All EM-Tec compact SEM stub based SEM specimen holders are precision machined from vacuum grade aluminium unless otherwise noted. Provided with set screws and allen keys.

EM-Tec pin stub based compact specimen holders
There is a wide choice of the compact EM-Tec SEM pin stub based specimen holders. Since they are small and using the standard pin stub format, they will fit in virtually any SEM compatible with standard pin stubs. They are based on standard SEM pin stubs or made from modified pin stubs with a pin size of Ø3.15mm and a pin length of 9.5mm. Ideal for table top SEMs, such as the Phenom, but just as useful on laboratory grade SEMs and FESEMs. Using a specimen holders is quicker, cleaner and provides more stability than conductive tapes or glues.
Capacity, stub size and specimen holding method of the EM-Tec pin stub based compact specimen holders
Product # | Style | Capacity | Size w/o pin | Specimen holding method |
12-000117 | EM-Tec PS2 | 0 – Ø2mm | Ø6x4mm | Set screw |
10-002212 | EM-Tec PS3 | 2mm thickness | Ø12.7×3.2mm | Screw/washer |
10-002240 | EM-Tec PS4 | 0 – 4mm | Ø12.7×7.2mm | Set screw |
10-002244 | EM-Tec PS44 | 4 x 0-4mm | Ø25.4×7.2mm | 4 x set screw |
10-002223 | EM-Tec PS23 | 2×2.5mm | Ø25×7.2mm | Set screw |
10-002227 | EM-Tec PS27 | 2x7mm thickness | Ø25×7.2mm | Set screw |
10-002218 | EM-Tec PS6 | 0 – 6mm | Ø12.7×7.2mm | Mini vice jaws |
12-000230 | EM-Tec PS9 | 0 – 8mm | Ø15x10mm | Mini vice jaws |
10-002242 | EM-Tec PS7 | 2 x 1mm | Ø15x10mm | Set screw |
12-000112 | EM-Tec PS12 | 0 – 12mm | Ø25×7.2mm | Set screw |
10-002213 | EM-Tec PS5 | 0 – Ø3.5mm | Ø12.7×7.2mm | Set screw |
10-002216 | EM-Tec PS8 | 0 – Ø6mm | Ø12.7×7.2mm | Set screw |
12-000116 | EM-Tec PS16 | 0 – Ø16mm | Ø25×7.2mm | Set Screw |
10-002211 | EM-Tec PS11 | 1 x 3.05mm Grid | Ø12.7×3.2mm | Gravity |
10-002214 | EM-Tec PS14 | 4 x 30.5mm Grid | Ø12.7×3.2mm | Gravity |
11-000210 | EM-Tec PE10 | Ø3.2mm pin | Ø12.7×13.2mm | Set screw |
12-000211 | EM-Tec PS15 | Ø15mm | Ø15x15mm | Adhesive |
12-000270 | EM-Tec F12 | 2 x FIB grid | Ø12.7x8mm | Vice jaws |
10-002236 | EM-Tec P36 | Ø3.2mm pin | Ø12.7x17mm | Set screw |
10-002238 | EM-Tec P38 | Ø3.2mm pin | Ø12.7x17mm | Set screw |
10-002245 | EM-Tec P45 | Ø3.2mm pin | Ø12.7x17mm | Set screw |
10-002246 | EM-Tec P45M | M4 | Ø12.7x17mm | M4 thread |
10-002270 | EM-Tec P70 | Ø3.2mm pin | Ø12.7x20mm | Set screw |
10-002274 | EM-Tec P70M | M4 | Ø12.7x20mm | M4 thread |
-
EM-Tec PS11 mini-pin stub grid holder for 1 x TEM grid
EM-Tec PS11 mini pin stub grid holder for 1 x TEM grid- Ø12.7×3.2mm – pin (each)
£17.12 Add to basket -
EM-Tec PS5 pin stub, round clamp up to Ø3.5mm
EM-Tec PS5 pin stub round clamp up to Ø3.5mm – Ø12.7 x 7.2mm – pin (each)
£16.24 Add to basket -
EM-Tec PS14 mini pin stub grid holder for four TEM grids
EM-Tec PS14 mini pin stub grid holder for 4 x TEM grids- Ø12.7 x3.2mm – pin (each)
£21.50 Add to basket -
EM-Tec PS8 pin stub round clamp up to Ø6mm
EM-Tec PS8 pin stub round clamp up to Ø6mm – Ø12.7 x 7.2mm – pin (each)
£16.24 Add to basket -
PH10 pin stub extender, 10mm extra height – Ø12.7 x 22.7mm
EM-Tec PH10 pin stub extender, 10mm extra height, Ø12.7 x 22.7mm – aluminium (each)
£21.50 Add to basket -
PS16 pin stub round clamp up to Ø16mm, Ø25 x 7.2mm – pin
EM-Tec PS16 pin stub round clamp up to Ø16mm, Ø25 x 7.2mm – pin (each)
£21.50 Add to basket -
F12 compact FIB grid holder for up to two FIB grids – pin
EM-Tec F12 compact FIB grid holder for up to 2 FIB grids- pin (each)
£25.89 Add to basket
EM-Tec cylinder stub based compact specimen holders for JEOL SEMs
The compact EM-Tec cylinder stub based specimen holders for JEOL SEMs are made from either the Ø12.2×10 or Ø25x10mm JEOL cylinder stubs. They are directly compatible with the JEOL stub holders on the SEM stage. Perfect for the JEOL Neoscope 5000/6000 table top SEMs, but equally useful on laboratory grade SEMs and FESEMs.
Capacity, stub size and specimen holding methode of the EM-Tec JEOL stub based compact specimen holders
Product # | Style | Capacity | Stub size | Specimen holding method |
12-000502 | EM-Tec JS2 | 0 – Ø2mm | Ø12.2x10mm | Set screw |
12-000503 | EM-Tec JS3 | 2mm thickness | Ø12.2x10mm | Screw/washer |
12-000504 | EM-Tec JS4 | 0 – 4mm | Ø12.2x10mm | Set screw |
12-000512 | EM-Tec JS12 | 0 – 12mm | Ø25x10mm | Set screw |
12-000514 | EM-Tec JS14 | 0 – Ø16mm | Ø25x10mm | Set screw |
-
Mini-cylinder stub tube/needle clamp Ø2mm, JEOL, Ø12.2 x 10mm
EM-Tec JS2 mini cylinder stub tube/needle clamp Ø2mm, JEOL Ø12.2 x 10mm (each)
£16.24 Add to basket -
JS14 cylinder-stub round clamp for up to Ø16mm, Ø25 x10mm
EM-Tec JS14 cylinder stub round clamp for up to Ø16mm, JEO Ø25 x 10mm (each)
£21.50 Add to basket
EM-Tec M4 stub based compact specimen holders for Hitachi SEMs
The compact EM-Tec cylinder stub based for Hitachi SEMs are based on either the Ø15mm or the Ø25mm Hitachi M4 specimen stubs. They can be used directly on the Hitachi SEM stage adapters and the EM-Tec SEM stage adapters with M4 thread. They are perfect for the Hitachi TM1000, TM3000, TM3030 table top SEMs, but will be very useful on all other Hitachi SEMs as well.
Capacity, stub size and specimen holding methode of the EM-Tec Hitachi M4 stub based compact specimen holders
Product # | Style | Capacity | Stub size | Specimen holding method |
12-000331 | EM-Tec HS2 | 0 – Ø2mm | Ø15x10mm x M4 | Set screw |
12-000311 | EM-Tec HS3 | 2mm thickness | Ø15x10mm x M4 | Screw/washer |
12-000306 | EM-Tec HS6 | 0 – 6mm | Ø15x10mm x M4 | Set screw |
12-000330 | EM-Tec HS9 | 0 – 8mm | Ø15x10mm x M4 | Mini vise jaws |
12-000315 | EM-Tec HS15 | 0- 16mm | Ø25x10mm x M4 | Set screw |
12-000328 | EM-Tec HS7 | 2 x 1mm | Ø15x6mm x M4 | Set screw |
12-000304 | EM-Tec HS12 | 0 – Ø12.2mm | Ø15x10mm x M4 | Set screw |
12-000307 | EM-Tec HS10 | 0 – Ø10mm | Ø15x10mm x M4 | Set screw |
12-000324 | EM-Tec HS16 | 0 – Ø16mm | Ø25x10mm x M4 | Set screw |
12-000356 | EM-Tec H3 | 3 x Ø15mm | Ø25x6mm x M4 | 3 x M4 |
11-000309 | EM-Tec HE-10 | 10mm H | Ø15x10mm x M4 | M4 |
12-000345 | H45P | Ø3.2mm pin | Ø12.7x17mm x M4 | Set screw |
12-000341 | H45 | M4 | Ø12.7x17mm x M4 | M4 |
12-000370 | H70P | Ø3.2mm pin | Ø12.7x20mm x M4 | Set screw |
12-000371 | H70 | M4 | Ø12.7x20mm x M4 | M4 |
-
EM-Tec H10 Hitachi M4 stub extender, 10mm fixed, Ø15 x 10mm – M4
EM-Tec H10 Hitachi M4 stub extender 10mm fixed, Ø15 x 10mm – M4 (each)
£17.12 Add to basket -
M4 cylinder stub round clamp up to Ø10mm, Ø15 x 10mm – M4
EM-Tec HS10 M4 cylinder stub round clamp up to Ø10mm, Ø15 x 10mm – M4 (each)
£21.50 Add to basket -
HS16 M4 cylinder stub round clamp up to Ø16mm, Ø25 x 10mm – M4
EM-Tec HS16 M4 cylinder stub round clamp up to Ø16mm, Ø25 x 10mm – M4 (each)
£21.50 Add to basket -
Mini M4 cylinder stub tube/needle clamp Ø2mm, Ø15 x 10mm – M4
EM-Tec HS2 mini M4 cylinder stub tube/needle clamp Ø2mm – Ø15x10mm- M4 (each)
£16.24 Add to basket -
H3 multi-holder for three Ø15mm Hitachi stubs, Ø25 x 6mm – M4
EM-Tec H3 multi-stub holder for three Ø15mm Hitachi stubs, Ø25 x 6mm – M4 (each)
£25.02 Add to basket -
EM-Tec HS12 M4 cylinder stub round clamp up to Ø12.2mm M4
EM-Tec HS12 M4 cylinder stub round clamp up to Ø12.2mm, Ø15x10mm, M4 (each)
£20.82 Add to basket
