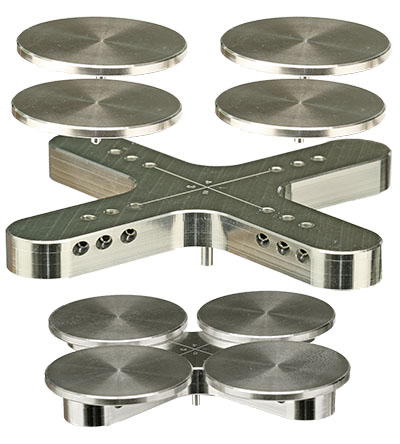

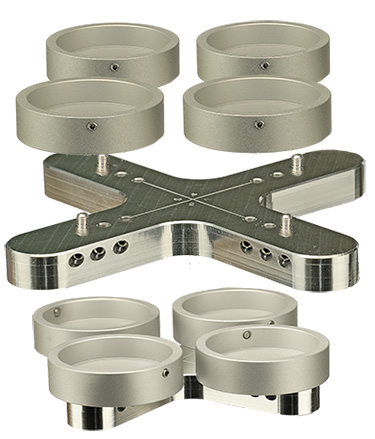

EM-Tec SEM XL100 multi holder for 4 large stubs or 4 specimen holders

EM-Tec XL100 multi holder is an innovative holder designed to hold 4 large SEM specimen stubs or 4 SEM specimen holders up to a diameter of 53mm. This holder is intended for use on large SEM specimen stages with an X-Y travel range of 100x100mm or more. This practical and affordable holder greatly increases productivity for multiple specimen imaging and analysing tasks. The EM-Tec XL100 multi holder can also be used on smaller stages in combination with the EM-Tec XT off-centre stage extender strips.
The unique X shape of the holder saves weight, enables easy loading and securing stubs or holders on the EM-Tec XL100 multi holder. At the centre of the EM-Tec XL100, the engraved X and numbers enable easy identification of each “leg”. Supplied with additional stub extenders to increase height and to bring the holders closer to the pole piece if flat specimens need to be imaged or analysed.

Compatible SEM specimen stubs for the EM-Tec XL100 multi holder are:

  • Standard pin specimen stubs with 25.4, 32, 38 and 50mm diameter
  • Short Zeiss pin specimen stubs with 25.4, 32, 38 and 50mm diameter
  • Hitachi M4 threaded cylinder specimen stubs with 25, 32 and 50mm diameter

Compatible EM-Tec SEM specimen holders are:

  • EM-Tec bulk specimen holders R32 and B26
  • EM-Tec Metallographic mount holders M26, M32 and M40
  • EM-Tec multi pin stub holders P4, P6 and P8
  • EM-Tec filter holders F35 and F47

The EM-Tec XL100 increases productivity by holding multiple large specimens which reduces venting and pumping times. Additionally, multiple specimens can be analysed in a single session without operator interference (overnight operation).

Specifications of the EM-XL100 multi holder:

Holder EM-Tec XL100, pin EM-Tec XL100, M4
Product # 12-000281 12-000381
Stub holding Standard Ø3.2mm pin Standard Ø3.2mm pin &
M4 thread
Stub sizes Ø25, Ø32, Ø38 and Ø50mm Ø25, Ø32 Ø38 and Ø50mm
Stage adapter Standard Ø3.2mm pin M4 threaded hole
Stub extender 2 x 10mm (#11-000210) 2 x 10mm (#11-000309)
Material aluminium
Dimensions 90 x 90 x10mm



      #12-000281 EM-Tec SEM XL100 multi holder for 4 large stubs

     #12-000381 EM-Tec SEM XL100 multi holder  for 4 large holders
