EM-Tec spring-loaded SEM sample holders

EM-Tec spring-loaded vice type SEM sample holders are quick and easy to use. They hold the sample by clamping it between the moving jaws, this enables quick sample loading and reduces down time.  They are especially useful when similar samples or series of the same sample need to be examined. Using a spring-loaded SEM sample holder is easier, quicker and cleaner than using conductive adhesives or glue. A vice clamps the sample and provides the rigidity needed for high resolution imaging. The spring-loaded EM-Tec SEM sample holders currently available are:

  • EM-Tec VS8 mini spring-loaded vice for samples up to 8mm
  • EM-Tec VS12 compact single action spring-loaded vice for samples up to 12mm
  • EM-Tec VS12-T compact spring-loaded vice for up to 12mm with 0-90 degrees tilt capabilities
  • EM-Tec VS26 medium double action spring-loaded vice for samples up to 26mm
  • EM-Tec VS42 large universal double action spring-loaded vice for samples up to 42mm

The EM-Tec vice sample holders are available with pin and with an M4 threaded hole. For use on JEOL SEMs, we suggest to use an EM-Tec SEM stub adapter or an EM-Tec stage adapter.

EM-Tec VS12 compact single action spring-loaded
vise holder for up to 12mm
#12-000220 (with pin) or #12-000320 (M4 thread).

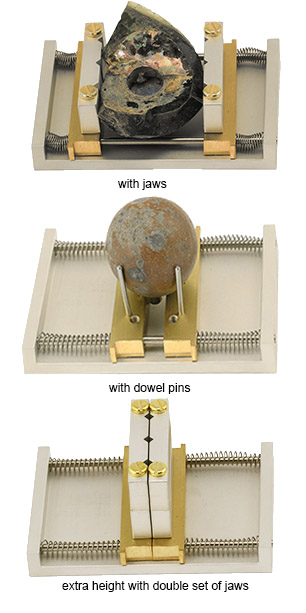

 EM-Tec VS42 universal double sided spring-loaded vice
#12-000220 (with pin) or #12-000320 (M4 thread).

Specifications of the EM-Tec spring-loaded vice clamp holders:

Product #

Type

Dimensions

Max. sample size

Clamping method

Stage compatible

12-002228

EM-Tec VS8

25x30x12.5mm

8mm

Spring-loaded

3.2mm Pin stub

12-003228

EM-Tec VS8

25x30x12.5mm

8mm

Spring-loaded

M4 thread

12-000221

EM-Tec VS12

30x25x12mm

12mm / Ø18mm

Spring-loaded

3.2mm Pin stub

12-000321

EM-Tec VS12

30x25x12mm

12mm / Ø18mm

Spring-loaded

M4 thread

12-002221

EM-Tec VS12-T

30x35x18mm

12mm / Ø18mm

Spring-loaded vice

3.2mm Pin stub

12-003321

EM-Tec VS12-T

30x35x12mm

12mm / Ø18mm

Spring-loaded vice

M4 thread

12-000222

EM-Tec VS26

50x25x12mm

26mm / Ø34mm

Spring-loaded vice

3.2mm Pin stub

12-000322

EM-Tec VS26

50x25x12mm

26mm / Ø34mm

Spring-loaded

M4 thread

12-000220

EM-Tec VS42

76x51x26mm

42mm / Ø50mm

Spring-loaded

3.2mm Pin stub

12-000320

EM-Tec VS42

76x51x26mm

42mm / Ø50mm

Spring-loaded

M4 thread





Ordering information:
