EM-Tec U2 universal SEM specimen holder and SEM stubs adapter kit

EM-Tec U2 universal SEM specimen holder and SEM stub adapter kit has been created to hold a wide variety of SEM specimens up to 42mm. The specimens can be flat, round, block or awkwardly shaped. Also included in this kit is a useful selection of SEM stub adapters which enables using this kit on virtually any SEM. Fully compatible with TFS/FEI/Philips, JEOL, Hitachi, Tescan, Zeiss/LEO and other brands of SEMs.

Ideally suited for:

  • multi-user environments
  • labs with different brands of SEMs
  • labs with a large and changing variety of specimens
  • service labs to cope with different specimen stubs
  • portability between SEM platforms

The selection of popular and practical EM-Tec SEM specimen holders all include an M4 threaded hole. Fully compatible with the SEM stub adapters provided in this universal specimen holder kit and with Hitachi SEMs.

Included SEM stub adapters in the EM-Tec U2 kit are:

  • pin stub adapters for FEI/Philips, Zeiss/LEO, Tescan, Amray
  • a 12.2mm JEOL stub adapter with M4 screw
  • a 12.2mm JEOL stub adapter for pin stubs
  • EM-Tec P4 multi pin holder double as pin stub adapter for Hitachi  SEMs.

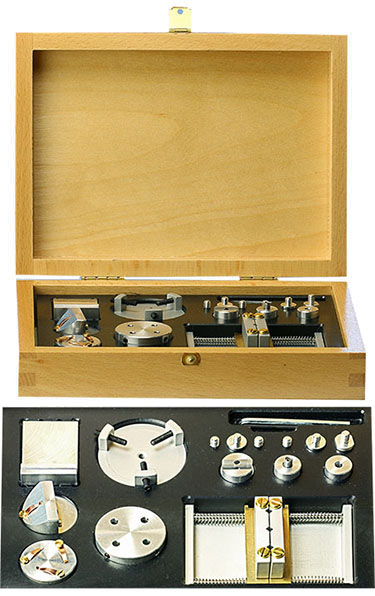

The complete kit is presented in a high quality wooden box with all the SEM specimen holder and adapters neatly arranged in a hard plastic insert. This kit can also be used to convert SEM specimen stubs up to 32mm diameter to fit other SEM brands.

Features of the EM-Tec U2 universal SEM specimen holder and adapter kit:

  • versatile and universal kit for specimens up to 42mm specimen size
  • quick and easy specimen holding
  • SEM platform independent
  • SEM platform interchangeable
  • conversion set for SEM specimen stubs included
  • effortless reconfiguration of SEM specimen holders
  • practical, productive, portable
  • neatly arranged in a wooden box

Download our Technical Support Bulletin:

Technical Support Bulletin: TSB 12-003399 EM-Tec U2 universal SEM sample holder and SEM stubs adapter kit

EM-Tec U2 universal SEM specimen holder and adapter kit includes all of the following:

SEM specimen holders :

Product #

Holder type

Description

Capacity

Specimen holding

12-000300

EM-Tec V22

Compact vice clamp

0-22mm

Vice jaws

12-000306

EM-Tec HS6

Mini vice clamp

0-6mm

Set screw

12-000314

EM-Tec P4

Multi holder for 4 pin stubs

4x pin stubs

Set screws

12-000320

EM-Tec S42

Universal spring-loaded vice holder

Up to 42mm

Vice jaws

12-000333

EM-Tec R32

Bulk specimen holder

Up to Ø32mm

Set screws

12-004920-3

EM-Tec S-Clip

3xS-Clip on Ø25mm M4 stub

Up to 2mm H

S-Clips

12-004927

EM-Tec S-clip

2xS-Clip on 45/90° on Ø25mm M4 stub

Up to 2mm H

S-Clips

 SEM stub adapters:

Product #

Adapter type

Description

Base

Adapts to

11-000106

EM-Tec ZR4

Short pin stub adapter with rim to M4

Short Zeiss pin

M4

11-000116

EM-Tec Z4

Short pin stub adapter to M4

Short Zeiss pin

M4

11-000109

EM-Tec PR4

Pin stub adapter with rim to M4

Standard pin

M4

11-000119 x 2

EM-Tec PT4

Pin stub adapter to M4

Standard pin

M4

11-000120

EM-Tec KR4

Long pin stub adapter with rim to M4

Long pin

M4

11-000513

EM-Tec J12P

JEOL Ø12.2mm stub to pin

Ø12.2x10mm JEOL stub

pin

11-000514

EM-Tec J12H

JEOL Ø12.2mm stub to M4

Ø12.2x10mm JEOL stub

M4
