EM-Tec versatile vice clamp sample holders
EM-Tec versatile vice clamp holders are large vice clamp sample holders with positionable vice clamp plates. These sample holders can accommodate large and heavy samples or even multiple samples. They are designed for SEMs with large sample stages which can cope with larger and or heavier samples.
The EM-Tec versatile vice clamp holders consist of a vice plate with two parallel rows of holes to position the vice clamp plates. The positionable vice clamp plates can be mounted on the baseplate in 10mm intervals for optimum sample size compatibility. Made from vacuum grade aluminium with brass mounting screws and steel clamping screws. The sample can be adequately held using the clamping screws; two sets of 3 with 10mm and 16mm length are provided with each vice clamp plate.
The EM-Tec versatile vice clamp holders are designed as a freely configurable holders. There are two models to fit various sample sizes:
- EM-Tec V80 versatile vice clamp holder – for samples up to 80mm
- EM-Tec V120 versatile vice clamp holder – for samples up to 120mm.
Additional vice clamp plates can be added to mount multiple samples in the same vice clamp holder. Currently , there are three types of vice clamps available:
- Standard vice clamp plates with 12mm height and 2 sets of 3 clamping screws
- Optional grooved vice clamp plates with 16mm height and 2 sets of 3 clamping screws
- Height extension vice clamp plates with 12mm height and 2 sets of 3 set clamping screws. Mount one or two extension vice clamp plates on the standard vice clamp plates to increase the clamp height to 24mm or even 36mm.
The standard and height extension vice clamp plates can be mounted either way to optimize the height of the set screws. With the additional vice clamp plates, you can freely configure the EM-Tec versatile vice clamp holders and you should be able mount virtually any sample up 80 mm or 120mm respectively.

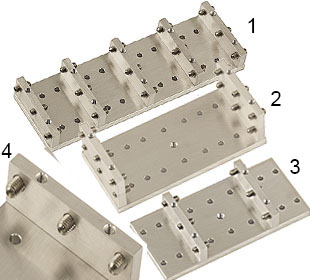

-1 #12-000205 EM-Tec V120 versatile vise clamp sample holder
up to 120 mm with extra clamp plates (#12-000204).
-2 #12-000303 EM-Tec V80 versatile vise clamp sample holder
for up to 80mm, M4, with EM-Tec VH12 height extension vise
clamp plates (#12-000207)
-3 #12-000303 EM-Tec V80 versatile vise clamp sample holder
for up to 80mm, M4, clamps in off set position.
-4 #12-000303 Clamp plates are attached in standard position
with set screws in a higher location.
Specifications of the EM-Tec versatile vice clamp holders:
Product # | Name | Dimensions | Interspacing | SEM stage X-Y travel | Stage compatible |
12-000203 | EM-TecV80 | 93x44x16.5mm | 20/30/40/50//60/70/80mm | 80x80mm | 3.2mm Pin stub |
12-000303 | EM-TecV80 | 93x44x16.5mm | 20/30/40/50/60/70/80mm | 80x80mm | M4 thread |
12-000603 | EM-TecV80 | 93x44x16.5mm | 20/30/40/50/60/70/80mm | 80x80mm | Ø14mm JEOL stub |
12-000205 | EM-TecV120 | 133x44x16.5mm | 20/30/40/50/60/70/80/90/100/110/120mm | 125x125mm | 3.2mm Pin stub |
12-000305 | EM-TecV120 | 133x44x16.5mm | 20/30/40/50/60/70/80/90/100/110/120mm | 125x125mm | M4 thread |
12-000605 | EM-TecV120 | 133x44x16.5mm | 20/30/40/50/60/70/80/90/100/110/120mm | 125x125mm | Ø14mm JEOL stub |
EM-Tec versatile vice clamps are available with standard pin stub, with M4 threaded hole and with a 14mm JEOL stub for JEOL stage adapters with 14mm connection.
Download our Technical Support Bulletin: TSB 12-000203 EM-Tec versatile vise clamp sample holders
Ordering information:
-
V80 versatile vice clamp sample holder for up to 80mm- pin
EM-Tec V80 versatile vice clamp sample holder for up to 80mm – pin (each)
£156.24 Add to basket -
V120 versatile vice clamp sample holder for up to 120mm- pin
EM-Tec V120 versatile vice clamp sample holder for up to 120mm – pin (each)
£174.67 Add to basket -
V80 versatile vice clamp sample holder for up to 80mm – M4
EM-Tec V80 versatile vice clamp sample holder for up to 80mm – M4 (each)
£153.60 Add to basket -
V120 versatile vice clamp sample holder for up to 120mm – M4
EM-Tec V120 versatile vice clamp sample holder for up to 120mm – M4 (each)
£171.16 Add to basket -
Versatile vice clamp holder for up to 80mm, Ø14mm JEOL stub
EM-Tec V80 versatile vice clamp sample holder for up to 80mm, Ø14mm – JEOL stub (each)
£156.24 Add to basket -
Versatile vice clamp holder for up to 120mm, Ø14mm JEOL stub
EM-Tec V120 versatile, vice clamp sample holder for up to 120mm, Ø14mm – JEOL stub (each)
£174.67 Add to basket
