Hitachi M4 SEM specimen stubs and mounts

Micro to Nano’s comprehensive selection of Hitachi M4 SEM specimen stubs include sizes from 15mm up to 100mm in diameter to support virtually all applications.

Hitachi M4 stubs have an M4 threaded hole in the base and are made from high quality vacuum grade aluminium. All stubs are manufactured in line with original Hitachi specifications and are fully compatible with standard Hitachi specimen stub holders and stage adaptors.

Hitachi M4 SEM specimen stubs:

  • Hitachi cylindrical stubs with standard (flat) tops.
  • Hitachi angled stubs designed to quickly image specimens at a pre-tilt angle of 45° or 90° –  with or without using tilt on the SEM stage
  • Hitachi stub swivel mount which can be tilted by up to 90° in both directions
  • Hitachi dish cylinder stubs allow preparation of liquids directly onto the stub with the dish design preventing fluids from dripping from the stub.
  • Hitachi stub extenders offer quick adjustment of height to bring specimens closer to the pole piece
  • Hitachi pin-type stub with M6 threaded pins fits directly into Hitachi stage adaptors – useful to reduce height of tall specimens or for use with airlock system

If you need a Hitachi specimen stub which is not offered here then please contact us. We can manufacture custom stubs – or often suggest a solution using standard stubs.

Ø15 x 6mm x M4
Hitachi stubs

Ø15 x 10mm x M4
Hitachi stubs

Ø25 x 6mm x M4
Hitachi stubs

Ø25 x 10mm x M4
Hitachi stubs

Ø32 x 6mm x M4
Hitachi stubs

Ø32 x 10mm x M4
Hitachi stubs

Ø50 x 6mm x M4
Hitachi stubs

Ø63 x 6 mm x M4
Hitachi stubs

Ø100 x 4.5mm x M4
Hitachi stubs

Ø15 x 10 mm x M4
Dish-type Hitachi stubs

Ø15 x 10 mm x M4
Hitachi stub extender



Ø25 x 13.5mm x M46
Pin-type Hitachi M6 stub

Ø15 x 10mm x M4
45° Hitachi stubs

Ø15 x 10mm x M4
45°/90° Hitachi stubs

Ø25 x 16mm x M4
45° Hitachi stubs

Ø25 x 16mm x M4
45° Hitachi stubs

Ø25 x 8mm x M4
2 x 45°/90° Hitachi stubs

Ø32 x 12mm x M4
45°/90° Hitachi stubs

Ø32 x 12mm x M4
2 x 90° Hitachi stubs

HS15 Hitachi stub swivel mount

11 x 5.5 x 4mm Type 1
Hitachi In-lens stub 1

11 x 5.5 x 4mm Type 2
Hitachi In-lens stub 2

11 x 5.5 x 4mm Type 3
Hitachi In-lens stub 3

11 x 5.5 x 4mm Type 4
Hitachi In-lens stub 4

Ordering information:

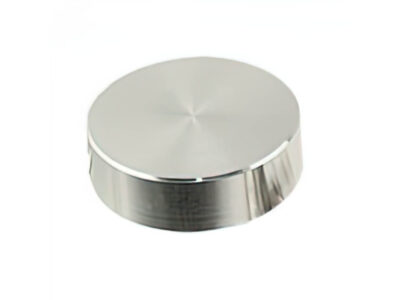

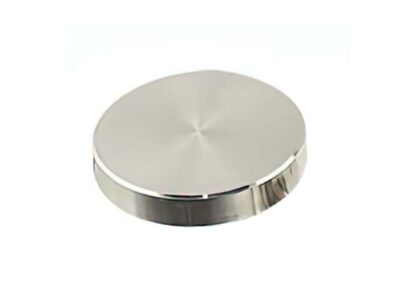

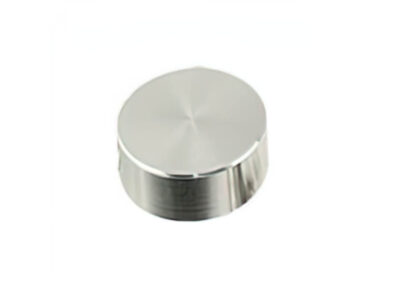

Hitachi 15mm cylinder stubs, standard with M4

Hitachi stubs use an M4 threaded hole in the base of the stubs.  Hitachi M4 SEM specimen stubs are made from vacuum grade aluminium. They are manufactured according to the original Hitachi specifications and are fully compatible with the standard Hitachi sample stub holders and stage adapters.

Hitachi 25mm cylinder stubs, standard with M4

Hitachi stubs use an M4 threaded hole in the base of the stubs.  Hitachi M4 SEM specimen stubs are made from vacuum grade aluminium. They are manufactured according to the original Hitachi specifications and are fully compatible with the standard Hitachi sample stub holders and stage adapters.

Hitachi 32mm cylinder stubs, standard with M4

Hitachi stubs use an M4 threaded hole in the base of the stubs.  Hitachi M4 SEM specimen stubs are made from vacuum grade aluminium. They are manufactured according to the original Hitachi specifications and are fully compatible with the standard Hitachi sample stub holders and stage adapters.

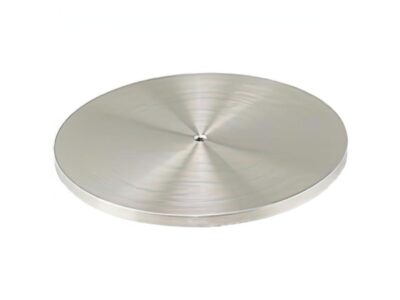

Hitachi large cylinder stubs, standard with M4

Hitachi stubs use an M4 threaded hole in the base of the stubs.  Hitachi M4 SEM specimen stubs are made from vacuum grade aluminium. They are manufactured according to the original Hitachi specifications and are fully compatible with the standard Hitachi sample stub holders and stage adapters.

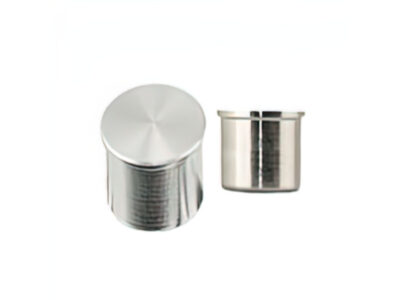

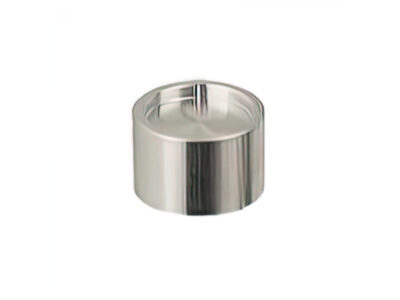

Hitachi cylinder stubs, dish style with M4

Hitachi Dish cylinder stubs in 15mm diameter for sample preparation of solutions or fluids directly onto the stub. The dish design prevents fluids from dripping from the stub. Samples can be dried directly onto the SEM stub.

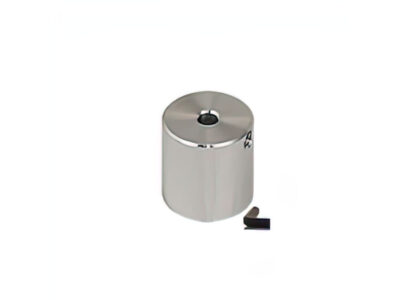

Hitachi stub extender with M4

Hitachi stub extenders allow quick adjustment of height and bring samples closer to the pole piece.

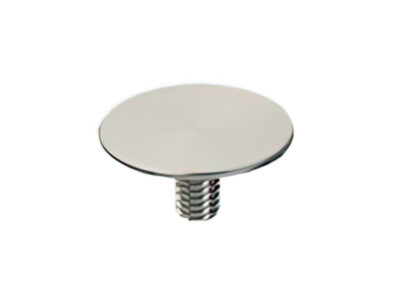

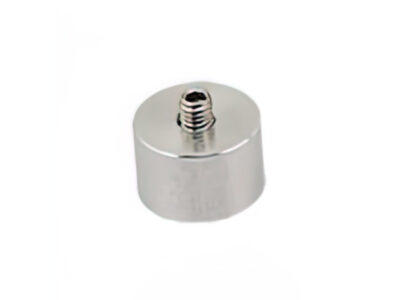

Hitachi pin type stub with M6 threaded pin

This Hitachi pin-type stub with M6 threaded flat pin stub fits directly into an Hitachi stage adaptor with M6 threaded holes. Useful for reducing the height of tall samples or for use in airlock systems.

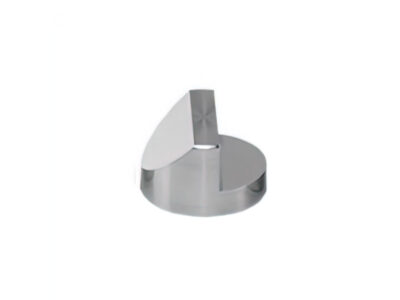

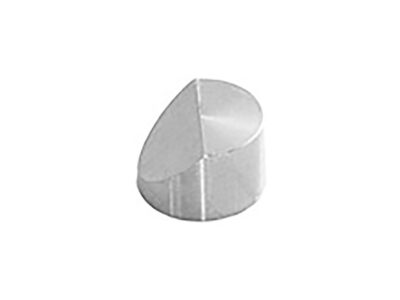

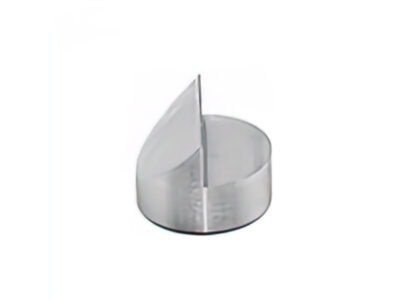

Hitachi angled stubs – 15mm

Angled Hitachi stubs allow easy and convenient imaging of  specimens at 45° or 90° pre-tilt without having to use the tilt of the sample stage.

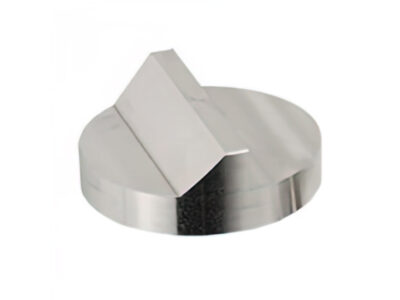

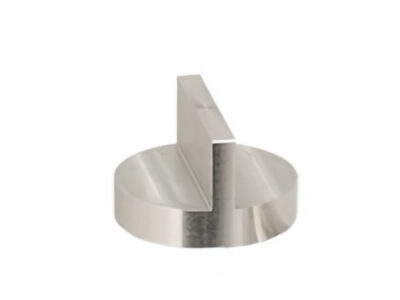

Hitachi angled stubs – 25mm

Angled Hitachi stubs to quickly image specimens at 45° or 90° pre-tilt without using the tilt of the sample stage

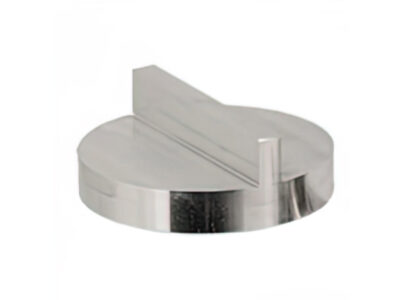

Hitachi angled stubs – 32mm

Angled Hitachi stubs to quickly image specimens at 45° or 90° pre-tilt without using the tilt of the sample stage

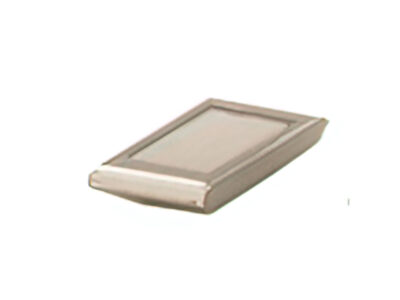

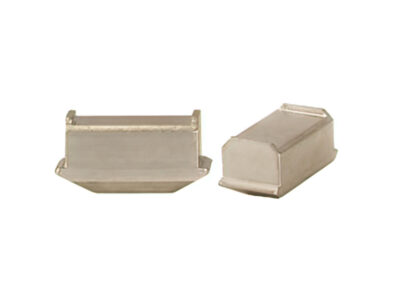

Hitachi SU9000, S-5500, S-5200, S-5000 in-lens specimen mounts

Special specimen mounts for the Hitachi in-lens FE-SEMs. Compatible with the Hitachi SU9000, Hitachi S-5500, Hitachi S-5200 and Hitachi S-5000 in-lens FE-SEMs. Available in four different types to accommodate  varying specimen heights. The maximum specimen size is normally 5 x 9mm, except with mount type 3. Manufactured from vacuum grade aluminium to the exact original specifications.

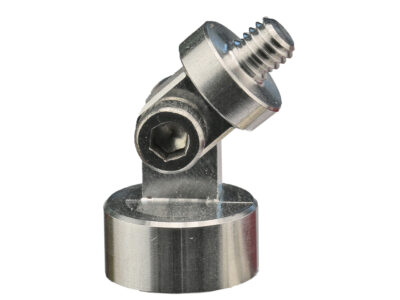

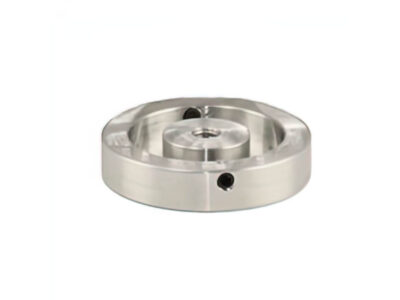

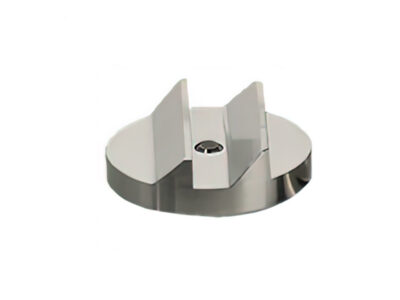

Hitachi swivel specimen mounts
