JEOL SEM specimen stubs

There are four JEOL SEM specimen stub styles to choose from:

• JEOL cylinder-style specimen stubs (standard)
• JEOL angled stubs for specimen observation at 45º or 90º - with or without using tilt on the SEM stage
• JEOL stub swivel mount with a 15mm diameter -  can be tilted 90° in both directions
• JEOL dish-style cylinder 12.2mm diameter SEM stubs, for preparation of liquids directly onto the stub. The dish design prevents liquid from dripping from the stub

If you need a JEOL specimen stub which is not offered here then please contact us. We can manufacture custom stubs - or often suggest a solution using standard stubs.

---

Ø9.5 x 5mm JEOL stubs	Ø9.5 x 9.5mm JEOL stubs	Ø12.2 x 5mm JEOL stubs	Ø12.2 x 10mm JEOL stubs
Ø25 x 5mm JEOL stubs	Ø25 x 8mm JEOL stubs	Ø25 x 10mm JEOL stubs	Ø25 x 12.7mm JEOL stubs
Ø25 x 16mm JEOL stubs	Ø32 x 5mm JEOL stubs	Ø32 x 10mm JEOL stubs	Ø50 x 5mm JEOL stubs
Ø50 x 10mm JEOL stubs	Dish type Ø12.2 x 10mm JEOL stubs	45° Ø9.5 x 9.5mm JEOL stubs	45°/90° Ø9.5 x 9.5mm JEOL stubs
45° Ø12.2 x 10mm JEOL stubs	45°/90° Ø12.2 x 10mm JEOL stubs	45° Ø25 x 16mm JEOL stubs	45°/90° Ø25 x 16mm JEOL stubs
Double 90° Ø25 x 16mm JEOL stubs	45°/90° Ø32 x 12mm JEOL stubs	Double 90° Ø32 x 12mm JEOL stubs	JS15 JEOL stub swivel mount Ø12.2 x 25mm

---

Ordering Information: standard JEOL cylinder-style SEM stubs and mounts

JEOL 9.5 x 5mm diameter cylinder-style, SEM specimen stub, aluminium

Back to top

---

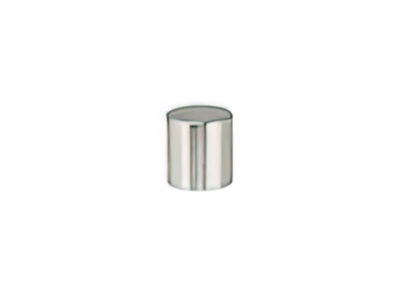

JEOL 9.5 x 9.5mm diameter cylinder-style SEM specimen stub, aluminium

Back to top

---

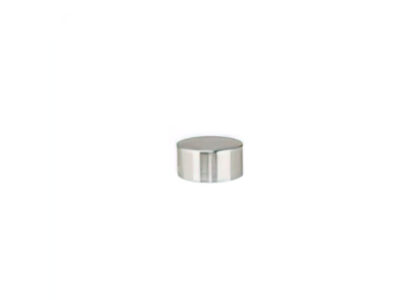

JEOL 12.2 x 5mm diameter cylinder-style SEM specimen stub, aluminium

Back to top

---

JEOL 12.2 x 10mm diameter cylinder-style SEM specimen stub, aluminium

Back to top

---

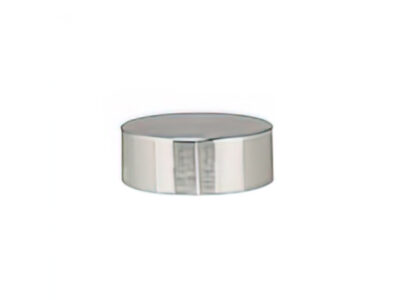

JEOL 25 x 5mm diameter cylinder-style SEM specimen stub, aluminium

Back top top

---

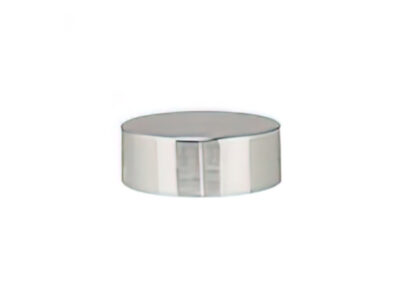

JEOL 25 x 8mm diameter cylinder-style SEM specimen stub, aluminium

Back to top

---

JEOL 25 x 10mm diameter cylinder-style SEM specimen stub, aluminium

Back to top

---

JEOL 25 x 12.7mm diameter cylinder-style SEM specimen stub, aluminium

Back to top

---

JEOL 25 x 16mm diameter cylinder-style SEM specimen stub, aluminium

Back to top

---

JEOL 32 x 5mm diameter cylinder-style SEM specimen stub, aluminium

Back to top

---

JEOL 32 x 10mm diameter cylinder-style SEM specimen stub, aluminium

Back to top

---

JEOL 32 x 20mm diameter cylinder-style SEM specimen stub, aluminium

Back to top

---

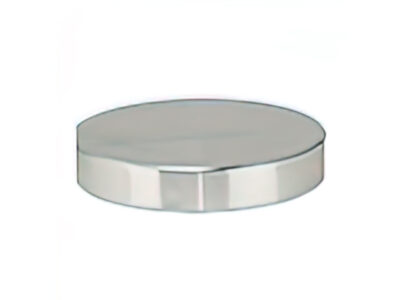

JEOL 50 x 5mm diameter cylinder-style SEM specimen stub, aluminium

Back to top

---

JEOL 50 x 10mm diameter cylinder-style SEM specimen stub, aluminium

Back to top

---

Ordering Information: angled JEOL SEM stubs and mounts

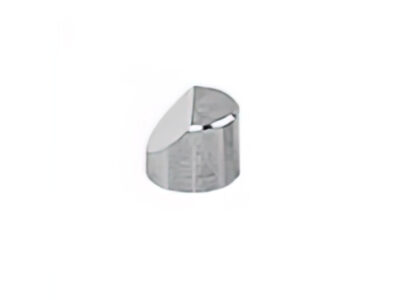

JEOL 9.5 x 9.5mm diameter angled SEM specimen stub, 45 degree, aluminium

Back to top

---

JEOL 9.5 x 9.5mm diameter angled SEM specimen stub, 45 and 90 degree, aluminium

Back to top

---

JEOL 12.2 x 10mm diameter angled SEM specimen stub, 45 degree, aluminium

Back to top

---

JEOL 12.2 x 10mm diameter angled SEM specimen stub, 45 and 90 degree, aluminium

Back to top

---

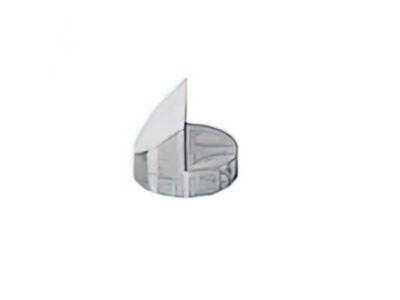

JEOL 25 x 16mm diameter angled SEM specimen stub, 45 degree, aluminium

Back to top

---

JEOL 25 x 16mm diameter angled SEM specimen stub, 45 and 90 degree, aluminium

Back to top

---

JEOL 25 x 16m diameter angled SEM specimen stub, with double 90 degree, aluminium

Back to top

---

JEOL 32 x 12mm diameter angled SEM specimen stub, 45 and 90 degree, aluminium

Back to top

---

JEOL 32 x 12mm diameter angled SEM specimen stub, with double 90 degree aluminium

Back to top

---

JEOL specimen stub swivel mount, 12.2 x 25mm diameter, +/- 90 degree, aluminium

Back to top

---

Ordering Information: JEOL dish SEM stubs and mounts

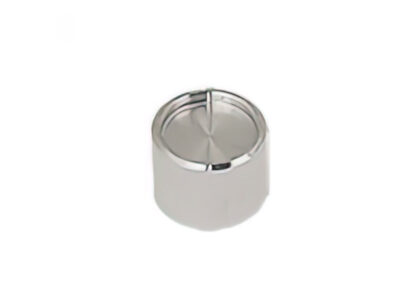

JEOL dish-style specimen stub, 12.2 x 10 diameter with 1.5mm dish depth, aluminium
